Section 3: Product Overview

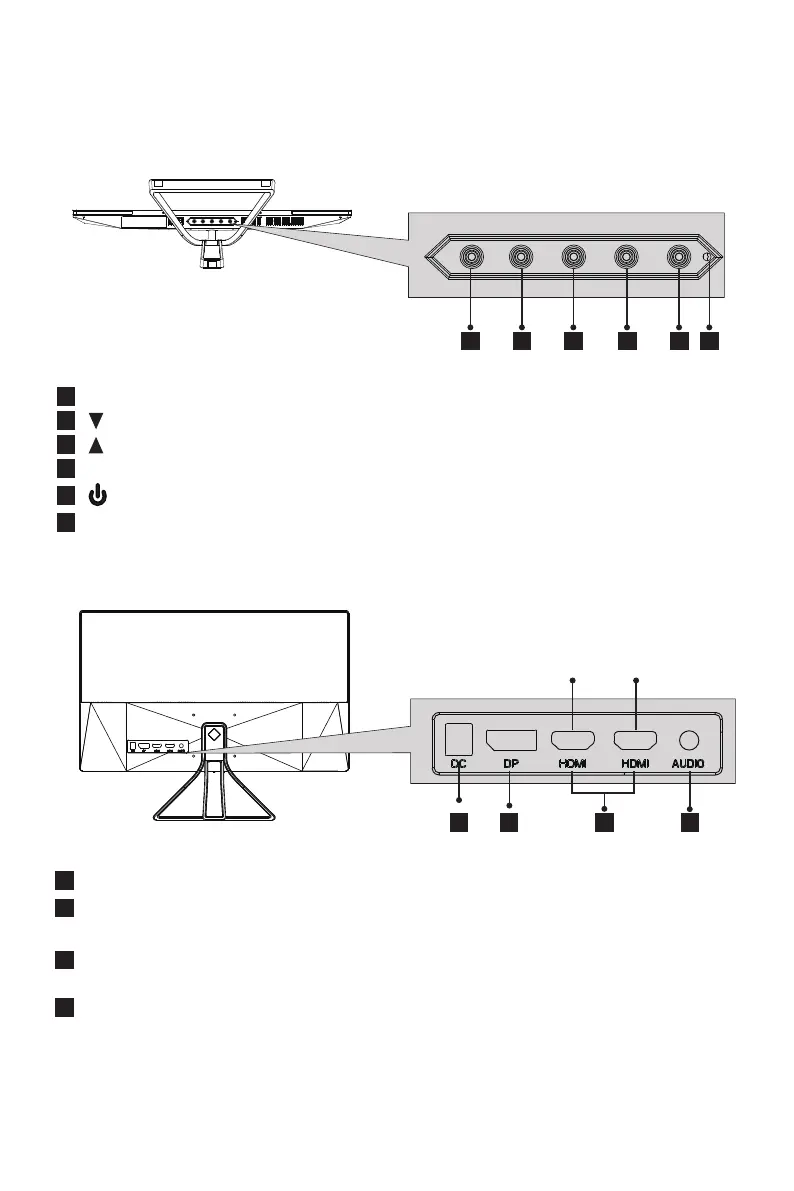

3.1 – Monitor Buttons
7
DC IN Power Connector: Insert the power cable to supply power to the monitor.
8
DisplayPort (DP) 1.2 Connector: Insert one end of the DP cable into the
computer’s DP output and connect the other end to the monitor’s DP port.
9
HDMI 1.4 Connectors: Insert one end of the HDMI cable into the
computer’s HDMI output and connect the other end to the monitor’s HDMI port.
10
Audio Output: Insert one end of the audio cable into an external audio
source, e.g., speakers or headphones, to pass audio signals through the
monitor.
9 7 10 8
2 3 4 5 6 1
1
M Menu Button
: Press to display the OSD menu or enter sub-menus.
2
Down Button: Press to move down in the menus.
3
Up Button: Press to move up in the menus.
4
E Exit Button: Press to exit.
5
Power Button: Press to turn the monitor on/off.
6
LED Indicator: Changes colors to indicate status. Refer to Section 8.
3.2 – Monitor Ports
HDMI 1HDMI 2
