Section 3: Product Overview

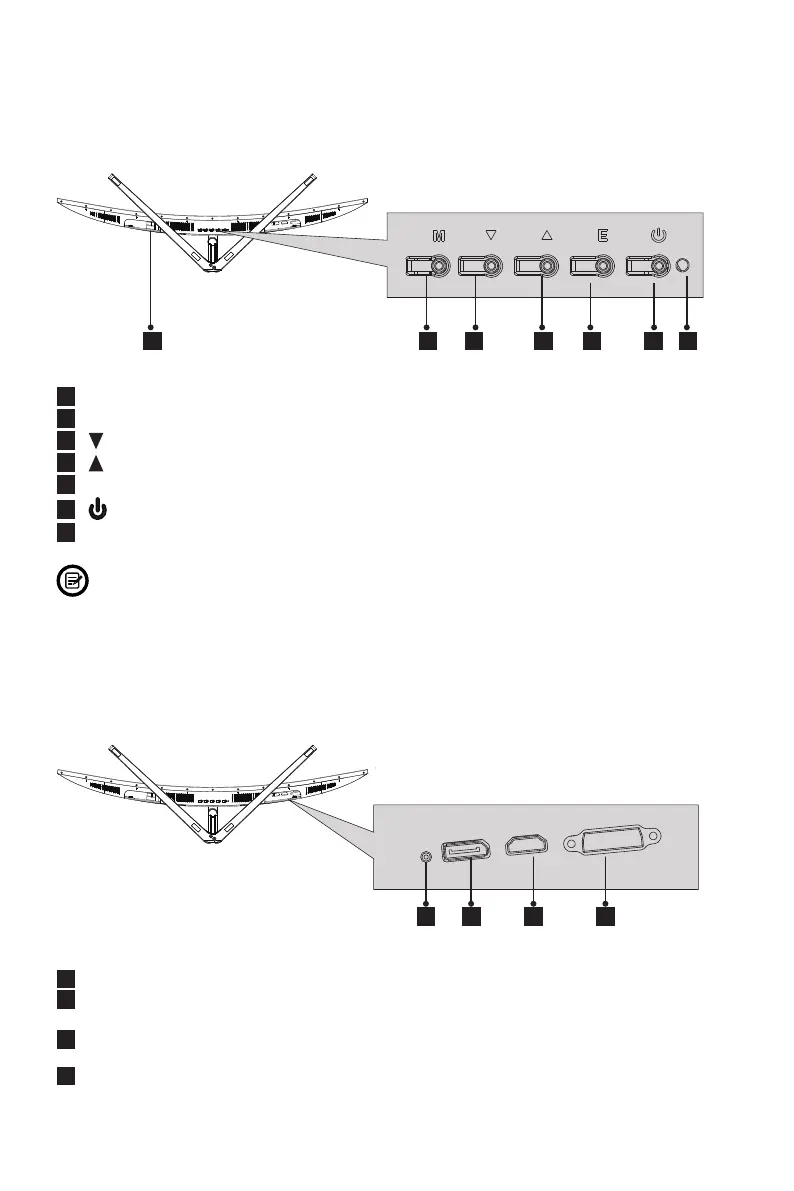

3.1 – Monitor Buttons
8
Audio Connector: Plug in your earphones to receive sound.
9
DP Connector: Insert one end of the DP cable into the computer’s DP output and
connect the other end to the monitor’s DP port.
10
HDMI Connector: Insert one end of the HDMI cable into the computer’s HDMI output
and connect the other end to the monitor’s HDMI port.
11
DVI Connector: Insert one end of the DVI cable into the computer’s DVI output and
connect the other end to the monitor’s DVI port.
8 9 1110
1 3 4 5 6 7 2
1
Power Connector
: Insert the power cable to supply power to the monitor.
2
M Menu Button
: Press to display the OSD menu or enter sub-menus.
3
Down Button
: Press to move down in the menus.
4
Up Button
: Press to move up in the menus.
5
E Exit Button
:
Press to exit.
6
Power Button
: Press to turn the monitor on/off.
7
LED Indicator: Changes colors to indicate status. Refer to Section 8.
The E button can also be used to switch between limit and full color gamuts when a
compatible graphics card and either HDMI or DP connections are in use.
