Viotek NBV24CB2 User Manual

6

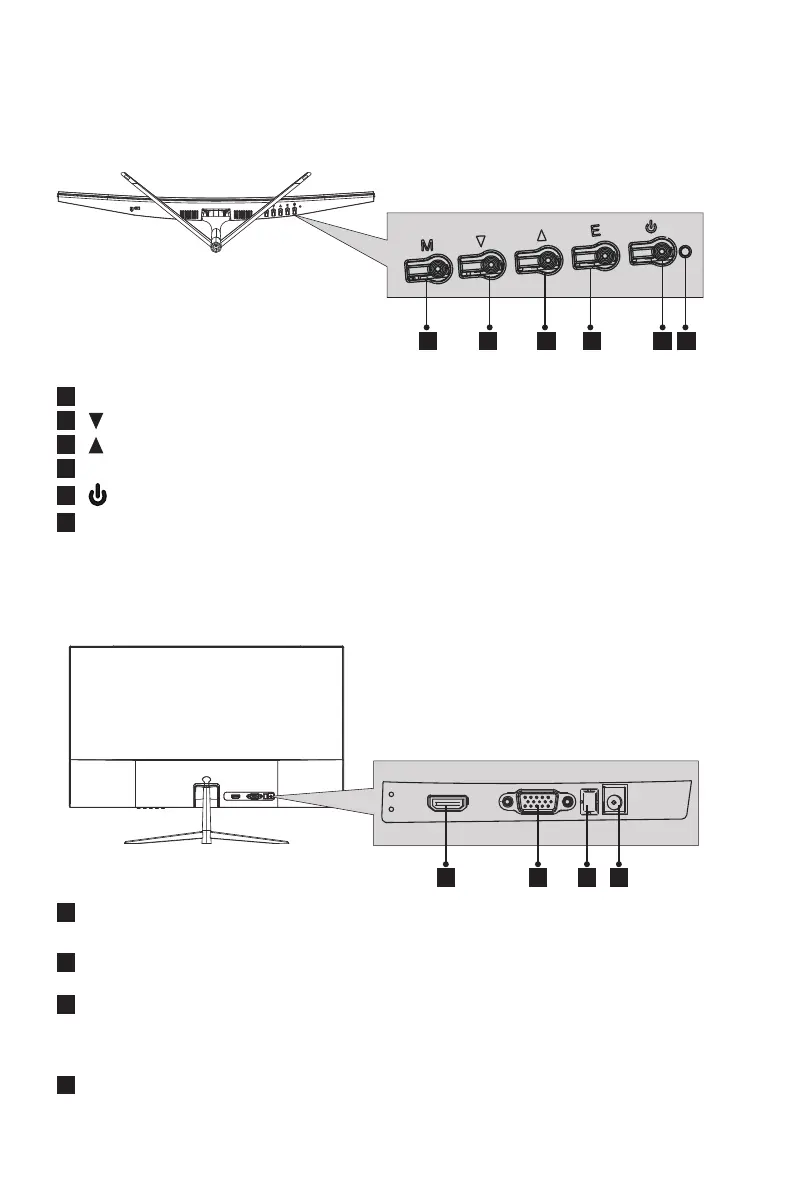

Section 3: Product Overview
3.1 – Monitor Buttons
7
HDMI Connector: Insert one end of the HDMI cable into the computer’s
HDMI output and connect the other end to the monitor’s HDMI port.
8
VGA Connector: Insert one end of the VGA cable into the computer’s VGA
output and connect the other end to the monitor’s VGA port.
9
Audio Output: Insert one end of the audio cable into an external audio
source, e.g., speakers or headphones, to pass audio signals through the
monitor.
10
DC 12V Power Connector: Insert the power cable to supply power to the
monitor.
7 8 9 10
2 3 4 5 6 1
1
M Menu Button
: Press to display the OSD menu or enter sub-menus.
2
Down Button
: Press to move down in the menus.
3
Up Button
: Press to move up in the menus.
4
E Exit Button
: Press to exit.
5
Power Button
: Press to turn the monitor on/off.
6
LED Indicator: Changes colors to indicate status. Refer to Section 7.
3.2 – Monitor Ports

Viotek NBV24CB2 Specifications

General

Screen Type	led
Wall Mount	75mm x 75mm
OS Compatibility	mac, windows
Color	black
Tiltable	yes
Webcam	no
Screen Size	24 inches
Panel Type	va
Aspect Ratio	16:9
Resolution	1920 x 1080
Native Resolution	1920 x 1080
Refresh Rate	75hz
Horizontal Viewing Angle	178 degrees
Vertical Viewing Angle	178 degrees
Response Time	8 milliseconds
Brightness	250 candela per square meter
Contrast Ratio	1, 000, 000:1
Synchronization	freesync (amd adaptive sync)
HDR	no
VGA Ports	1
Interface Connectors	1 x vga
HDMI Ports	1
Power Saving Mode	0.5 watts
Power Consumption	29 watts
Width with Stand	21.2 inches
Depth without Stand	8.2 inches
Height without Stand	16.3 inches
Net Weight without Stand	6.6 pounds
Built-In Speakers	no
