Section 3: Product Overview

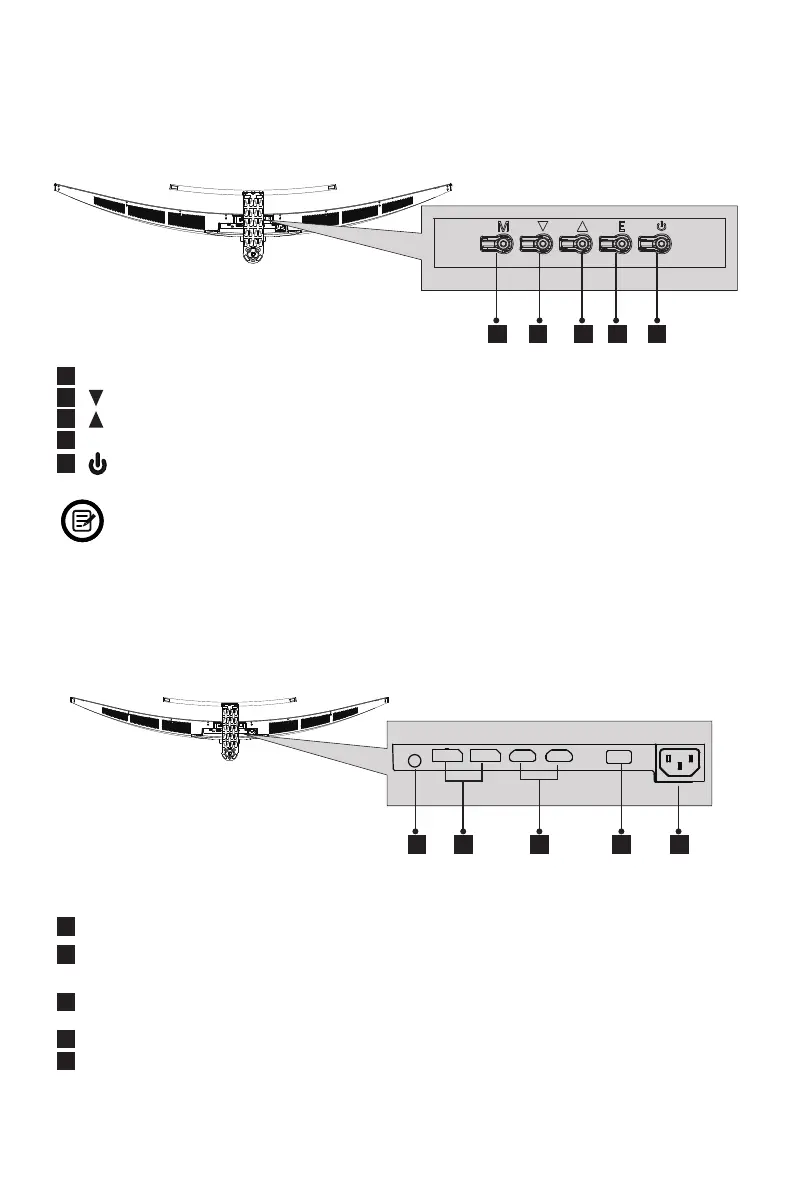

3.1 – Monitor Buttons
6
Audio Output
:
Insert the audio cable for output of audio signals.
7
DP Connectors
:
Insert one end of the DP cable into the computer’s DP output and con-
nect the other end to the monitor’s DP port.
8
HDMI Connectors: Insert one end of the HDMI cable into the computer’s HDMI output
and connect the other end to the monitor’s HDMI port.
9
USB 2.0 Connector: For charging or rmware updates only.
10
Power Connector: Insert the power cable to supply power to the monitor.
1
M Menu Button
: Press to display the OSD menu or enter sub-menus.
2
Down Button
: Press to move down in the menus.
3
Up Button
: Press to move up in the menus.
4
E Exit Button
:
Press to exit.
5
Power Button
: Press to turn the monitor on/off.
The E button can also be used to switch between “HDMI 4K” and “HDMI 5K”
when connecting via HDMI; however, this function is not available when using the
DisplayPort to connect.
3.2 – Monitor Ports
2 3 4 5 1
6 7 8 9 10
