Manual VIPA System SLIO Chapter 4 Analog Input
HB300E - SM - Rev. 09/38 4-13
For wires with a cross section of 0.08mm
2
up to 2.5mm
2
.
2 6
3 7
4 8
1 5
1
2
3
4
5
6
7
8
DC24V
0V
A A
AI
1
2
3
4
5
6
7
8
01

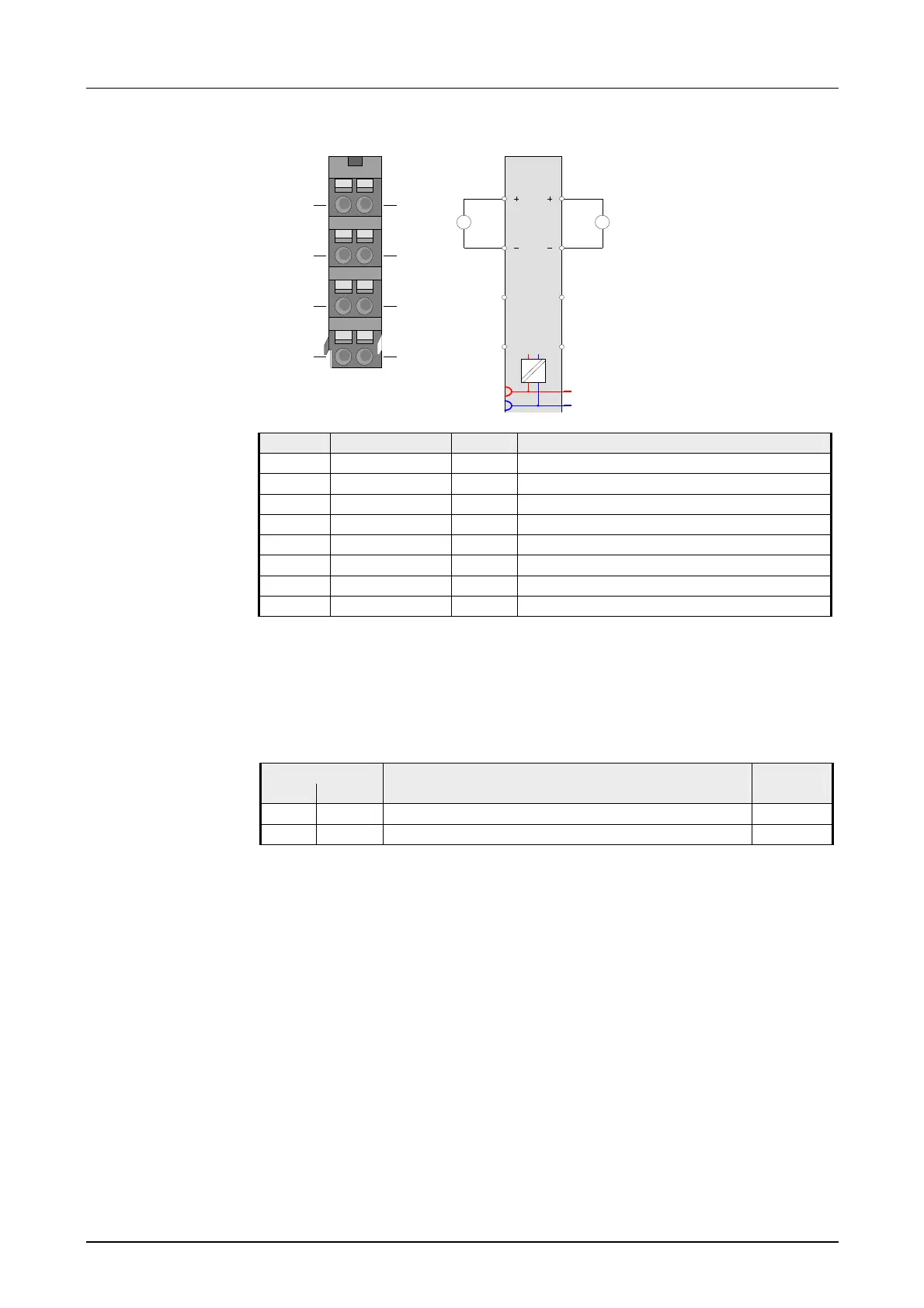

Pos. Function Type Description
1 +AI 0 I + Channel 0
2 -AI 0 I Ground Channel 0
3 --- --- not connected
4 --- --- not connected
5 +AI 1 I + Channel 1
6 -AI 1 I Ground Channel 1
7 --- --- not connected
8 --- --- not connected
I: Input
The parameter data may be accessed during runtime with the following
record sets:
Record set
No. Byte
Meaning Default
128 0 Function-number channel 0 31h
129 0 Function-number channel 1 31h
Pin assignment
Parameter data
