Chapter 4 Analog Input Manual VIPA System SLIO
4-22 HB300E - SM - Rev. 09/38
For wires with a cross section of 0.08mm
2
up to 2.5mm
2
.
2 6
3 7
4 8
1 5
1
2
3
4
5
6
7
8
DC24V
0V
A A
A
AI
1
2
3
4
5
6
7
8
01
23
A

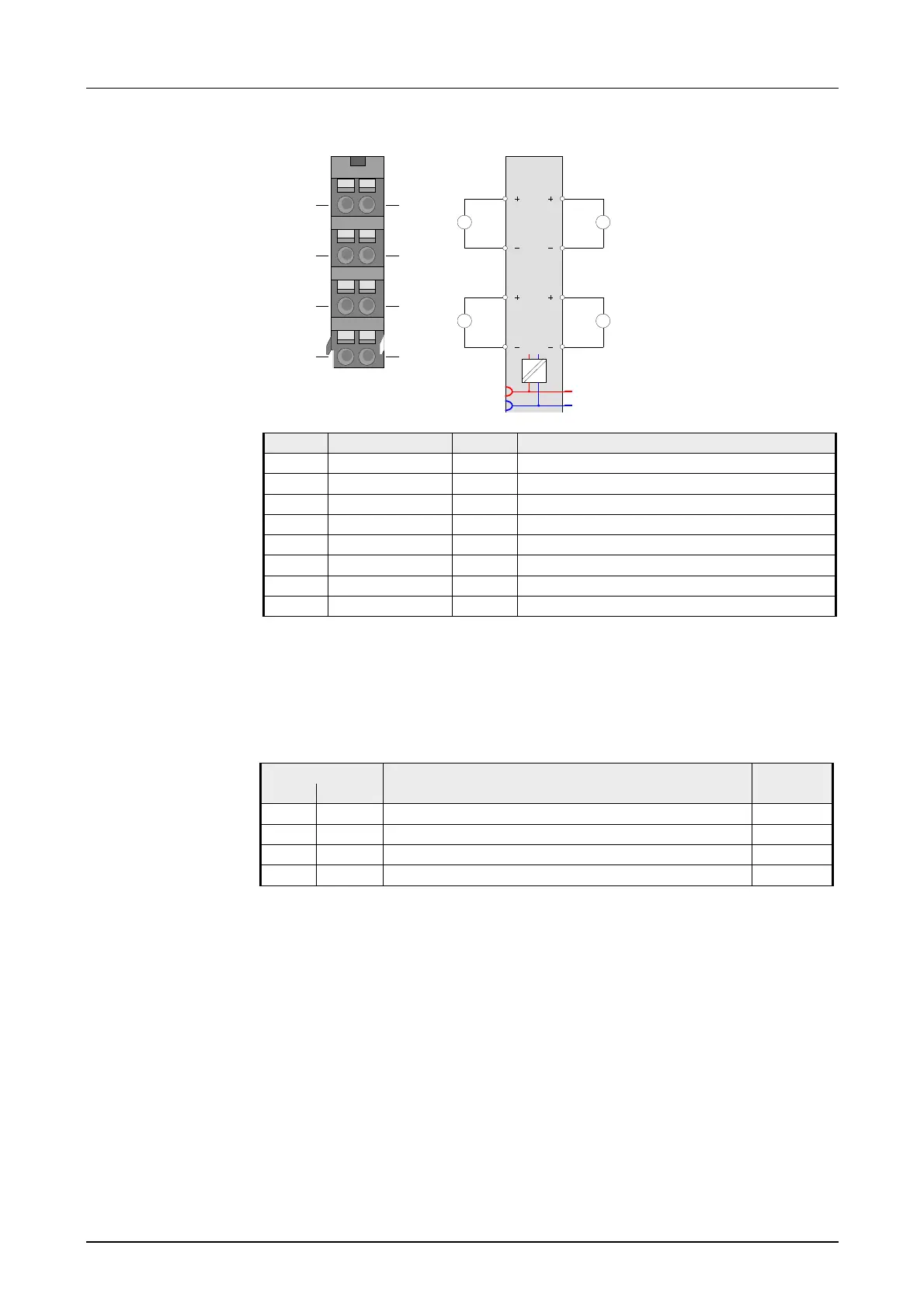

Pos. Function Type Description
1 +AI 0 I + Channel 0
2 -AI 0 I Ground Channel 0
3 +AI 2 I + Channel 2
4 -AI 2 I Ground Channel 2
5 +AI 1 I + Channel 1
6 -AI 1 I Ground Channel 1
7 +AI 3 I + Channel 3
8 -AI 3 I Ground Channel 3
I: Input
The parameter data may be accessed during runtime with the following
record sets:
Record set
No. Byte
Meaning Default
128 0 Function-number channel 0 31h
129 0 Function-number channel 1 31h
130 0 Function-number channel 2 31h
131 0 Function-number channel 3 31h
Pin assignment
Parameter data
