VIPA TP 610LC - Structure; Overview

2.3 Structure

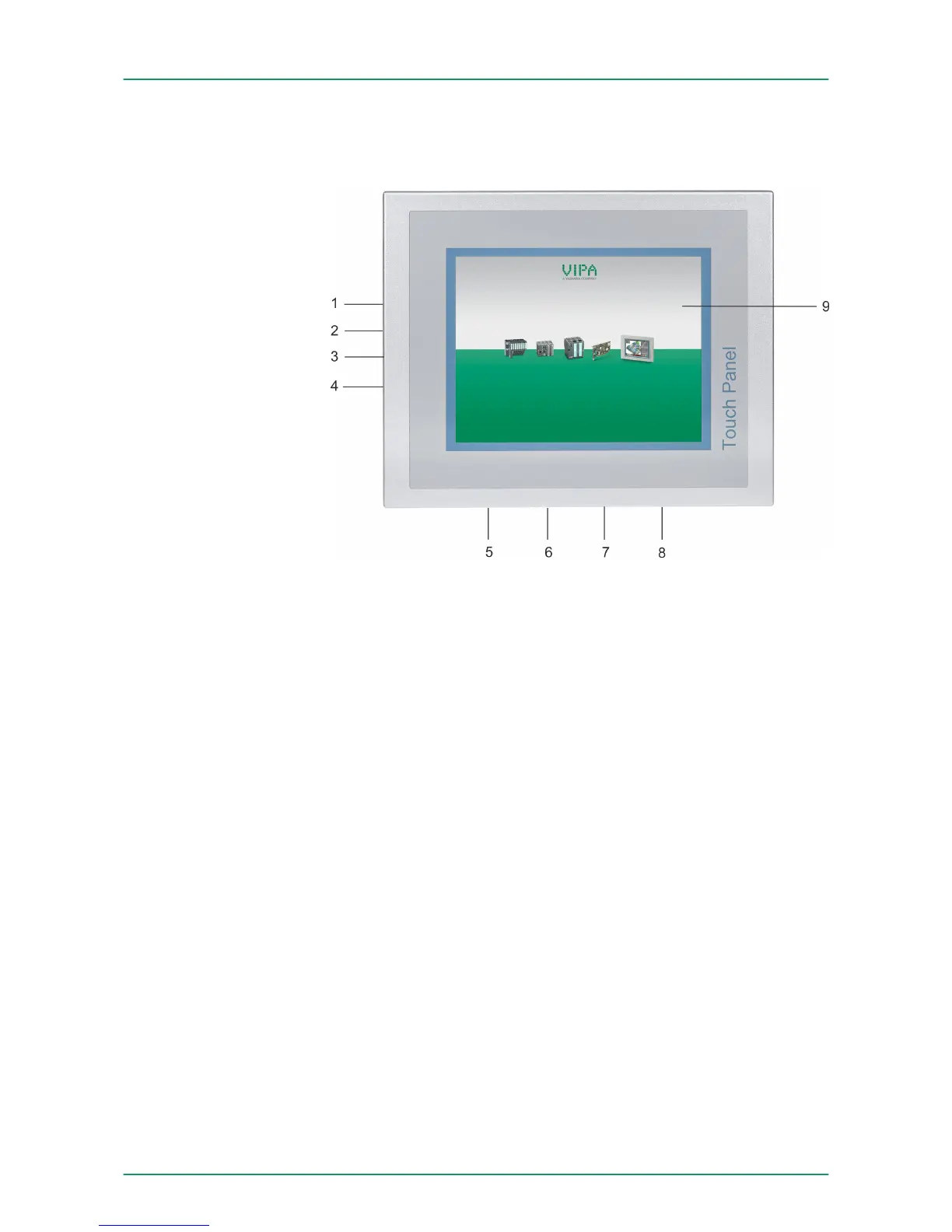

2.3.1 Overview
1 Slot for SD storage medium
2 "Host"-USB-A interface
3 RJ45 jack for Ethernet communication LAN 1
4 RJ45 jack for Ethernet communication LAN 2
5 RS232 interface COM 1
6 RS232/RS422/RS485 interface COM 2
7 MPI/PROFIBUS DP interface COM 3 (optional)
8 Slot for DC 24V voltage supply
9 Display with touch sensitive area (touch screen)
Front view
