Viper 4811V - Wiring Diagram

5
© 2015 Directed. All rights reserved.

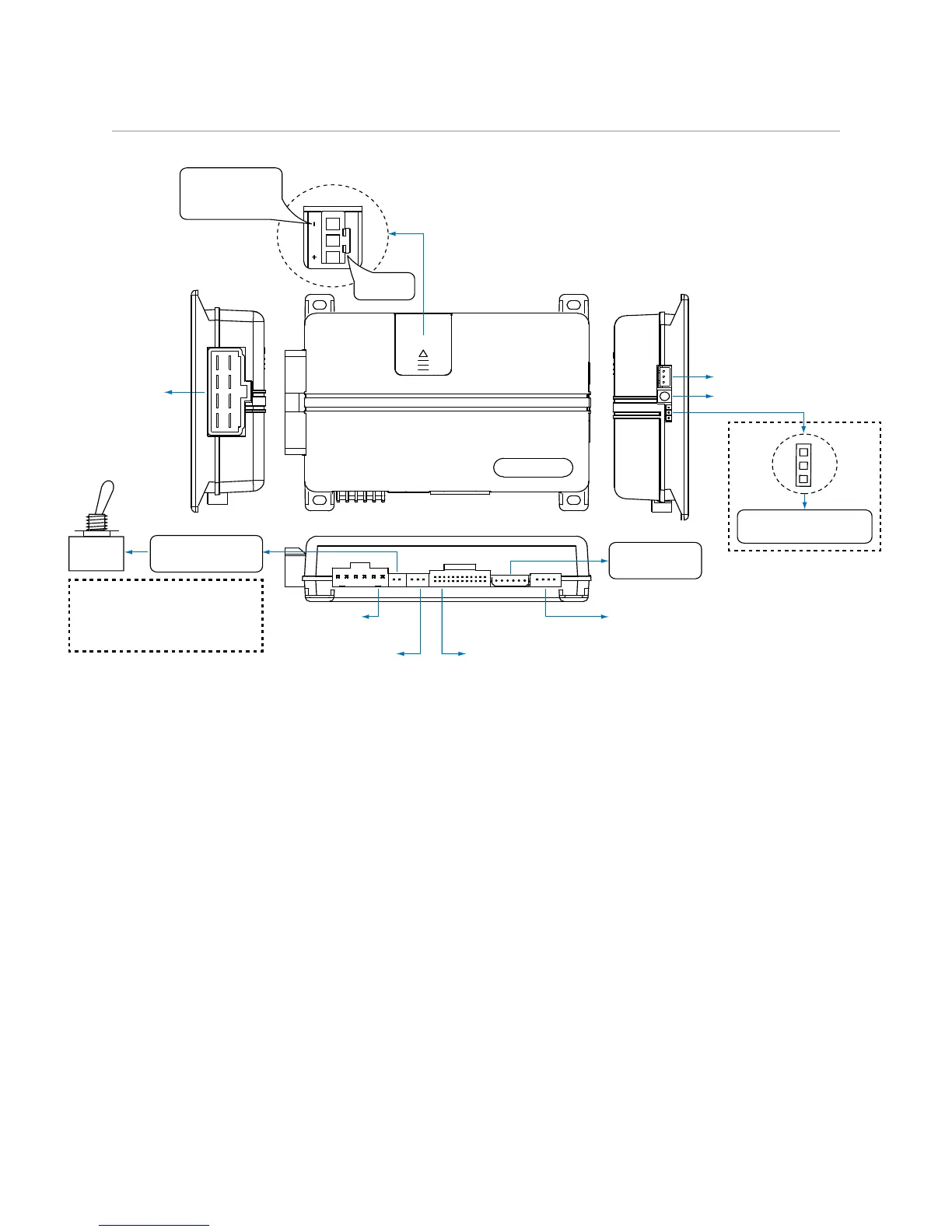

Wiring Diagram
D2D Port
(for external Directed
interface module)
ON
IMPORTANT!
Remote Start Shutoff
switch must be plugged in
and in the ON position
Thermistor/Temp Sensor
Bitwriter/Directed
SmartStart Port
Door Lock
3-pin Harness
Remote Start
8-pin Harness
Main 6-pin
Harness
(+) or (-) LIGHT
FLASH POLARITY
(10A (MAXIMUM)
FUSE JUMPER)
AUX/Shutdown
24-pin Harness
Remote Start
Shutoff Switch
+ -
(+) or (-) Horn Input
Polarity Jumper
RF/Control
Center Port
10A FUSE
MINI ATM
Note: Fuse is under the plastic cover and needs to
be installed for the appropriate light flash polarity.
