Viper 5601 - Primary Harness (H1) Wiring: Activation & Parking Lights; H1;10 Activation Input, H1;11 Parking Light Output

17
© 2008 Directed Electronics. All rights reserved.

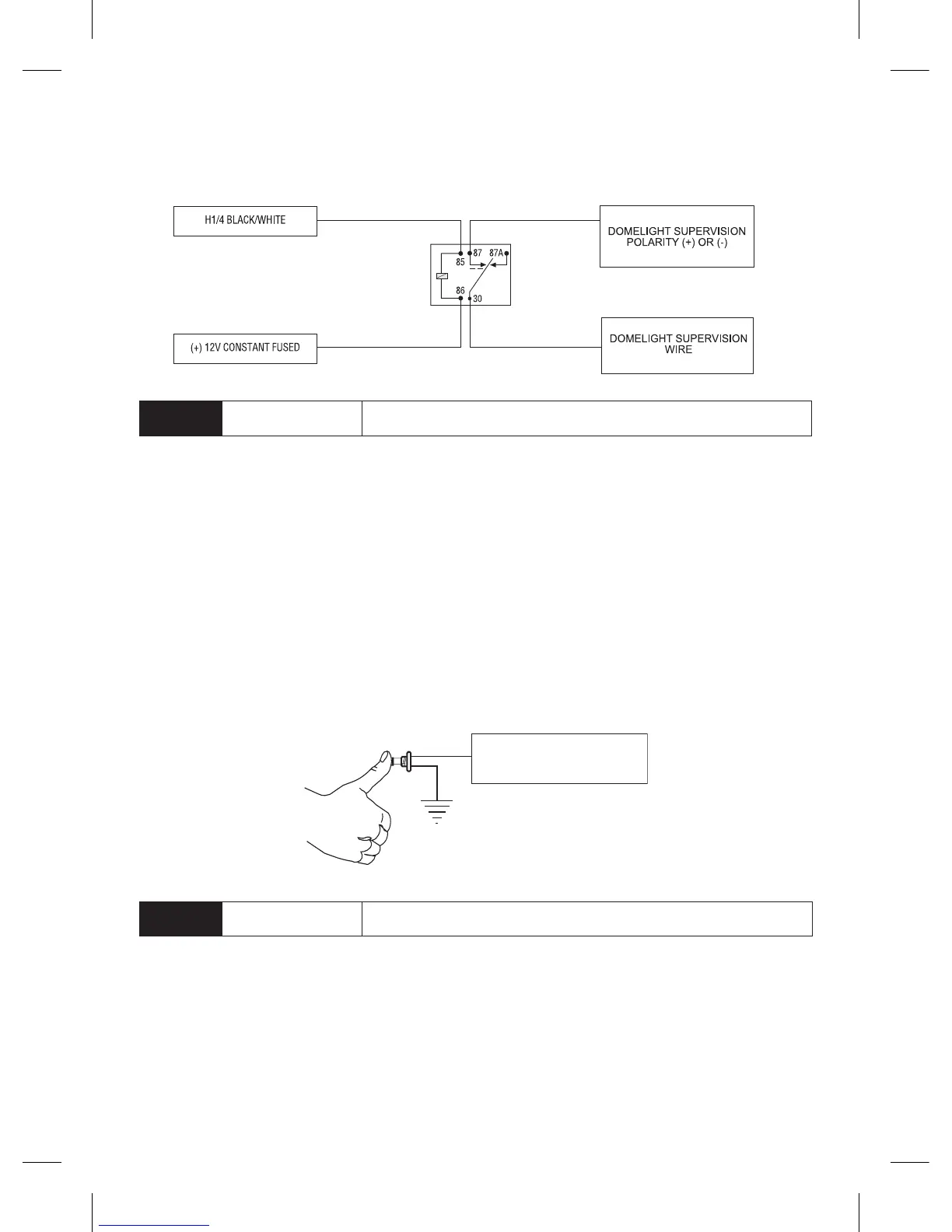

directly to the dome light circuit, as the output cannot support the current draw
of one or more light bulbs.
H1/10
WHITE/BLUE (-) REMOTE START/ TURBO TIMER ACTIVATION INPUT
This input comes from the factory set to 1 activation pulse. This means that it is
necessary to have a single ground pulse on the white/blue wire for the remote
start to activate or to deactivate.
The H1/10 wire can also be used to activate the Turbo Timer mode when the
car is running and this wire receives a ground.
Note: The number of activation inputs can be programmed to 1 or 2 pulses with
an optional momentary switch. This setting affects both the input wire and the
remote control when operating the remote starter.
To white/blue activation
input on system
H1/11
WHITE PARKING LIGHT OUTPUT
This wire should be connected to the parking light wire in the vehicle. See Set-
ting the light flash polarity section of this guide for polarity settings.
