H3/7
PINK/WHITE (+) IGNITION 2 FLEX RELAY OUTPUT
This wire is factory programmed as Ignition 2 and can be programmed as a
2nd accessory for 2nd starter.

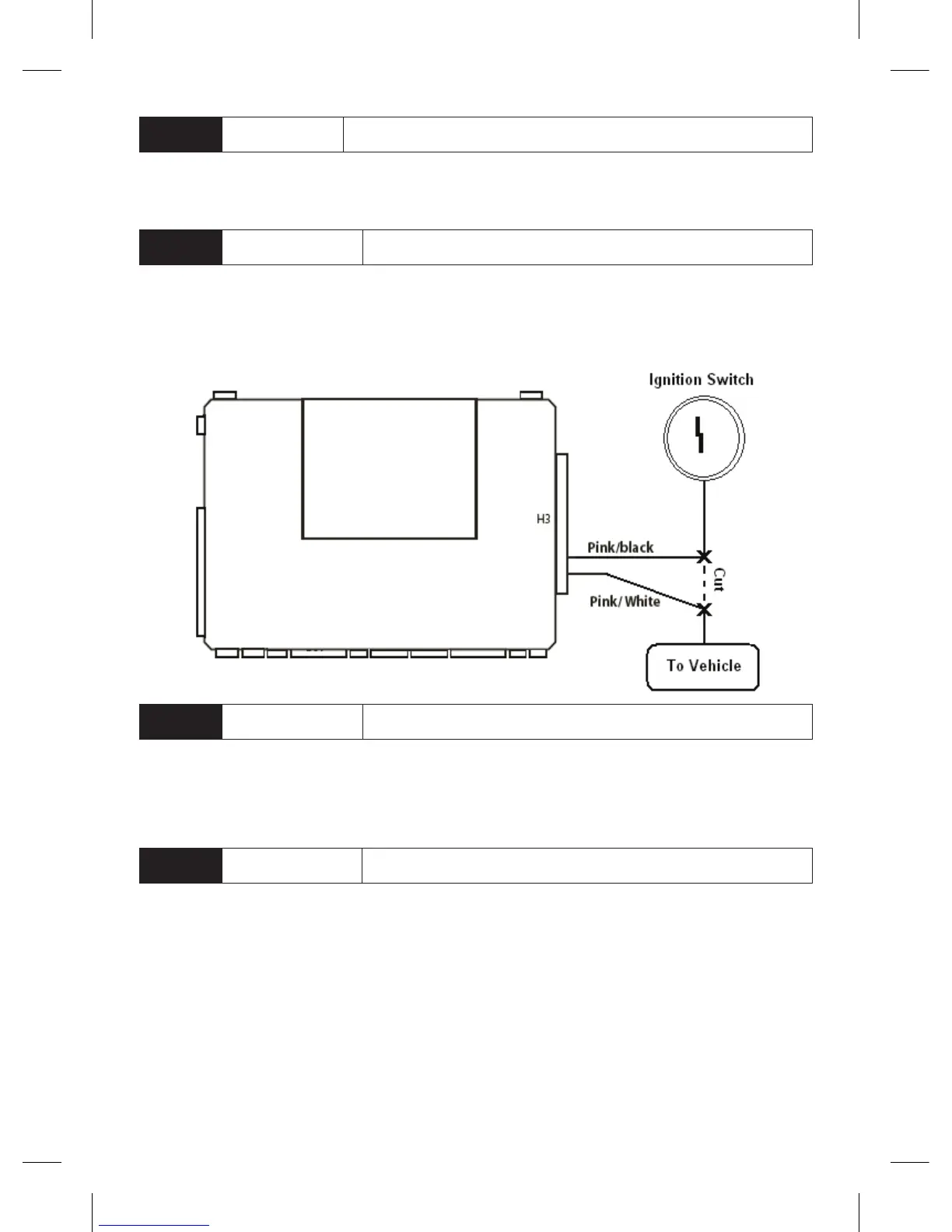

H3/8
PINK/BLACK 87a OF IGNITION 2 FLEX RELAY
This wire is used when an ignition switch isolation on the vehicle is necessary
This is common on Toyota and Nissan's which require the use of Tech Tip docu-
ment #1077. (See Menu #3, Feature #8, for programming options)
H3/9
RED/BLACK (+) (30A) FUSED ACCESSORY/STARTER RELAY INPUT
This wire is the polarity feed to the accessory and starter relays.
➤ Remote start input - 5-pin connector
1
BLACK/WHITE (-) NEUTRAL SAFETY SWITCH INPUT
Connect this wire to a ground source if installing this unit in an automatic trans-
mission vehicle. If this unit is being installed in a manual transmission vehicle then
connect it to the emergency brake wire. This input MUST rest at ground in order
for the remote start system to operate.
Important! Always perform the steps outlined in Safety Check section to verify
that the vehicle cannot be started in ANY drive gear and that the override switch
is functioning properly.
