WAIT-TO-START bulb in the dashboard. In most diesels the wire is negative
(ground turns on the bulb) and the GRAY/BLACK wire can be directly connected
to the wire in the vehicle. If the vehicle uses a positive wire (12V to turn on the
bulb) a relay must be used to change the polarity.
The system has a programmable onboard timer (See Feature menu #3, feature
#9) so it is not mandatory to connect to the wait-to-start wire in the vehicle.

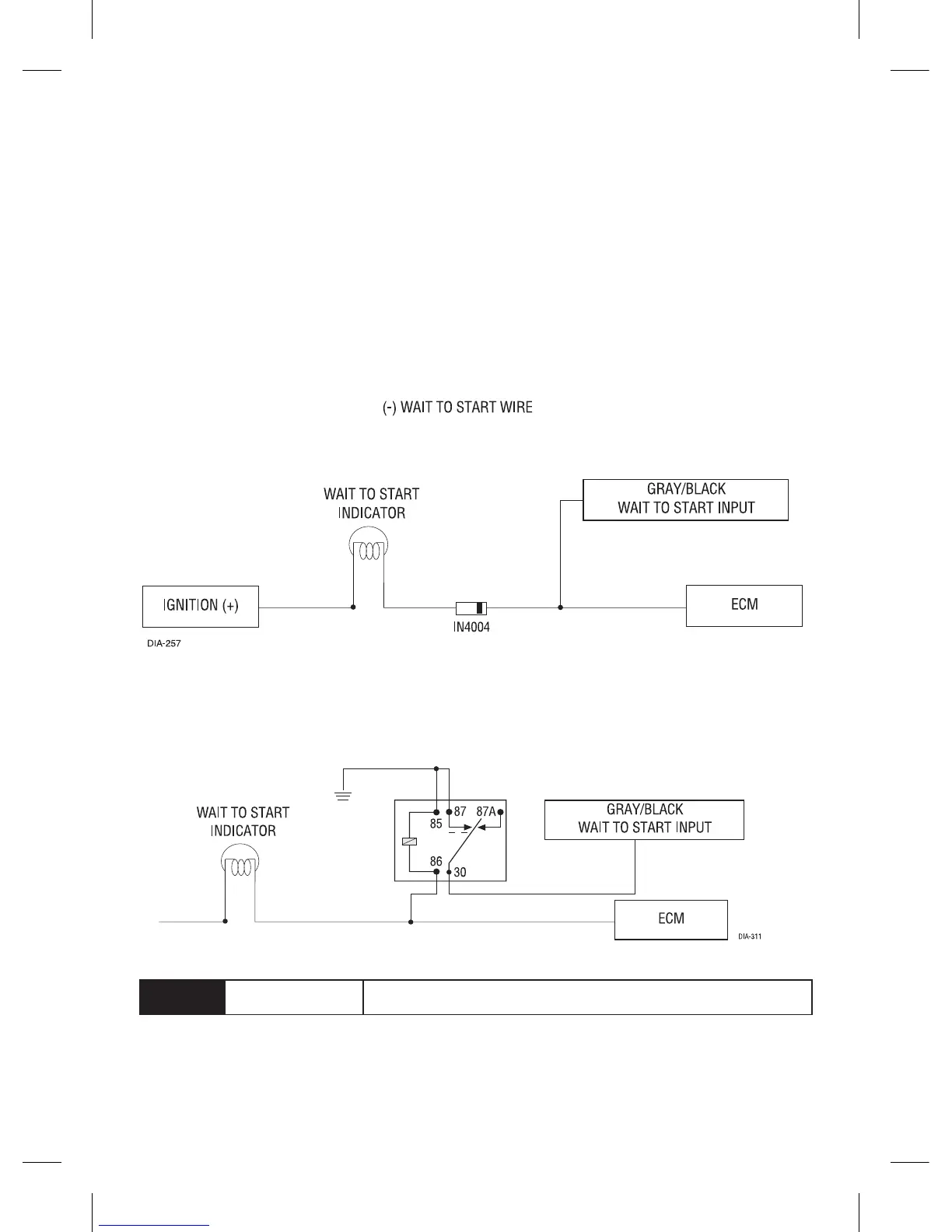

Note: A 1-amp diode must be installed in line on the factory wire between the
wait-to-start indicator and the ECM. (See the following diagram for details).
(+)WAIT-TO-START WIRE
H2/8
BROWN/BLACK (-) HORN HONK OUTPUT
This wire is low current output (200mA) and can be hooked to the horn honk
wire in the vehicle. It can be programmed to sound only during full trigger or
