Operator’s Manual
Operating Procedure
34/50

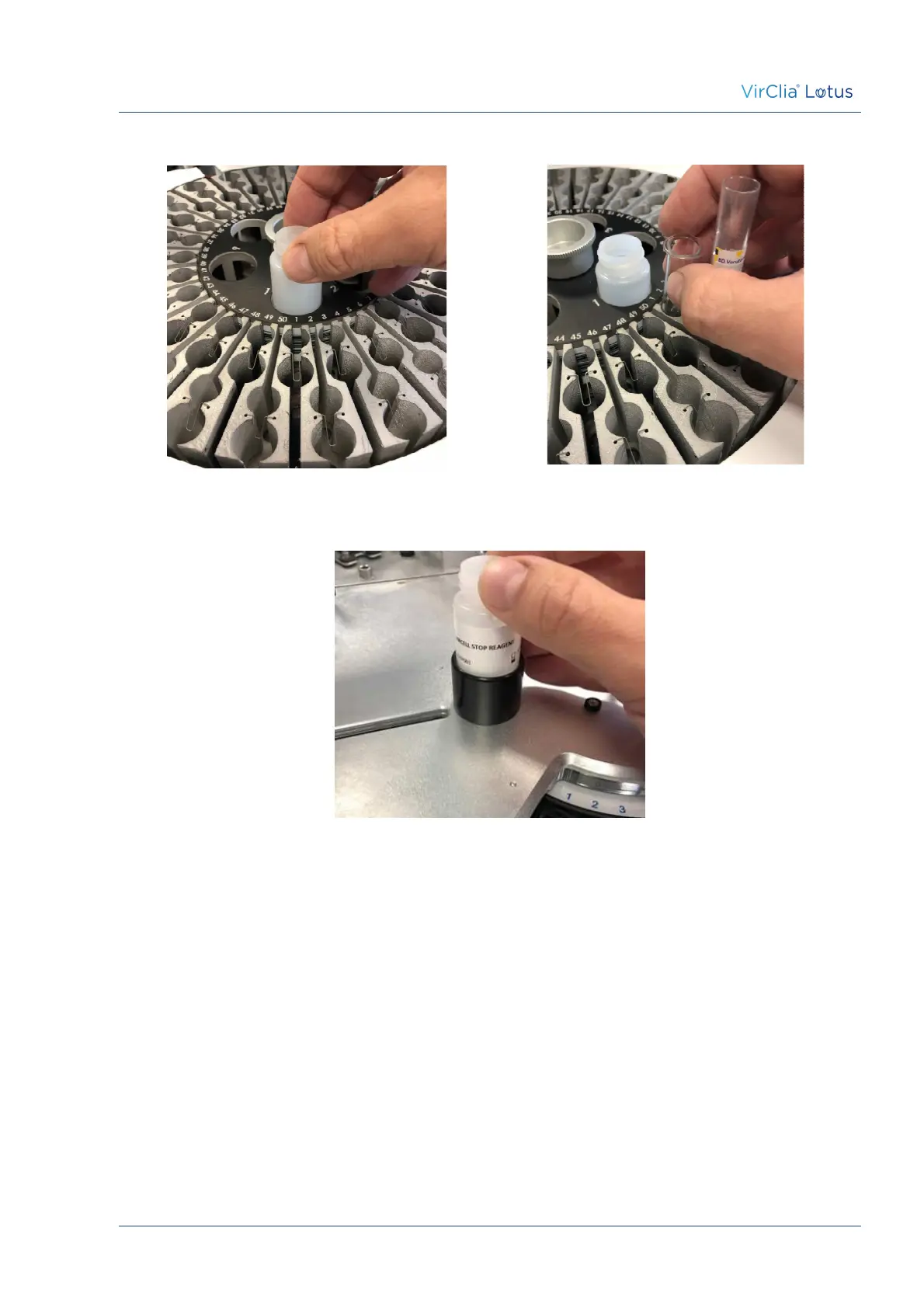

• Diluent bottles, and pre-dilution tubes to be placed onto the sample’s rotor:
•
Decontaminant solution bottle can be placed in the upper place sited on the top of the strip rotor in the case
it is needed.
Press Continue to proceed.
3.3.8.
L
OAD
S
TRIPS
S
CREEN
Once loaded the resources and after pressing continue the Load Strips Screens appears.
The software guides the user in loading the Monotest Devices (Strips). Each type of Monotest device is represented with
a different color, the color assignment is shown in a table located on the right side of the screen.
There could be more than one load strips page, in each page there are the instructions to load up to ten strips. The colors
assigned to some strip type in one page may be reused for another strip type in another page. The color assignments are
used to help the user to distinguish between the various strip types within each single page.
