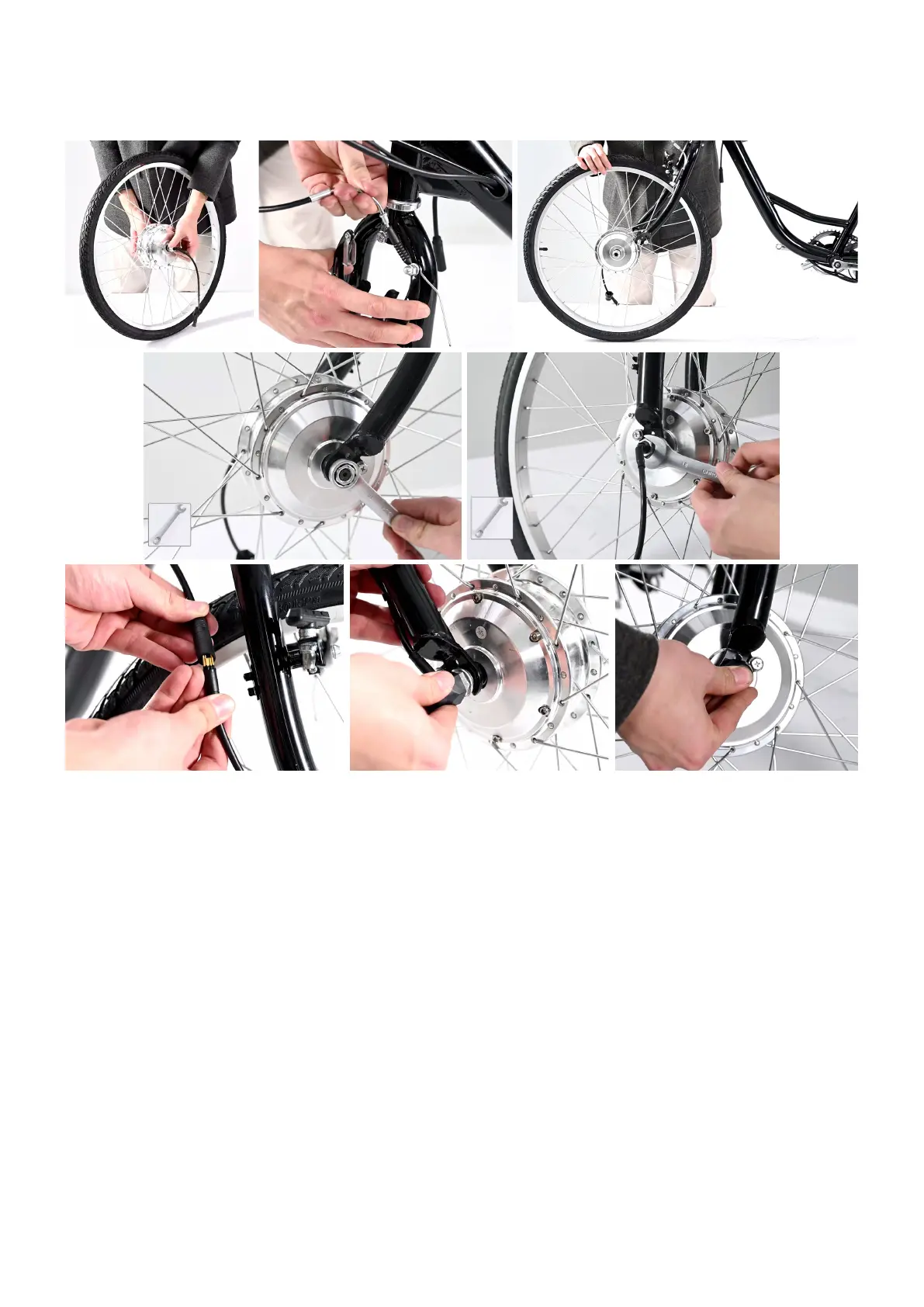

4. Installing the Front Wheel
1. Loosen the M12 nuts on both sides of the motorized front wheel (6).
2. Press and disconnect the V-shaped front brake on the main frame’s front fork.
3. Fit the front wheel into the front fork, keeping the motor cable on the right.
4. Retighten the nuts with your 18mm wrench.
5. Connect the wiring between the motor and the main frame.
6. Cover the nut on the right with the attached cap.
7. Attach the front wheel cap (13) to the nut on the left, pressing it hard until it is locked in place.
