3. Installing the Rear Wheels
Note:
The two rear wheels (5)
ARE
dierent and should
NOT
be mixed up. The wheel with the
O-shaped slot goes with the O-shaped hub on the rear axle while the wheel with the D-shaped
slot goes with the D-shaped hub.

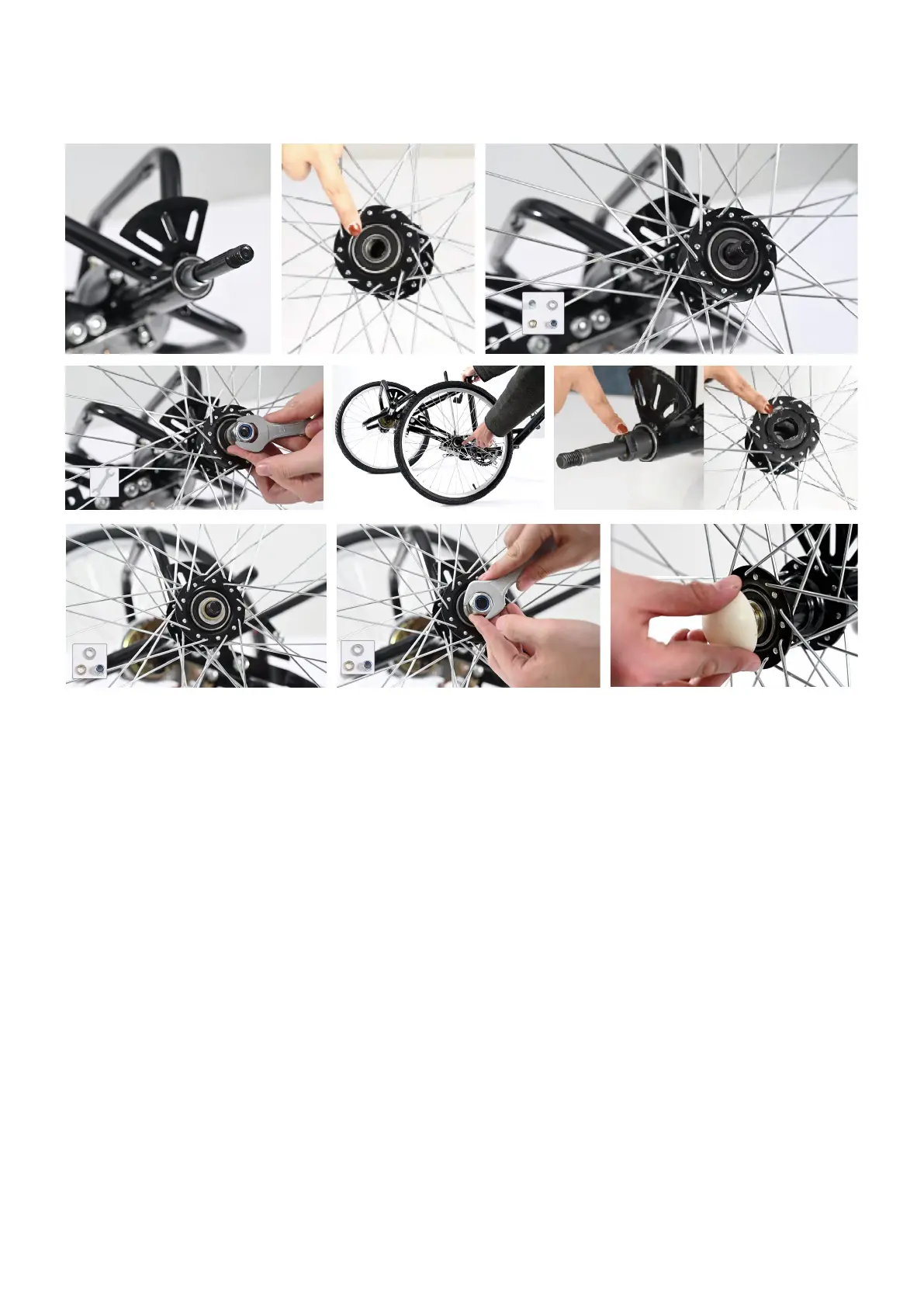

1. Remove the M14 nut and 2 washers from the O-shaped hub. Place them nearby.
2. Slide the spacer back into place on the O-shaped hub, if needed.
3. Insert the wheel with the O-shaped slot onto the O-shaped hub.
4. Replace the washers and nut, tightening the nut with your 22mm wrench.
5. Remove the M14 nut and 2 washers from the D-shaped hub. Place them nearby.
6. Insert the wheel with the D-shaped slot onto the D-shaped hub.
7. Replace the washers and nut, tightening the nut with your 22mm wrench.
8. Attach the rear wheel caps (23) to both wheel hubs, pressing hard until they are locked in
place.
