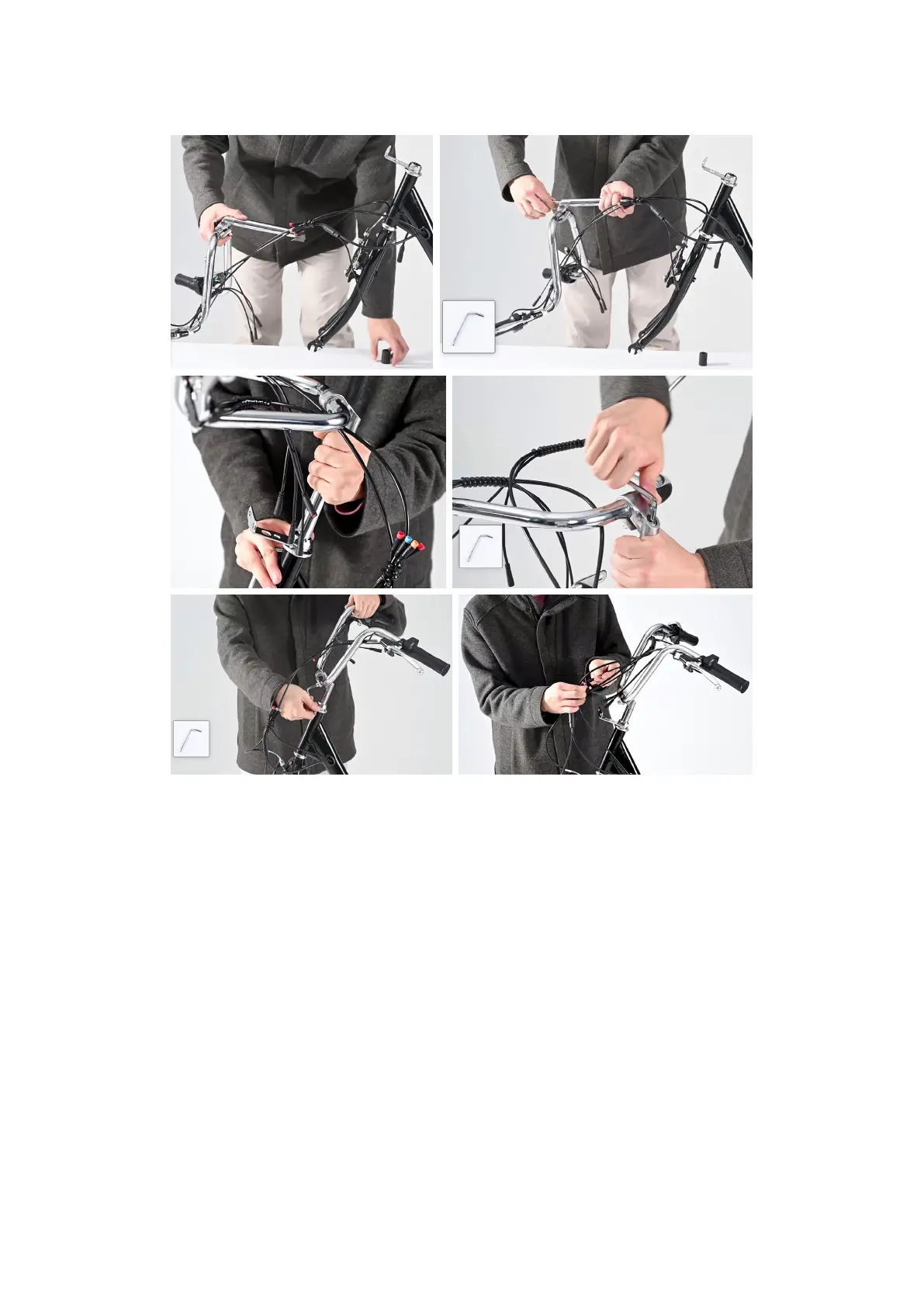

2. Installing the Handlebars
1. Remove the protective cover underneath the stem of the handlebars (2).
2. Loosen the M8 bolt on the top of the stem with your 6mm hex wrench.
3. Slide the stem into the head tube of the main frame, retightening this bolt.
4. Lift the handlebars to an appropriate position, tightening the M8 bolt on the front with your
6mm hex wrench.
5. Connect the blue cables from the main frame to the throttle on the right handlebar.
6. Connect the red brake cables from the correct handlebars to the correct brakes. (Left to the
front brake and right to the rear brake in the United States.)
7. Bind these cables using the zip ties (11).
