SIMULATING WIND-CHESTS WITH THE PRESTIGE
The output configuration can be set using the EXTERNAL VOICES ROUTER function in the
MIDI&UTILITY menu
This display function allows you to select one of the four output Presets developed by our research,
which reflect the most classical arrangements of pipes with the wind-chests, and of the wind-chests
themselves in large churches and cathedrals.
Two Presets (Family 1 and Family 2) group the outputs together by voice families, while the other
two (Divisional 1 and Divisional 2) programme the outputs by divisions (sections) of the organ.
This means that all the voices in a given family or on a manual are only found in one group of
outputs (in Family 1, for example, all the Principals are only transmitted on outputs [1], [2] and
[3]), while another family of voices or another manual will be present on another group of outputs.
These groups of outputs are called “Zones”.
These divisions of outputs into Zones allow the layout of real wind-chests inside churches to be re-
created very easily.
Apart from this, within each Zone the voices are emitted with simulation of the most appropriate
type of wind-chest (central peak, two wings, see previous description). A Principal 16' may be
distributed to the outputs with simulation of a wind-chest with single wing on the right, while a
Principal 8' may be distributed as a single wing on the left, inside the same output zone.
It is as if there were two wind-chests containing different pipe arrangements, but in the same
position inside the church. Below you will find a description of the four output Presets available.

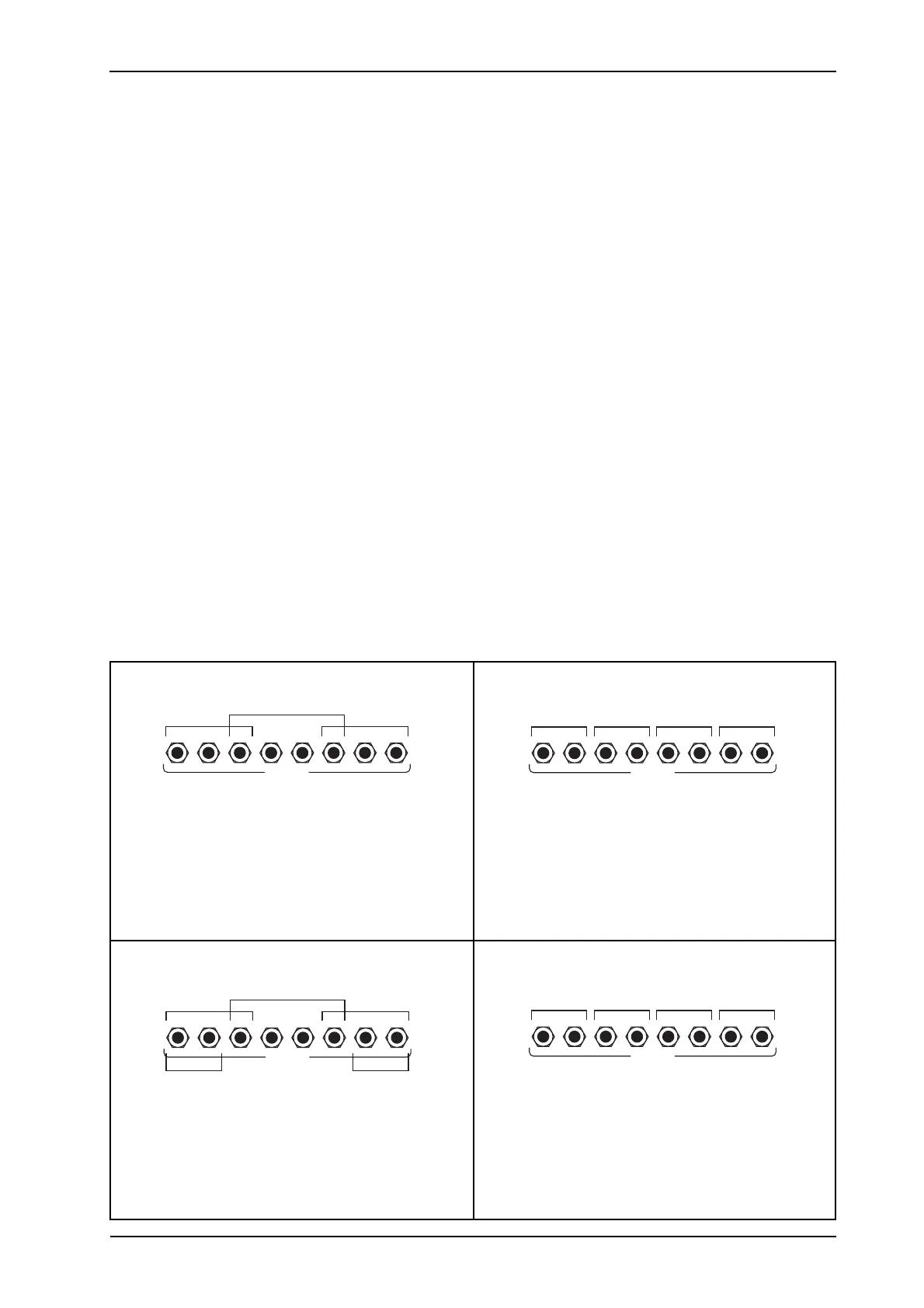

The output zones and voices they contain are listed underneath the illustration.
Zone A: Flutes and Cornets
Zone B: Principals, Violas, Mixtures
Zone C: Reeds, Chimes
Zone A: all 64’, 32’ and 16’ voices
Zone B: Flutes, Principals, Violas, Chimes,
Cornets and Mixtures (except for those in
zone A)
Zone C: Reeds
Zone D: Tuba Mirabilis (Festival Trumpet)
FAMILY 1 FAMILY 2
MAIN OUT
12345678
AC
B
MAIN OUT
12345678
A BCD
Zone A: Man.I voices
Zone B: Man.II voices
Zone C: Man.III voices
Zone D: pedal board voices
Zone E: pedal board voices
DIVISIONAL 1
MAIN OUT
12345678
AC
B
D E
Zone A: Man.I voices
Zone B: Man.II voices
Zone C: Man.III voices
Zone D: pedal board voices
DIVISIONAL 2
MAIN OUT
12345678
A BCD
