Vision Engineering Mantis User Manual

3

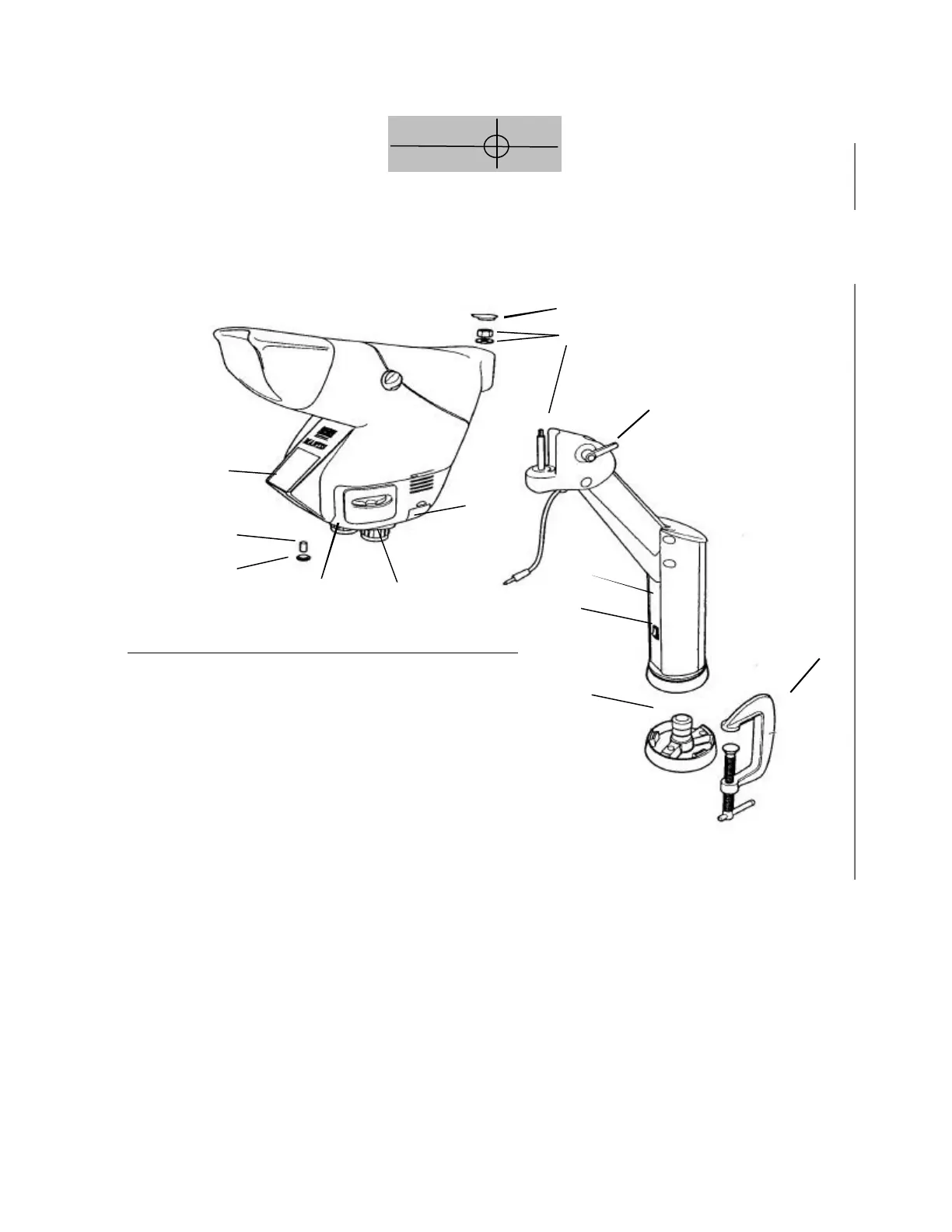

SYSTEM DIAGRAM
MANTIS UNIVERSAL BOOM MOUNT
Visi
n
E N G I N E E R I N G
Description User Guide Des. Part No.
1. Yaw Bolt Cover Cover Plate 187-A-0079
2. Yaw Bolt Assembly Yaw Spigot YB-A-001
3. Anti-glare Shield Anti-glare Shield 187-B-0090
4. Adj. Friction Handle Height Friction Clamp HAN-0567
5. Table Mount Base Universal Mount 187-C-0258
6. C Clamp Assembly G Clamp HDW-1092
7. Power Switch SWI-0122
8. Switch Cover 187-A-0111
9. Fan Cover Assembly 187-A-0211
10. Desiccant(10 pack) Desiccant Cartridge M006
11. Grommet HDW-1030
12. Turret Assembly 187-A-0208
13. Filter Tray - Left 187-C-0076
14. Filter Tray - Right 187-C-0075
15. Lamp Diffuser 187-A-0115
16. Lamp Diffuser(Blue) 187-A-0115A
17. Lamp, 12volt, 20watt LAM-1300
1
2
4
13
14
15
16
17
10
11
3
9
12
8
7
5
6
