Vision Engineering Mantis User Manual

4
MANTIS FX BENCH STAND
Visi
n
E N G I N E E R I N G
Description User Guide Des. Part No.
1. Yaw Bolt Cover Cover Plate 187-A-0079
2. Yaw Bolt Assembly Yaw Spigot YB-A-001
3. Anti-glare Shield Anti-glare Shield 187-B-0090
4. Focusing Thumbwheel
5. Focusing Platform 187-D-292*
6. Surface Lighting Switch
7. Substage Lighting Switch
8. FX Base 187-C-0310
9. Fan Cover Assembly 187-A-0211
10. Desiccant(10 pack) Desiccant Cartridge M006
11. Grommet HDW-1030
12. Turret Assembly 187-A-0208
13. Filter Tray - Left 187-C-0076
14. Filter Tray - Right 187-C-0075
15. Lamp Diffuser 187-A-0115
16. Lamp Diffuser(Blue) 187-A-0115A
17. Lamp, 12volt, 20watt LAM-1300
*Requires Sub-Assembly
187-B-307
1
2
3
10
11
12
13
14
15
16
17
9
5
6
7
8
4

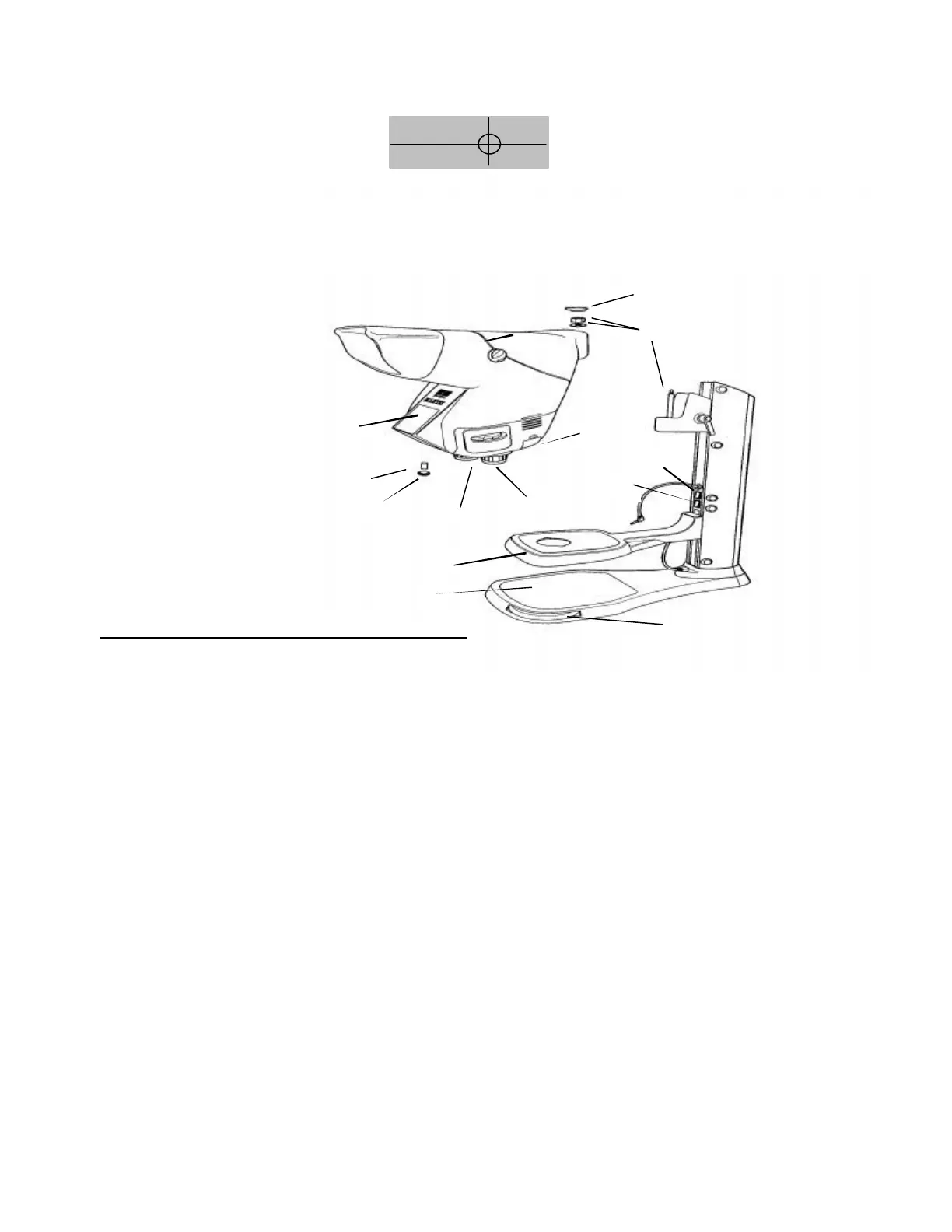

SYSTEM DIAGRAM
