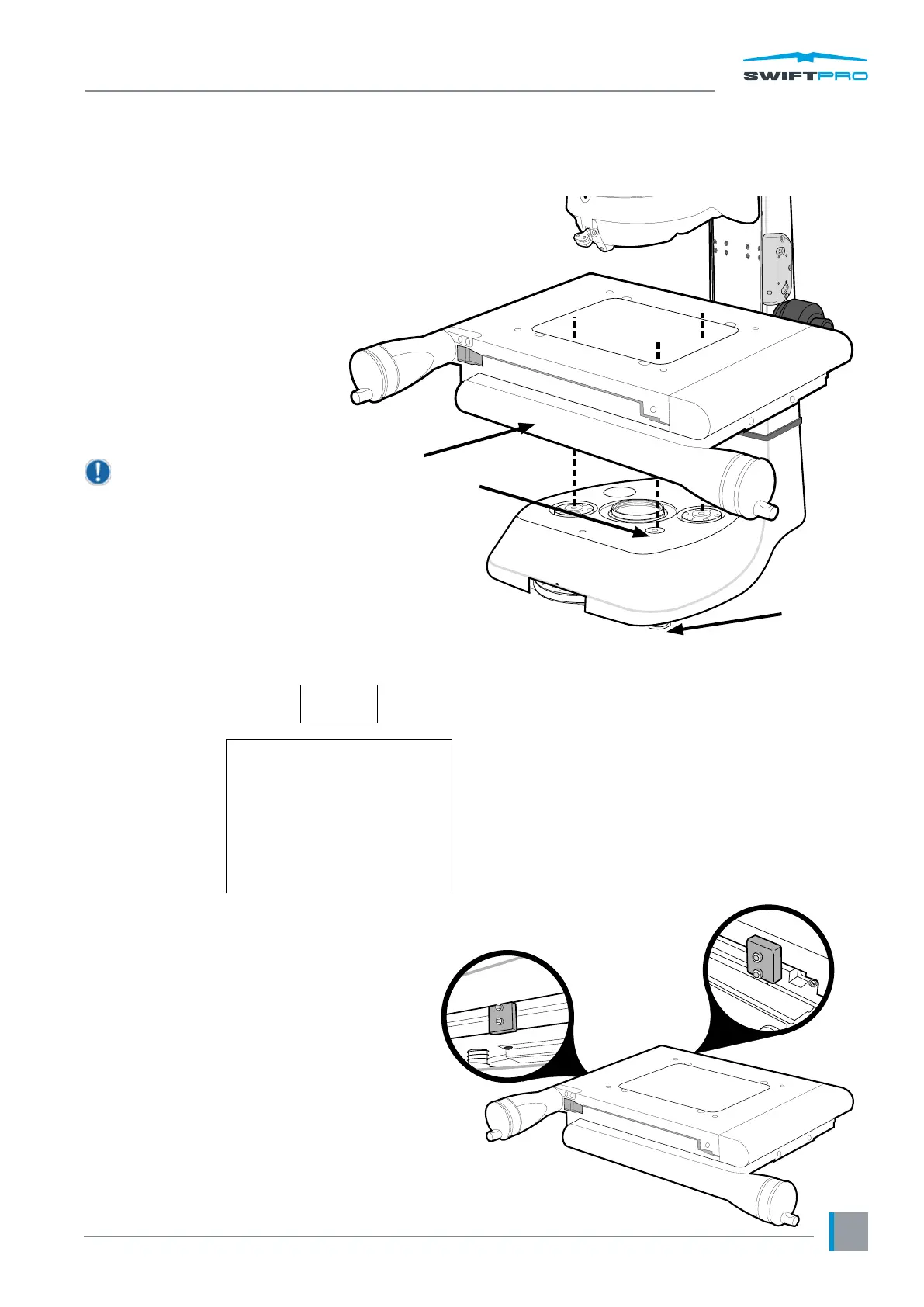

Stage assembly (150mm x 100mm & 200mm x 100mm)
` Use the stand’s levelling foot
u
to ensure the base is stable.
` Place the stage on the stand ensuring the retractable foot
(position B4 in diagram
v
below) is fully retracted.
` Check the stand stage mount feet
w
and the underside of
the stage
x
are clean and free
of any debris.
` Loosely t the stage bolts
y
in
position B1, B2 and B3 (also
in diagram
v
) to a light (nger
tight) tension.
If this is a video system,
do not tighten the stage bolts
as the stage will need to be
aligned (see page 7).
For systems with an optical head
only (no video camera), tighten the
stage bolts in the sequence shown in
v
to a torque of 2.8Nm.
` Remove all red transit clamps from the stage.
y
y
y
w
u
x
Column
Stage Assembly
B4
B3B1
B2
v
