Vision Engineering Swift PRO Elite User Manual

Assembly
www.visioneng.com/support
8

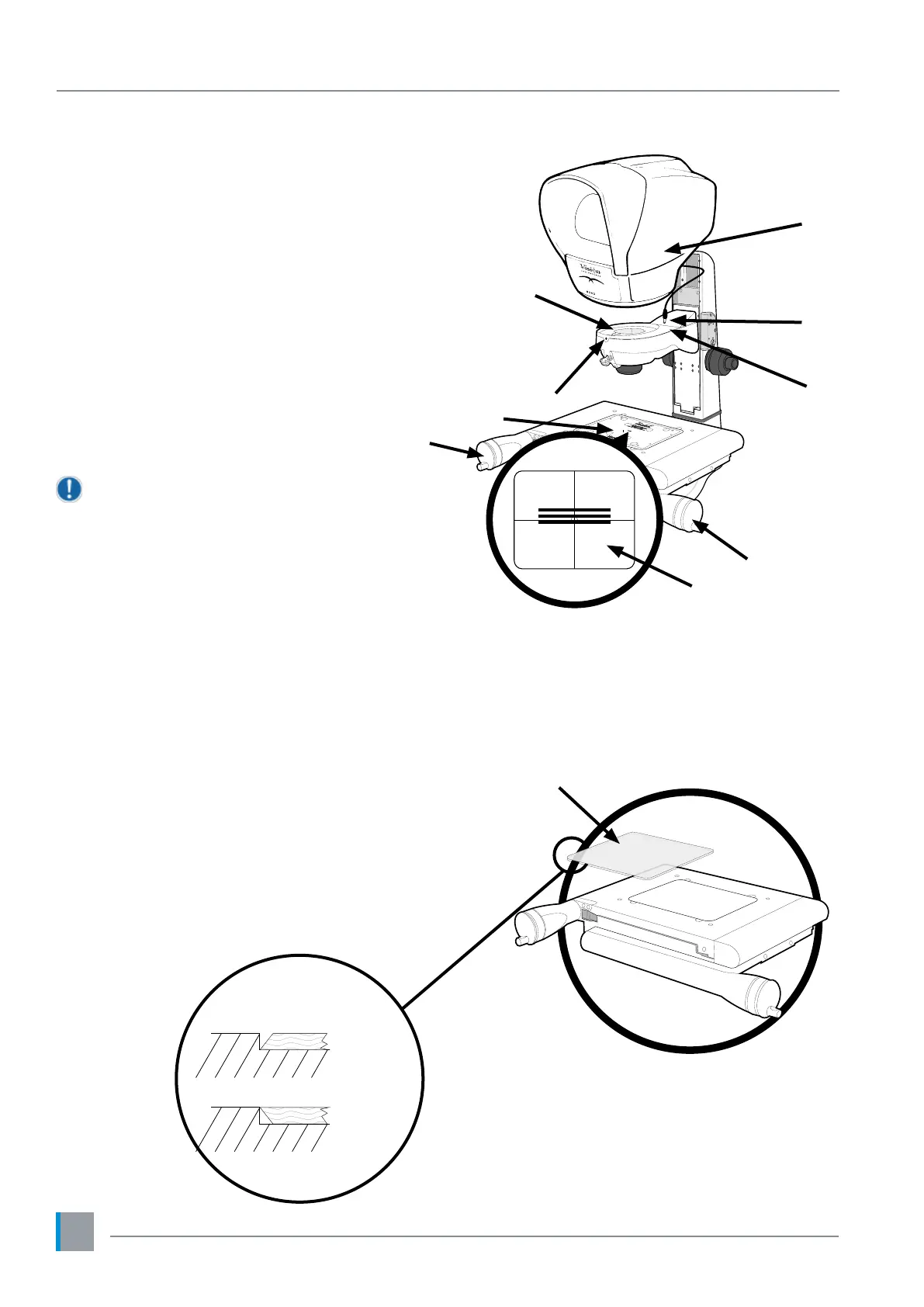

Head attachment
` Lower the head
u
into position on the focus assembly
v
.
` Insert the head connector
w
into the head socket
x
.
` Turn the system on using the mains switch.
` Use the X and Y stage controls
y
to centre the
alignment
plate
z
in the viewing screen.
` Turn the head to align the head crosshair with the
alignment plate (see inset
{
).
` Tighten the securing screw
|
.
` Remove the alignment plate.
If you need to remove the stage for
any reason, re-attach the alignment
plate and ensure the horizontal
lines are parallel to the horizontal
crosshair before removing the stage.
Fitting the stage glass
` Fit the stage glass
u
into its recess, taking care to
locate its bevelled edges
v
against the location springs
and on to the supports
w
.
x
y
{
w
v
|
z
y
u


v
w
w
w
w
u

Vision Engineering Swift PRO Elite Specifications

General

Type	Digital Microscope
Technology	Optical and Digital
Camera Resolution	Up to 5MP
Z-axis measurement	Yes
Eyepiece Diopter Adjustment	Yes
Power Supply	AC adapter
Lighting	LED
Connectivity	USB
Objective Lens	Various options available
Magnification	Up to 100x (system dependent)
Working Distance	System dependent
Field of View	System dependent
Weight	System dependent
Dimensions	System dependent
