Vision Engineering Swift PRO Elite User Manual

Technical specications
www.visioneng.com/support
14
Technical specications
Measuring Stage
Precision measuring stage, with factory-set Non-Linear
Error Correction (NLEC) calibration as standard.
(X,Y) Stage accuracy: 5+(6.5L/1000)µm
(Z) Z-axis accuracy 10 µm using controlled conditions
with 200x magnication*
Measuring Range
(X,Y) 200mm x 100mm (10kg maximum load)
(Z) 98mm*
Height adjustment
100mm of height adjustment
Encoder Resolution
X = 1µm Y = 1µm Z = 0.5µm*
Video Camera
High resolution colour CCD video camera
Optics (Swift PRO Duo and Elite)
Patented twin pupil monoscopic, innity corrected
optical system, with pre-centred crossline graticule to
both eyes.
 Option of custom designed graticule, pre-centred to
one eye
Magnication Options (System Total)
 Quick change magnication options - 10x, 20x, 50x,
100x, 200x
Illumination
Cool, corrected colour temperature LED surface
illumination.
Iris-controlled LED substage illumination.
PSU fuse ratings
T2.5A H (2.5A slow blow (HBC) ceramic 5x20mm fuse)
*3-axis variant only

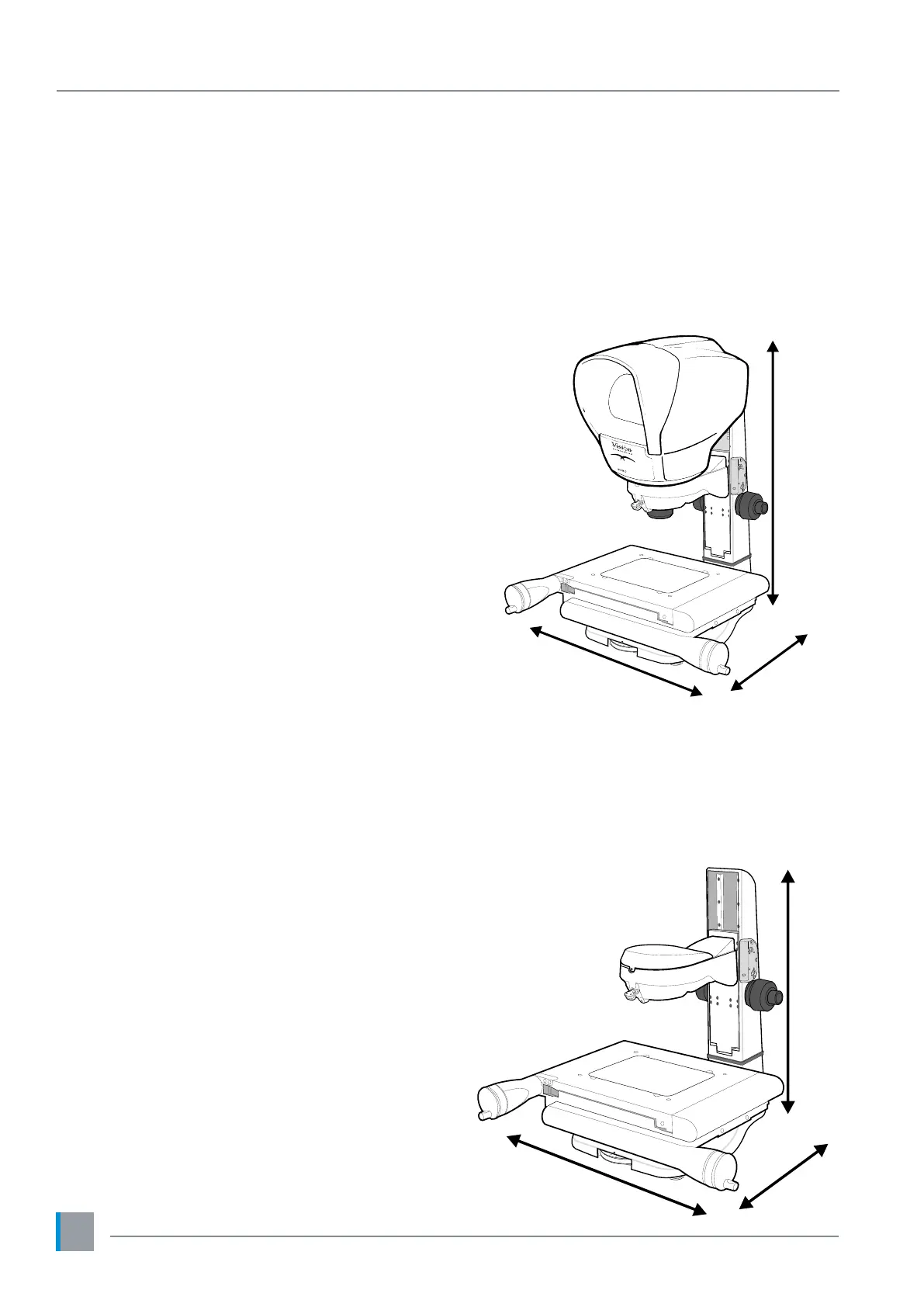

Dimensions
Swift PRO Duo and Elite
 A = 680mm max.
 B = 430mm (150mm x 100mm)
515mm (200mm x 100mm)
 C = 480mm
Swift PRO Cam
 A = 450mm
 B = 430mm (150mm x 100mm)
515mm (200mm x 100mm)
 C = 480mm
A
C
B
A
C
B
