Vision Engineering SWIFT PRO Series User Manual

Assembly
www.visioneng.com/support
8

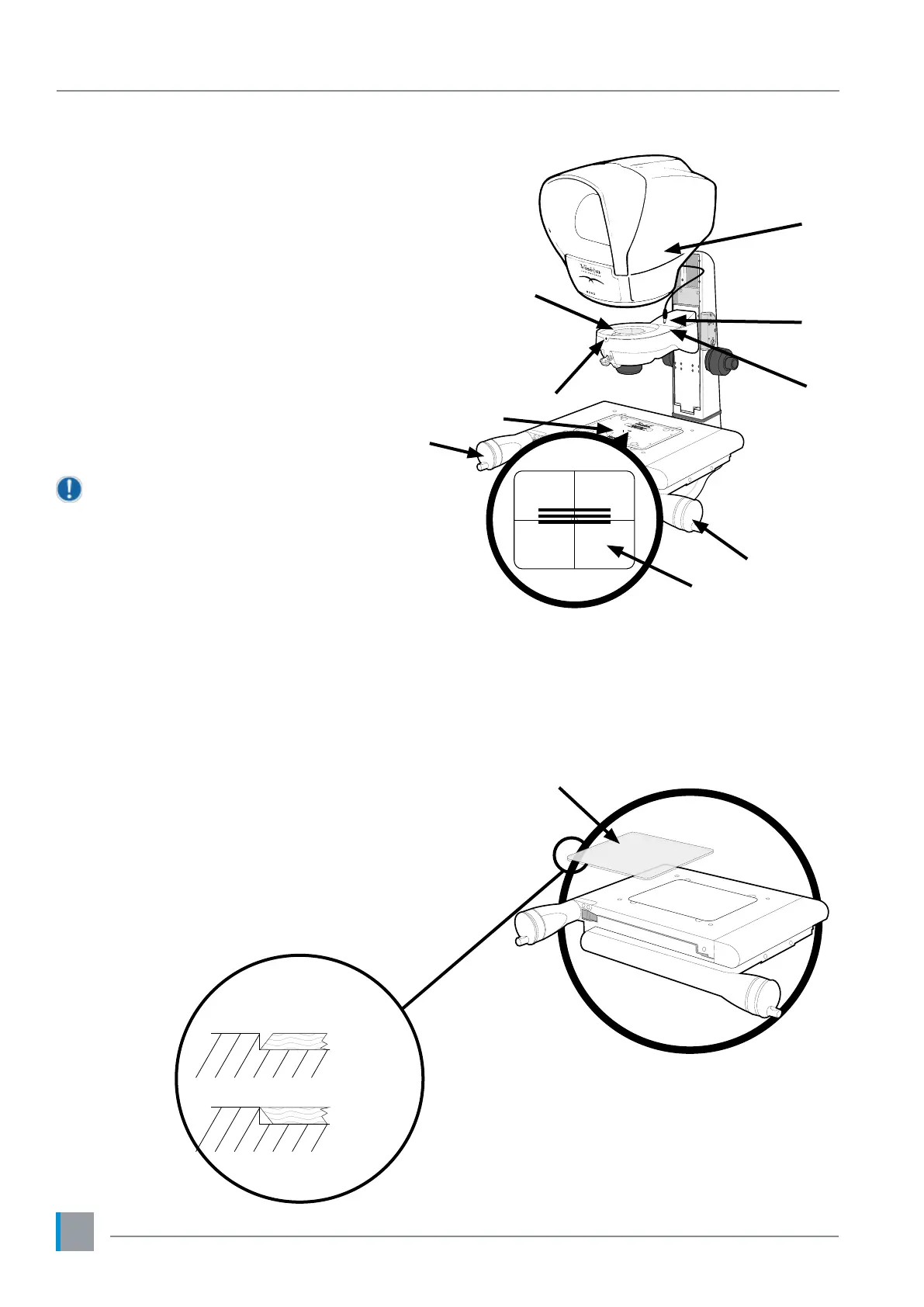

Head attachment
` Lower the head
u
into position on the focus assembly
v
.
` Insert the head connector
w
into the head socket
x
.
` Turn the system on using the mains switch.
` Use the X and Y stage controls
y
to centre the
alignment
plate
z
in the viewing screen.
` Turn the head to align the head crosshair with the
alignment plate (see inset
{
).
` Tighten the securing screw
|
.
` Remove the alignment plate.
If you need to remove the stage for
any reason, re-attach the alignment
plate and ensure the horizontal
lines are parallel to the horizontal
crosshair before removing the stage.
Fitting the stage glass
` Fit the stage glass
u
into its recess, taking care to
locate its bevelled edges
v
against the location springs
and on to the supports
w
.
x
y
{
w
v
|
z
y
u


v
w
w
w
w
u
