CONSOLE CABLES
CONSOLE MAST
PRE-IN STALLE D BOLTS
WATE R BOTTLE HOLDER
CONSOLE
LIMITED HOME-USE WARRANTY
WEIGHT CAPACITY
R20 & U20 = 300 lbs (136 kilograms)
R40 & U40 = 325 lbs (148 kilograms)
FRAME
Manufacturer warrants the frame against defects in workmanship
and materials for the period specified on the warranty policy from
the date of original purchase, so long as the device remains in
the possession of the original owner. (The frame is defined as the
welded metal base of the unit and does not include any parts that
can be removed.)
BRAKE
Manufacturer warrants the brake against defects in workmanship
and materials for the period specified on the warranty policy from
the date of original purchase, so long as the device remains in the
possession of the original owner. Labor or installation of brake is
not covered under the brake warranty.
ELECTRONICS & PARTS
Manufacturer warrants the electronic components,
finish and all original parts for the period specified
on the warranty policy from the date of original
purchase, so long as the device remains in the
possession of the original owner.
LABOR
Manufacturer shall cover the labor cost for the repair
of the device for the period specified on the warranty
policy from the date of the original purchase, so
long as the device remains in the possession of the
original owner.

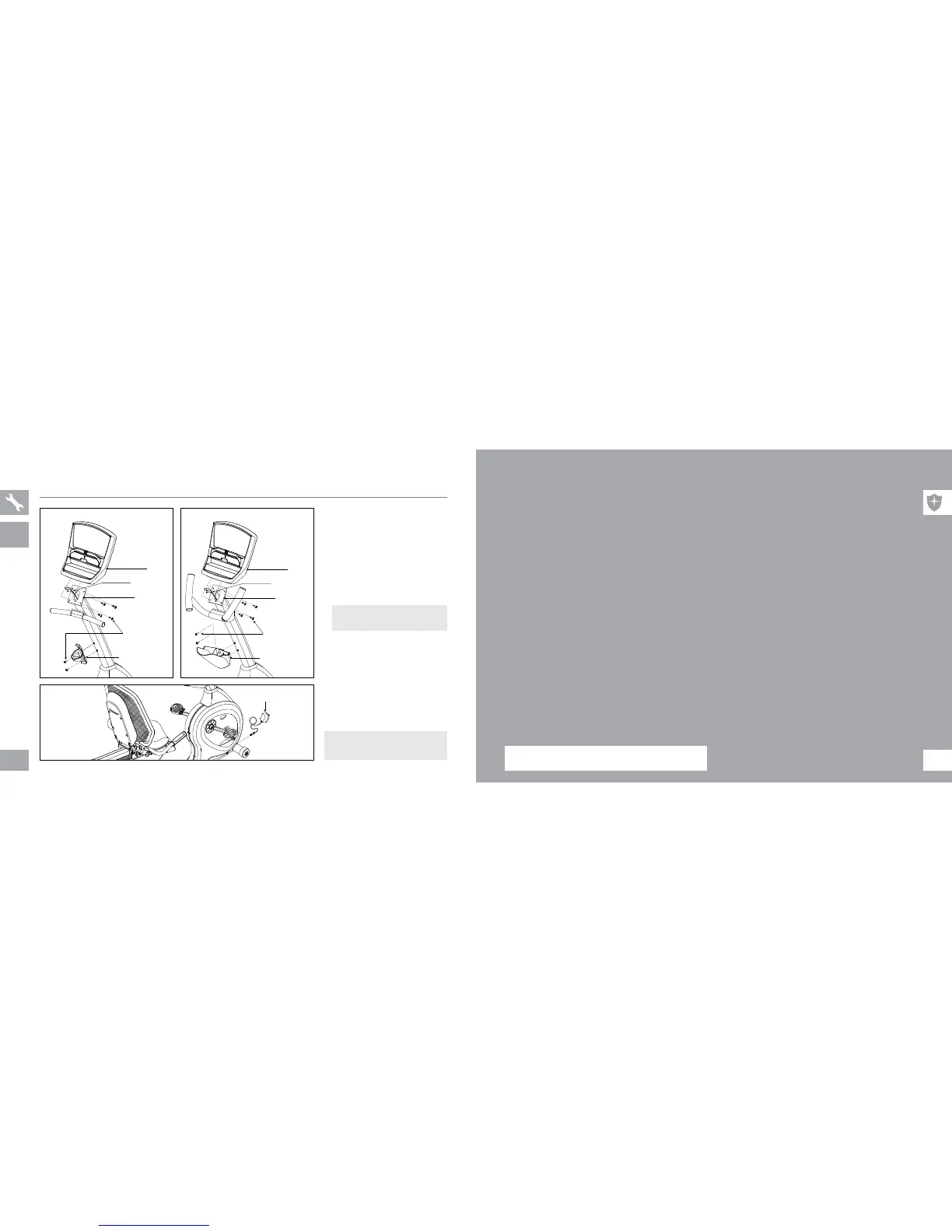

R20 & R40 ASSEMBLY STEP 4
A Remove pre-installed bolts
from console and console
mast.
B Connect the console cables
and carefully tuck the console
cables into the console mast.
C Attach the console to the
console mast using 4 pre-
installed bolts.
D Attach the water bottle
holder to the console mast
using 2 pre-installed bolts.
E Plug in power adapter.
R20 SHOWN
R20
R40
NOTE: Be careful not to pinch any
wires while attaching the console.
r20 & r40 assemblY
complete!
R40 SHOWN
POWER ADAPTER
R40 SHOWN
NOTE: For further information on the warranty period, please
refer to the warranty policy along with the equipment.
