10 11
TOOLS INCLUDED:
F 15/17 mm Flat Wrench
F 4 mm L Wrench (U20/R20/R40)
F 5 mm T Wrench
F Screwdriver
F 5 mm L Wrench
F 14/17 mm Flat Wrench (U20/U40)
UNPACKING
Unpack the product where you will be using it. Place
the carton on a level flat surface. It is recommended
that you place a protective covering on your floor.
Never open box when it is on its side.
NOTE: During each assembly step, ensure that ALL
nuts and bolts are in place and partially threaded in
before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the
installation of hardware. Any grease, such as lithium
bike grease is recommended.
NOTE: It is recommended that two people work
together for ease and efficiency while assembling.
PRE-ASSEMBLY
NEED HELP?
If you have questions or if there
are any missing parts, contact your
authorized Vision Fitness retailer.

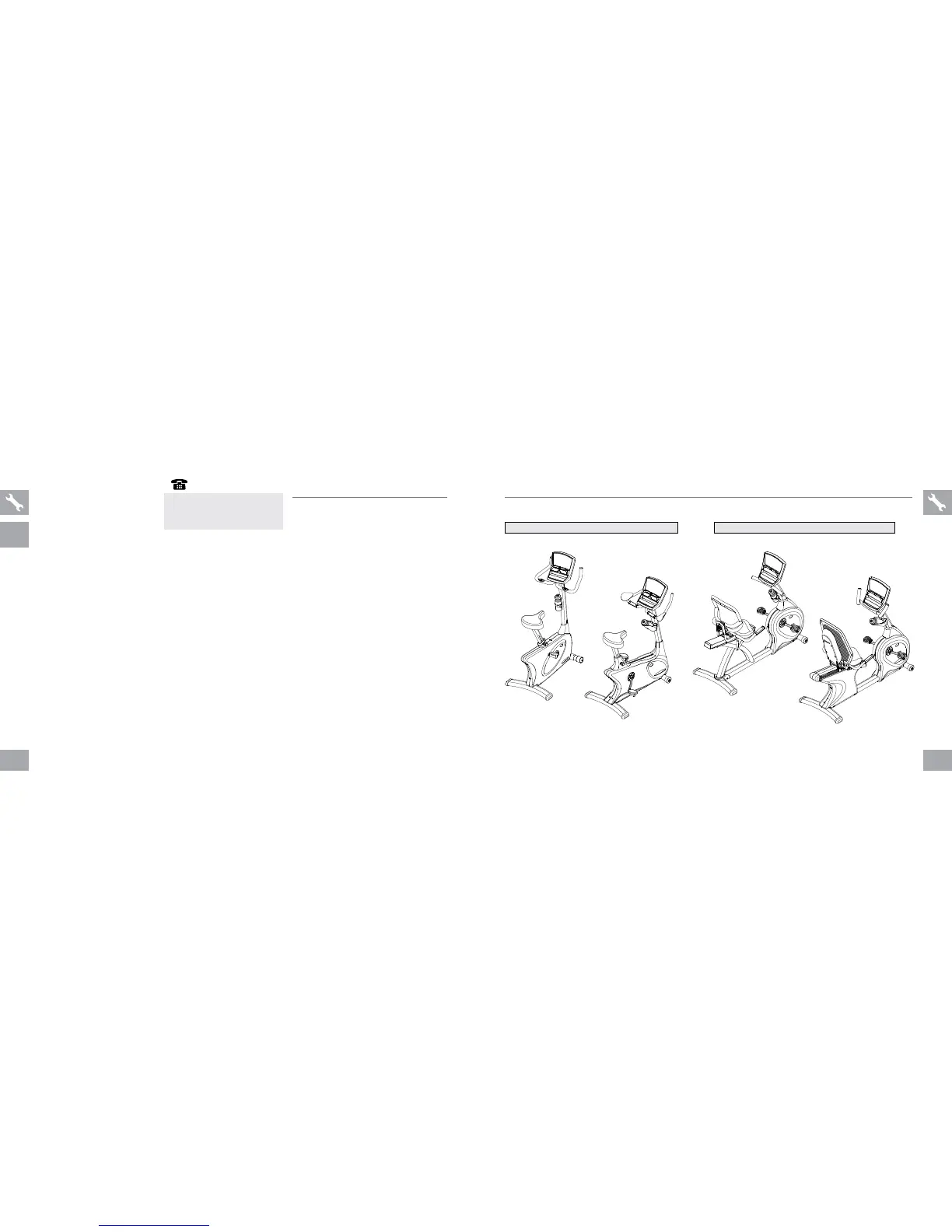

U20 & U40 PARTS
INCLUDED:
F 1 Bike Frame
F 1 Rear Stabilizer Tube
F 1 Front Stabilizer Tube (U20 only)
F 1 Console Mast
F 1 Console Mast Grommet
F 1 Pulse Grip Handlebar
F 1 Water Bottle Holder
F 1 Seat Post Tube
F 1 Seat
F 1 Seat Adjustment Knob
F 2 Pedals with Straps
F 1 Power Cord
F 1 Hardware Kit
R20 & R40 PARTS
INCLUDED:
F 1 Bike Frame
F 1 Rear Stabilizer Tube
F 1 Seat Bottom
F 1 Seat Bottom Support (R40 only)
F 1 Mesh Seatback
F 1 Seat Handlebar
F 1 Seat Frame
F 1 Set Inside/Outside Seatback
Covers (R20 only)
F 1 Console Mast
F 1 Console Mast Grommet
F 1 Console Handlebar
F 1 Water Bottle Holder
F 2 Pedals with Straps
F 1 Power Cord
F 1 Hardware Kit
ALL
MODELS
ASSEMBLY
U20 & U40 PAGE 12 R20 & R40 PAGE 17
