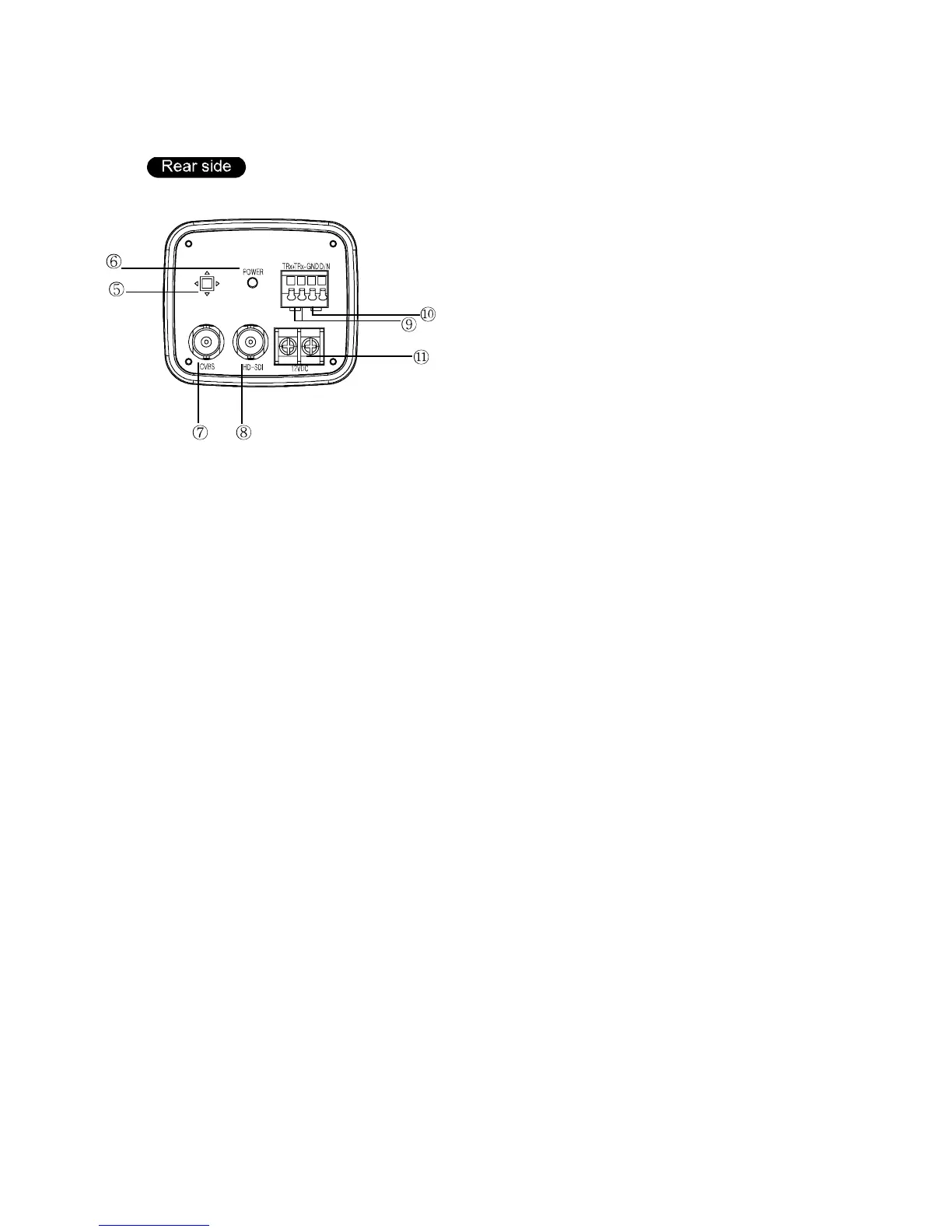

⑤ OSD Control button
⑥ Power indicator LED
Lamp is on when the power is being
supplied.
⑦ CVBS output (BNC Female)
Connect coaxial cable for composite
video signal out.
⑧ HD-SDI output (BNC Female)
Connect coaxial cable for HD-SDI signal
video signal out.
NOTE : HD-SDI and CVBS output can be
used simultaneously
⑨ RS-485 Control port
You can control SETUP menu
through this port by using external
controllers like a remote controller
that RS-485 Communication is
supported. For details, see page 20.
⑩ Day & Night Out port
This unit can be synchronized by an
External IR LED kit through this port.
Low : CDS sensor off ( LED off)
High : CDS sensor On ( LED on)
⑪ Power input terminal
Connect to the power source.
Polarity of the power is self-
configured. (Non-polarity).
