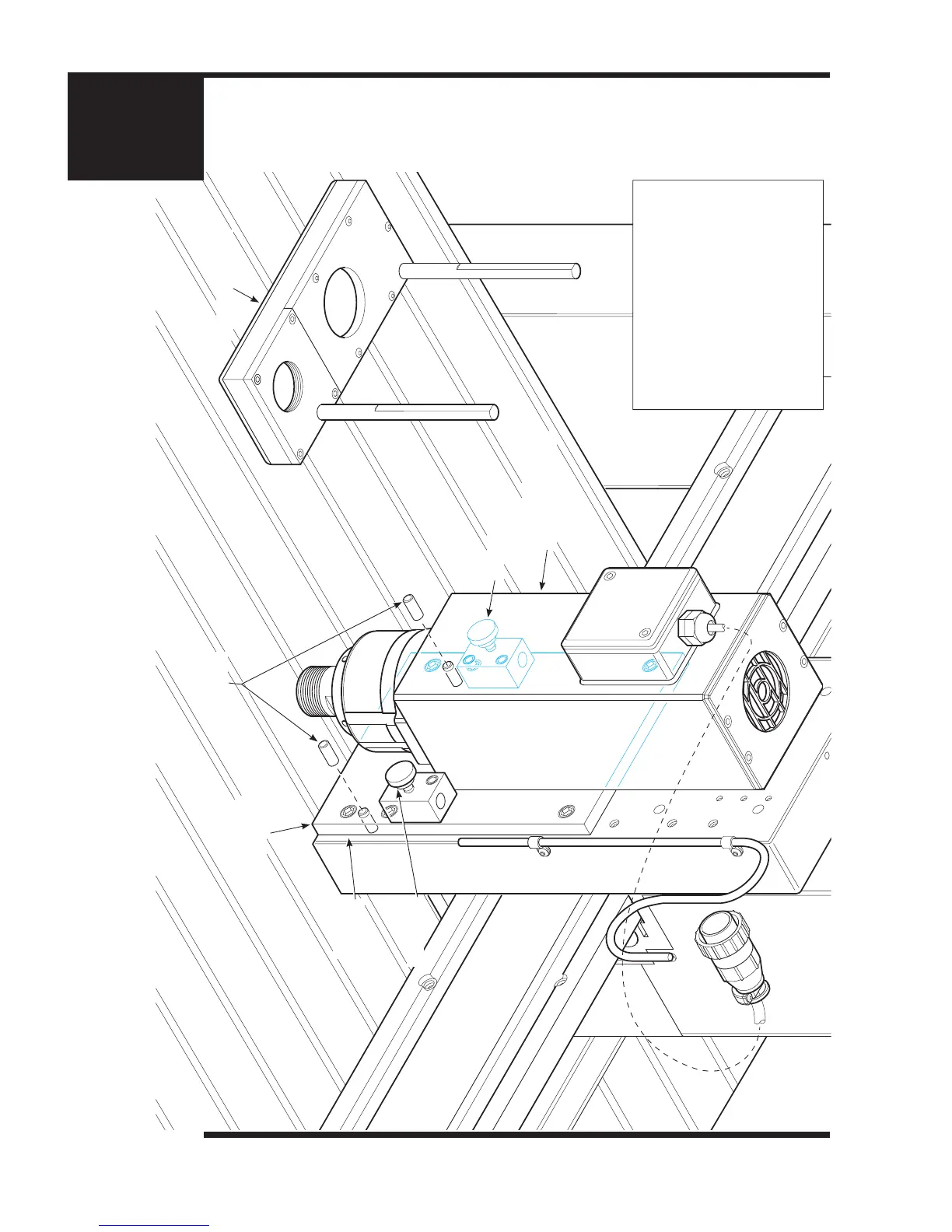

Dowel Pins
Thumbscrew
Thumbscrew
Router Rail
Plate
Router Vacuum Head
High Frequency Router
Assembly
4. Loosen the two Thumbscrews and
remove the Router Vacuum Head from the
High Frequency Router Assembly.
5. Insert the two Dowel Pins through the two
holes on the High frequency Motor Plate
and into the Router Rail Plate.
The Dowel Pins will help you to keep
everything safely in place as you begin
to remove the 6 Screws holding the High
Frequency Router Assembly onto the Router
Rail Plate. (Continued on Pg. 19)
High Frequency
Motor Plate
To Next Page
