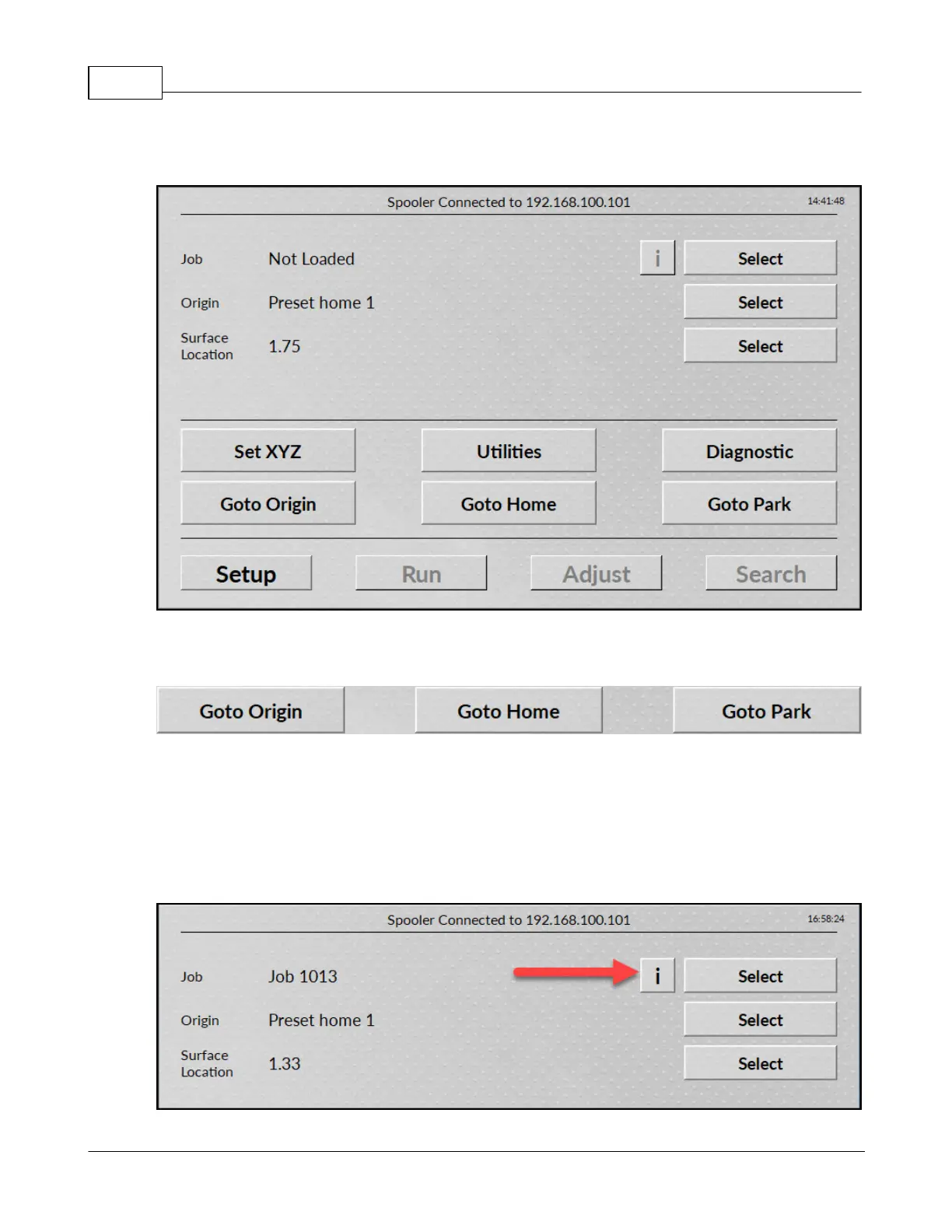

6.2.3 Setup screen
The Setup screen is the main screen. All of the options start from this screen.
The Setup, Run, Adjust and Search buttons will appear on most other screens allowing for quick access
to them.
Pressing Goto Origin moves the spindle to the currently set origin.
Pressing Goto Home moves the spindle to the machine home location. This is the location that the
spindle moves to when the machine is first powered on and the start homing button is pressed.
Pressing Goto Park moves the spindle to the park location. This is set in the utilities screen and is the
location that the spindle moves to when a job is finished.
Information and a graphical preview of the job being run can be displayed. Press the information button.
