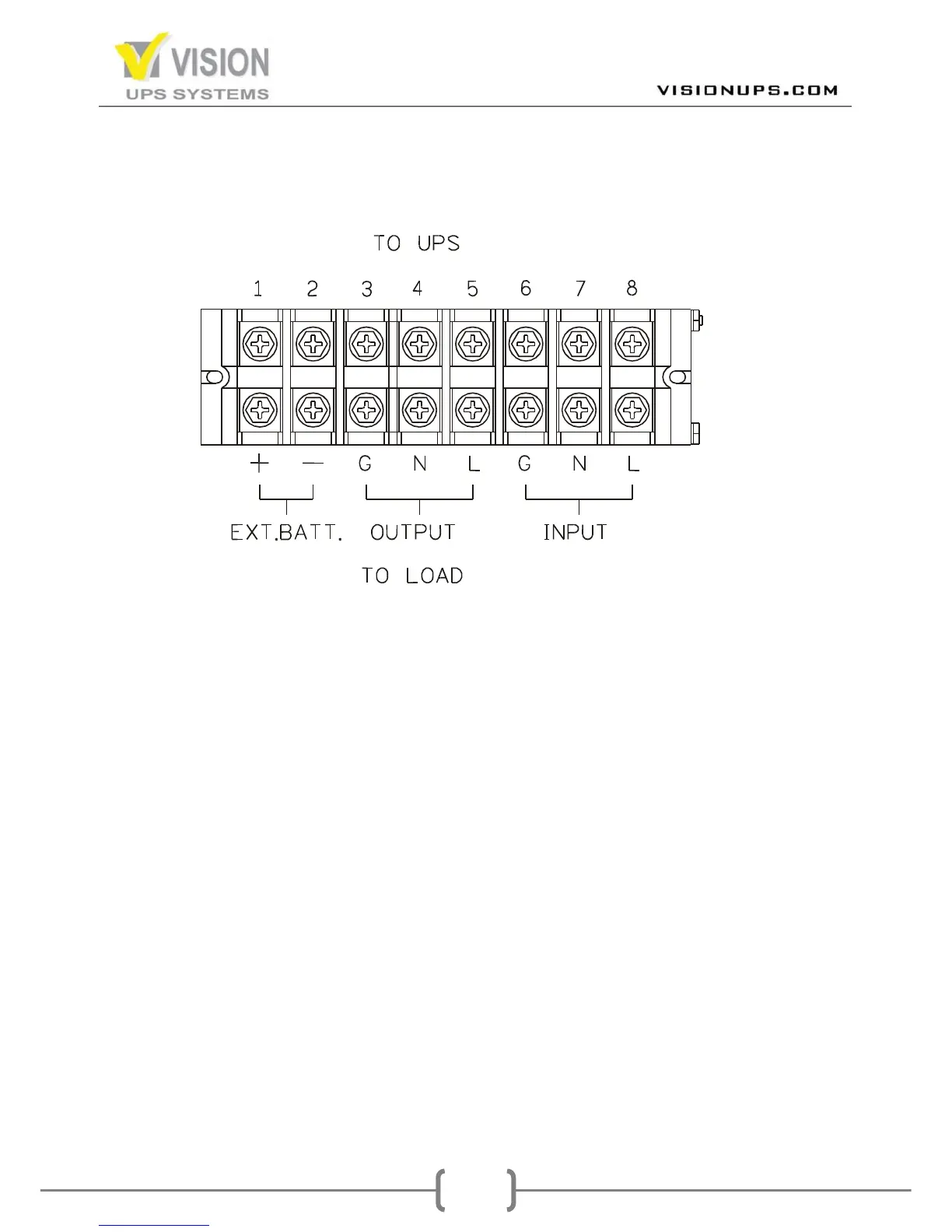

3.4. Output Terminal Block Explanation
3.4.1. SINGLE PHASE
 Pin 1 & Pin 2: the terminals of External Battery Banks
 Pin 3 & Pin 4 & Pin 5: The terminals of UPS Output.
 Pin 6 & Pin 7 & Pin 8: The terminals of UPS Input.
 Max. input current: 8KVA: 50 Amp
10KVA: 63 Amp
Please choose your external input breaker properly according to the Max.
input current of the UPS.
