21

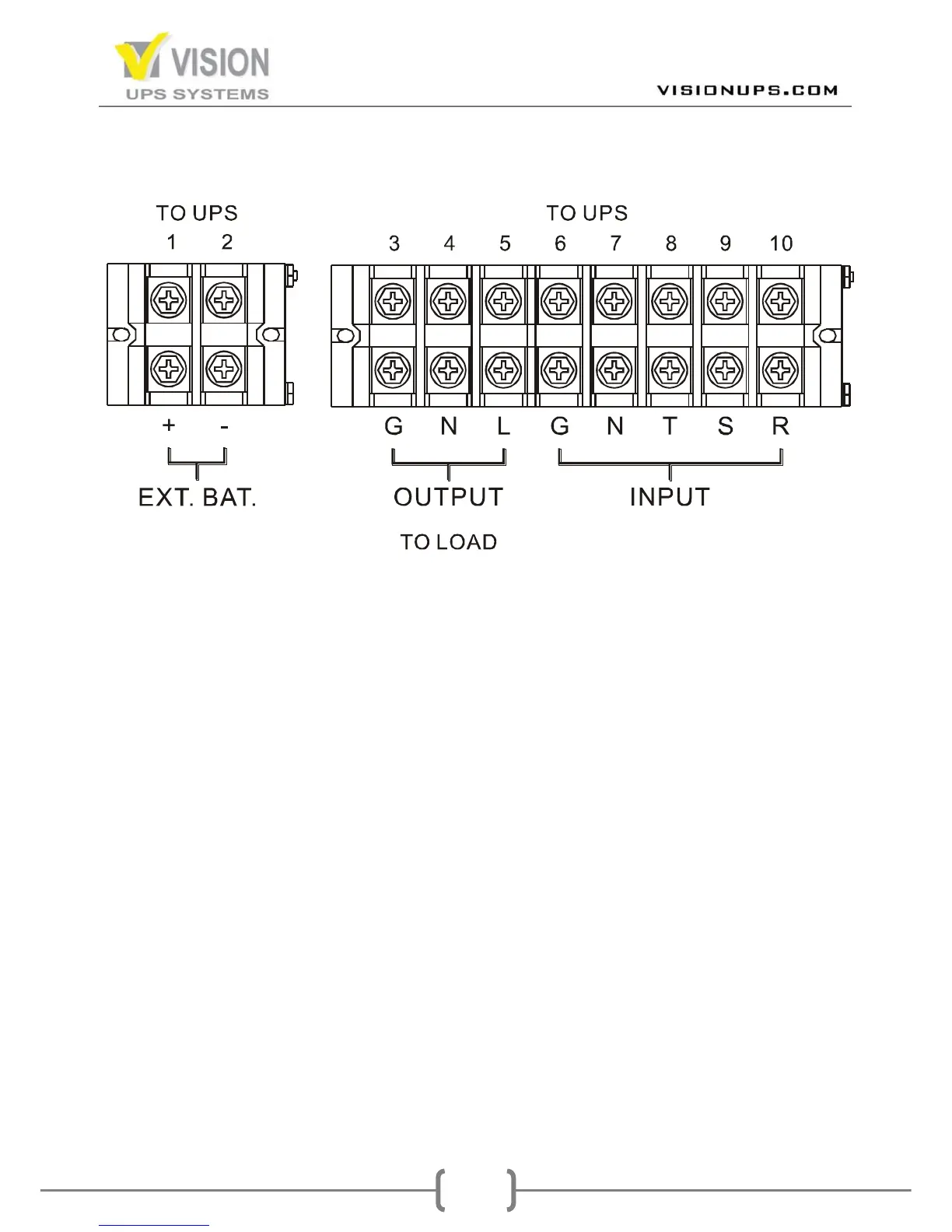

3.4.2. 3-PHASE
Pin 1 & Pin 2: the terminals of External Battery Banks
Pin 3 & Pin 4 & Pin 5: The terminals of UPS Output.
Pin 6 & Pin 7 & Pin 8 & Pin 9 & Pin 10: The terminals of UPS Input.
Max. input current: 8KVA: 50 Amp
10KVA: 63 Amp
Please choose your external input breaker properly according to the
Max. input current of the UPS.
