VisionTrack VT2000 - Drive Data

27

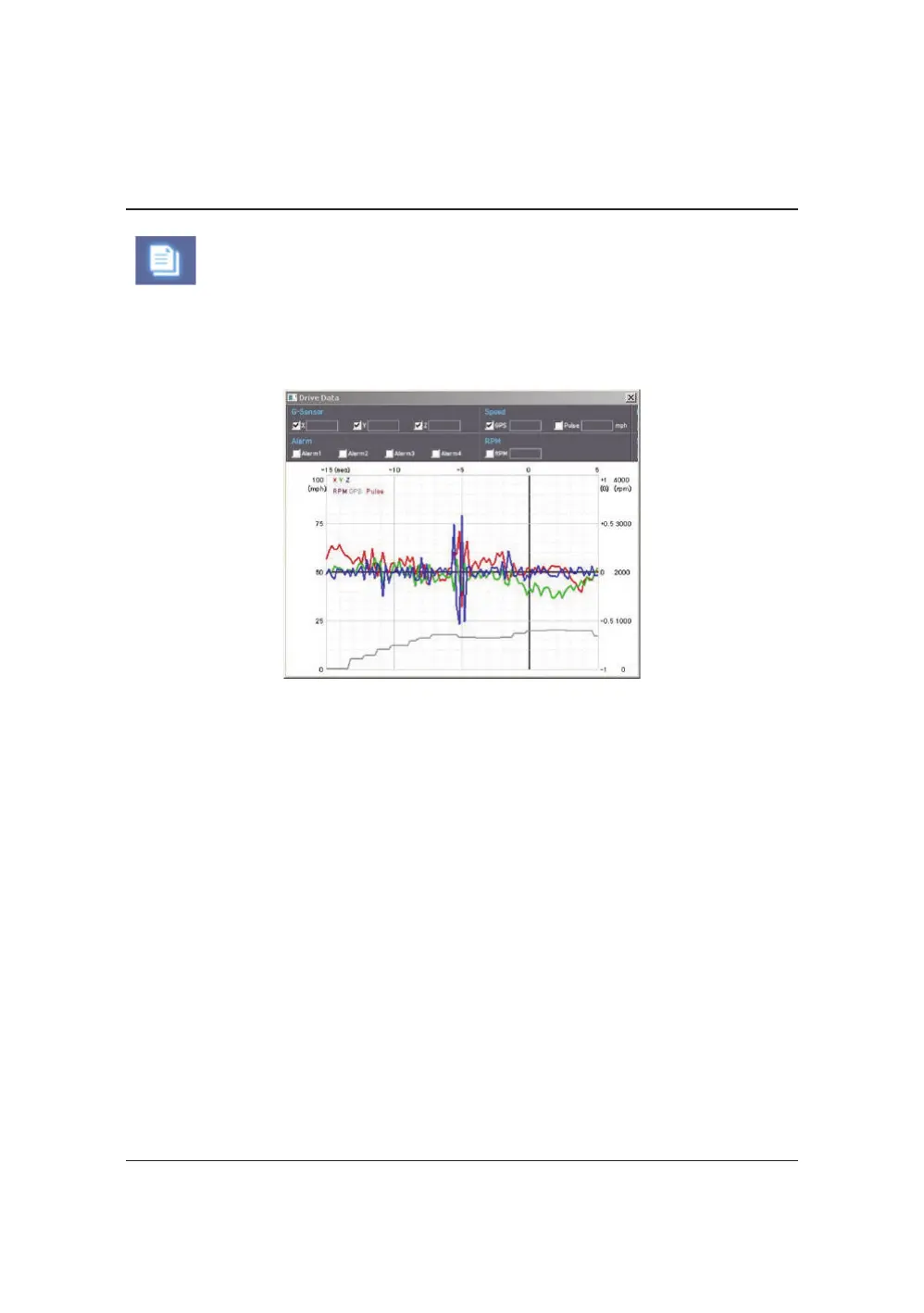

DRIVEDA TA
ThedefaultsettingonlydisplaystheG‐sensorgraphsbutotherinformationmaybe
addedbycheckingtheboxesintheupperpartofthescreen.
GsensorXvalue:Front&Back(likeQuickbrakeorQuickStart)
GsensorYvalue:Left&Right(likeQuickTurn)
GsensorZvalue:Up&Down(likeprominenceanddepression)
“DriveData”icon
G‐Sensor:(Xaxis:red,Yaxis:green,Zaxis:blue,basedonthepositioningofthe
mainunit)isshownwiththedatareferencepointzero‐pointcalibratedandpositive
shocksas(+)andnegativeshocksas(‐).
Speed:GPSmeasuredspeedisdisplayedingrey.
Thespeed‐pulsemeasuredspeedisnotsupport.
RPM:TheRPMisnotsupport.
ALARM:Thealarmsaredisplayedonthebottomofthescreenwiththegreybar
meaningthetriggerisactivated.
