209297 – DCU5000 Drive Control Unit Page 35 of 42

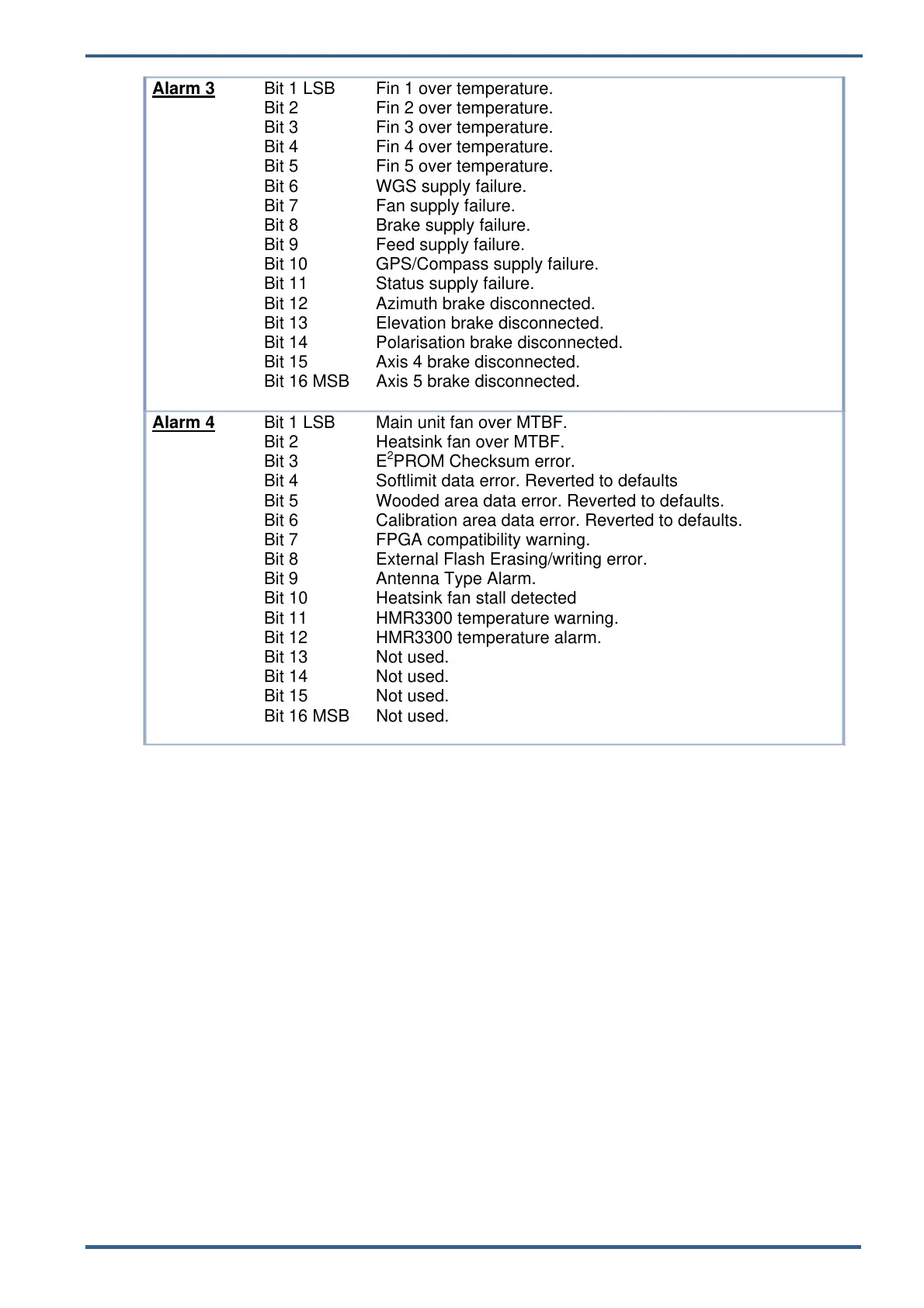

Alarm 3
Bit 1 LSB Fin 1 over temperature.
Bit 2 Fin 2 over temperature.
Bit 3 Fin 3 over temperature.
Bit 4 Fin 4 over temperature.
Bit 5 Fin 5 over temperature.
Bit 6 WGS supply failure.
Bit 7 Fan supply failure.
Bit 8 Brake supply failure.
Bit 9 Feed supply failure.
Bit 10 GPS/Compass supply failure.
Bit 11 Status supply failure.
Bit 12 Azimuth brake disconnected.
Bit 13 Elevation brake disconnected.
Bit 14 Polarisation brake disconnected.
Bit 15 Axis 4 brake disconnected.
Bit 16 MSB Axis 5 brake disconnected.
Alarm 4 Bit 1 LSB Main unit fan over MTBF.
Bit 2 Heatsink fan over MTBF.
Bit 3 E
2
PROM Checksum error.
Bit 4 Softlimit data error. Reverted to defaults
Bit 5 Wooded area data error. Reverted to defaults.
Bit 6 Calibration area data error. Reverted to defaults.
Bit 7 FPGA compatibility warning.
Bit 8 External Flash Erasing/writing error.
Bit 9 Antenna Type Alarm.
Bit 10 Heatsink fan stall detected
Bit 11 HMR3300 temperature warning.
Bit 12 HMR3300 temperature alarm.
Bit 13 Not used.
Bit 14 Not used.
Bit 15 Not used.
Bit 16 MSB Not used.
