Vislink L1700 User Manual

User Manual Focal Point
Useful Part Numbers
Issue No: M Page: 53
Ref: FOCL-ASUM-8xxx Copyright © 2017 Vislink plc
Cable ID
Unit
Part Number
OCP to IDU Cables
Sony RCP-1530
CARK-ASSY-2022
Hitachi RU-1500
RHD9-ASSY-2018
Panasonic
CARK-ASSY-2028
G Valley OCP400
(Non-Multiplex)
RHD9-ASSY-2015
G Valley OCP400
(Multiplex)
CARK-ASSY-2032
G Valley Tally
RHD9-ASSY-2017
Ikegami
CARK-ASSY-2029
OCP5
RHD9-ASSY-2014
DR07 Data Cables
Sony
DR07-ASSY-2003
Hitachi
DR07-ASSY-2012
Panasonic
DR07-ASSY-2004
G Valley
DR07-ASSY-2020
G Valley LDX80 Compact
DR07-ASSY-2021
Ikegami
DR07-ASSY-2016
L1500-Return Data
DR07-ASSY-2022
L1700 Return Data
CARK-ASSY-2021
ClipOn4 Data Cables
Sony
CCCU-ASSY-2029
Hitachi
CCCU-ASSY-2031
Panasonic
CCCU-ASSY-2032
G Valley
CCCU-ASSY-2035
Ikegami
CCCU-ASSY-2034
Table 7-2 Useful Cable Part Numbers

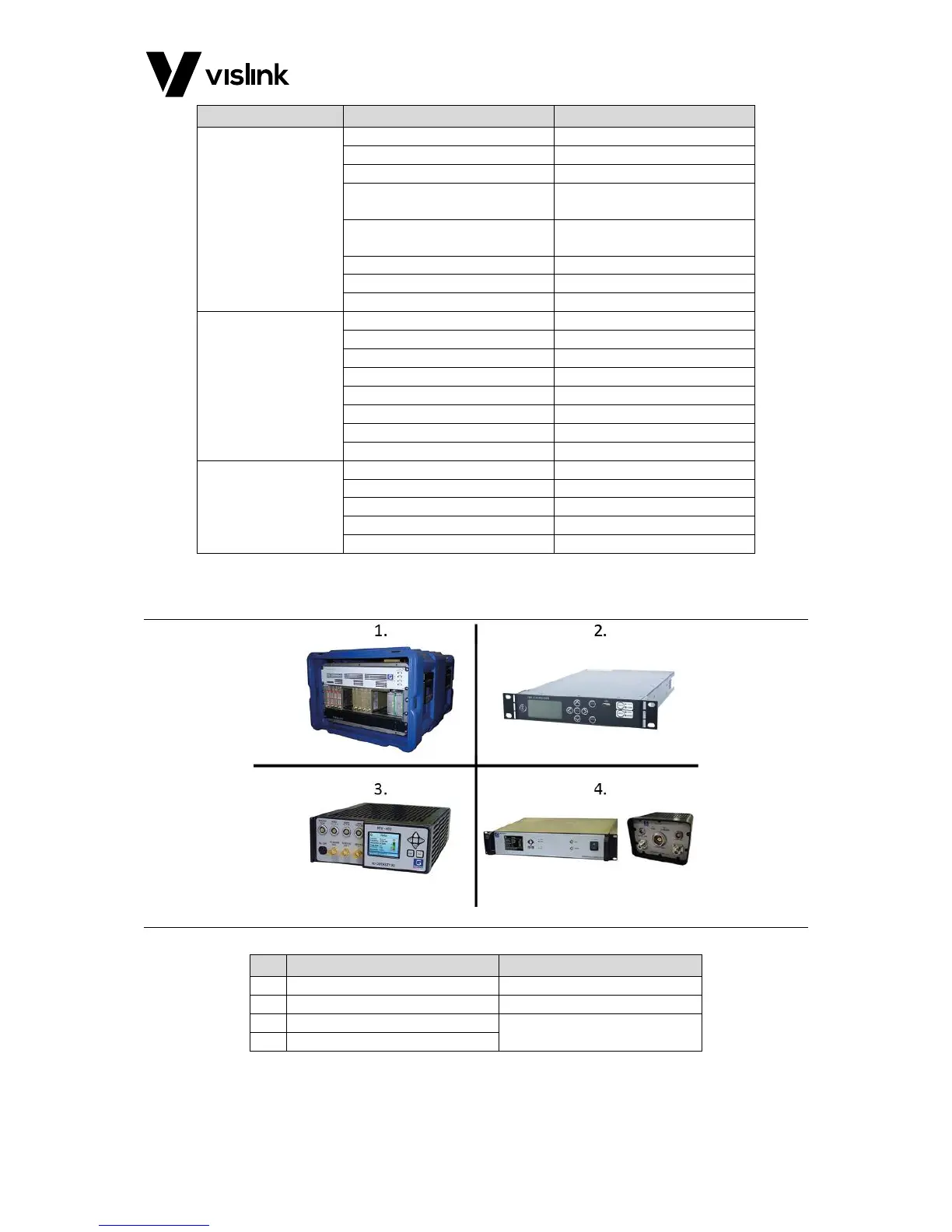

Figure 7-2 Wireless Camera Receivers
ID
Wireless Camera Receiver
Return Data Cable Part No.
1
MDR
CARK-ASSY-2025
2
L2174
CARK-ASSY-2024
3
MTV-HD3
CARK-ASSY-2027
4
MVL-HD3
Table 7-3 Wireless Camera Receivers ID Table
