Operators Control Panel (OCP5) OCP5-ASSY-7XXX
Issue No: M Page: 43
Ref: FOCL-ASUM-8xxx Copyright © 2017 Vislink plc

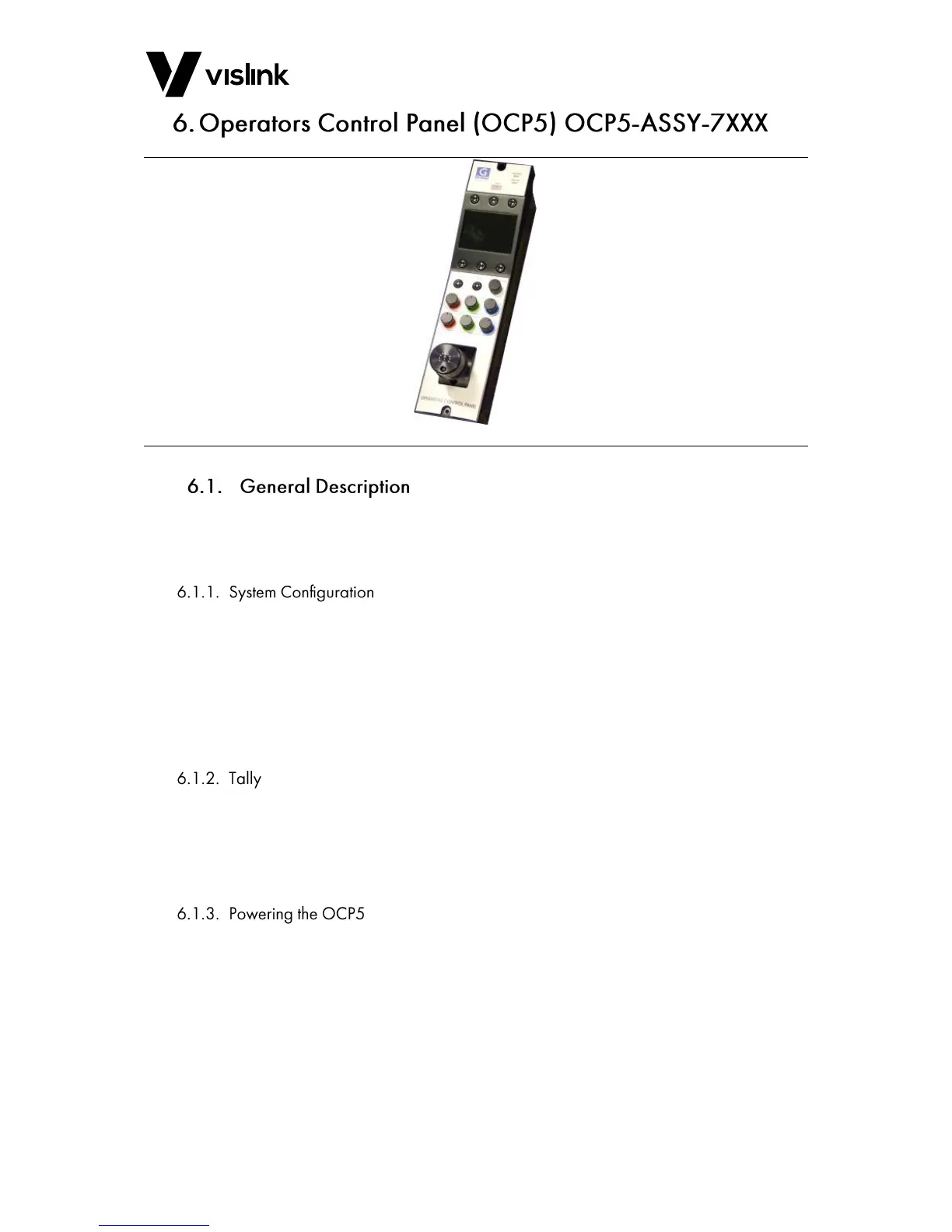

Figure 6-1 Operators Control Panel Overview
The Vislink Operator’s Control Panel (OCP) is designed for use in conjunction with the
FocalPoint Camera Control system and Data Receiver. The unit is designed to fit a standard
OCP/RCP slot.
The OCP5 may be operated in two ways:
One-way data to the camera, using the UHF FocalPoint Transmitter.
Two-way data, using a combination of UHF FocalPoint Transmitter and return data
via the user data function for the video link transmitter and receiver.
NOTE: If required, you can turn the Return Data on and off via the OCP5 menu system and
connected directly to the OCP.
Tally may be connected either directly to the OCP5 via the Mixer connector or to the
Camera Control Interface Unit. Tally control may be either:
Dry contacts.
Wet contacts – nominally a 5 VDC voltage in either polarity.
The OCP5 is powered in either of the following ways:
Using the D-type connector OCP I/F (see Section 6.1.4). DC power is derived from the
Camera Control Interface unit.
External DC power input using the XLR4 connector (see Section 6.2.4).
