Vislink L1700 User Manual

User Manual Focal Point
Data Receiver
Issue No: M Page: 42
Ref: FOCL-ASUM-8xxx Copyright © 2017 Vislink plc

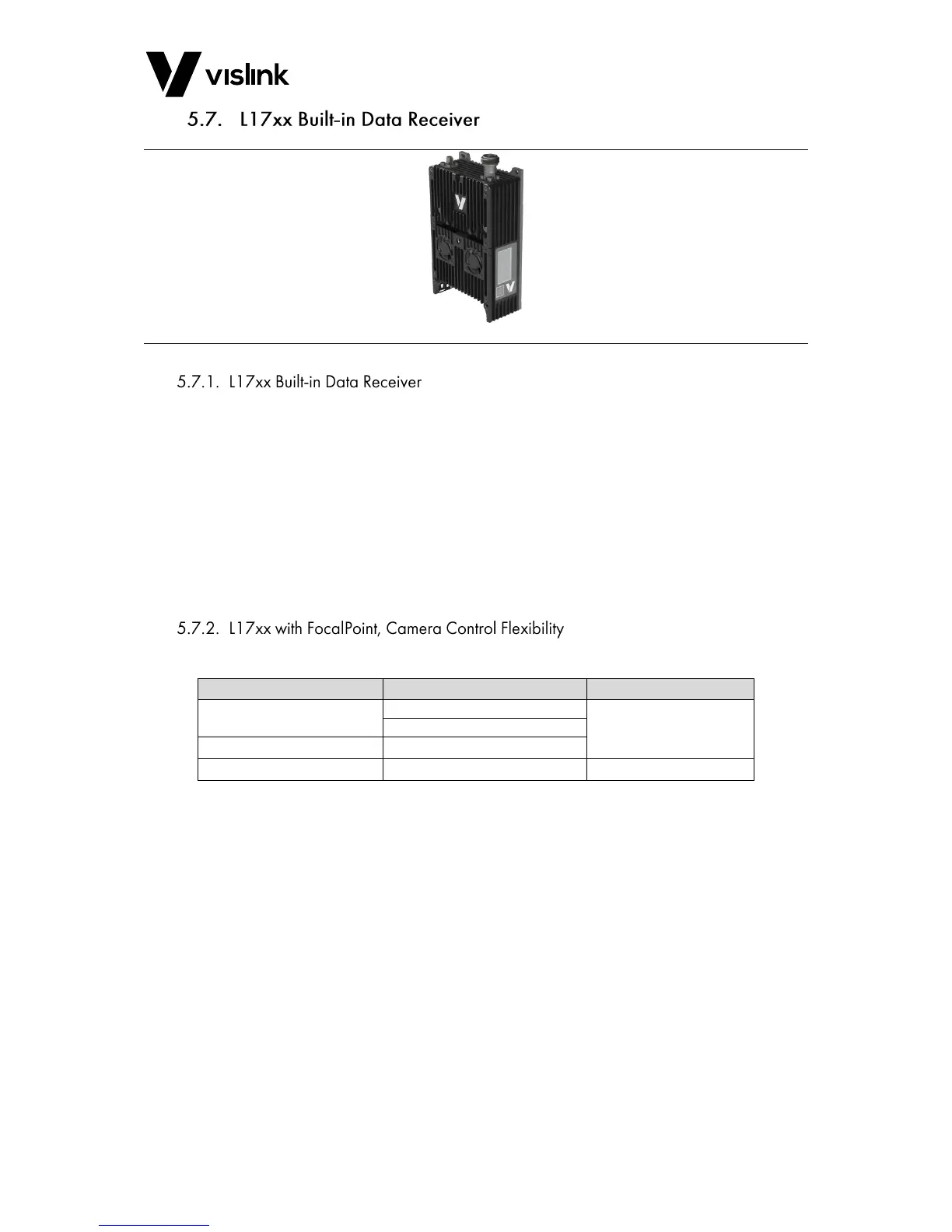

Figure 5-6 L1700 Camera Transmitter
Two versions of the L17xx software are available.
You need to program the L17xx for the following intended applications:
 L17xx with FocalPoint Camera Control
 L17xx with L1255 Camera Control
NOTE: The Camera Control License activates either Camera Control option. However, the
software version installed dictates which camera control option is available.
Once you activate the Camera Control License, you can program the L17xx between
software versions to switch application requirements (FocalPoint or L1255).
Camera Configuration options:
Manufacturer
Data Mode
Multiplex Availability
Sony Manufacturer
One-way data mode
Multiplex available
Return data mode
Hitachi Manufacturer
One-way & Return data mode
Grass Valley Manufacturer
Return data mode
Multiplex NOT available
Table 5-2 L17xx with FocalPoint Camera Control Configuration Options
NOTE: FocalPoint ‘Scan Mode’ is not available with the L17xx Camera Control. Refer to the
L1700 manual for full product information and safety awareness.
