2 D-302893 NEXT CAM PG2, NEXT CAM K9-85 PG2 Installation Instructions
Figure 2. General Guidelines
Important! The Next CAM K9-85 PG2 detector is tolerant to 38 kg (85 lb) animals moving on the floor or climbing
on furniture as long as the activity takes place below 1 m (3 ft). Above the 1 m (3 ft) height limit, the detector is
tolerant to 19 kg (42 lb) pets, but the pet immunity will decrease as the pet gets closer to the detector. It is therefore
recommended to select a mounting location that minimizes potential close proximity of animals.
2.2 Mounting
Notes:
1. Mount the detector so that its orientation is perpendicular to the expected intrusion path.
2. For installations of detector at 2m high, Dead zone is 2ft at 0m high and 0.5ft at 1.5m high.

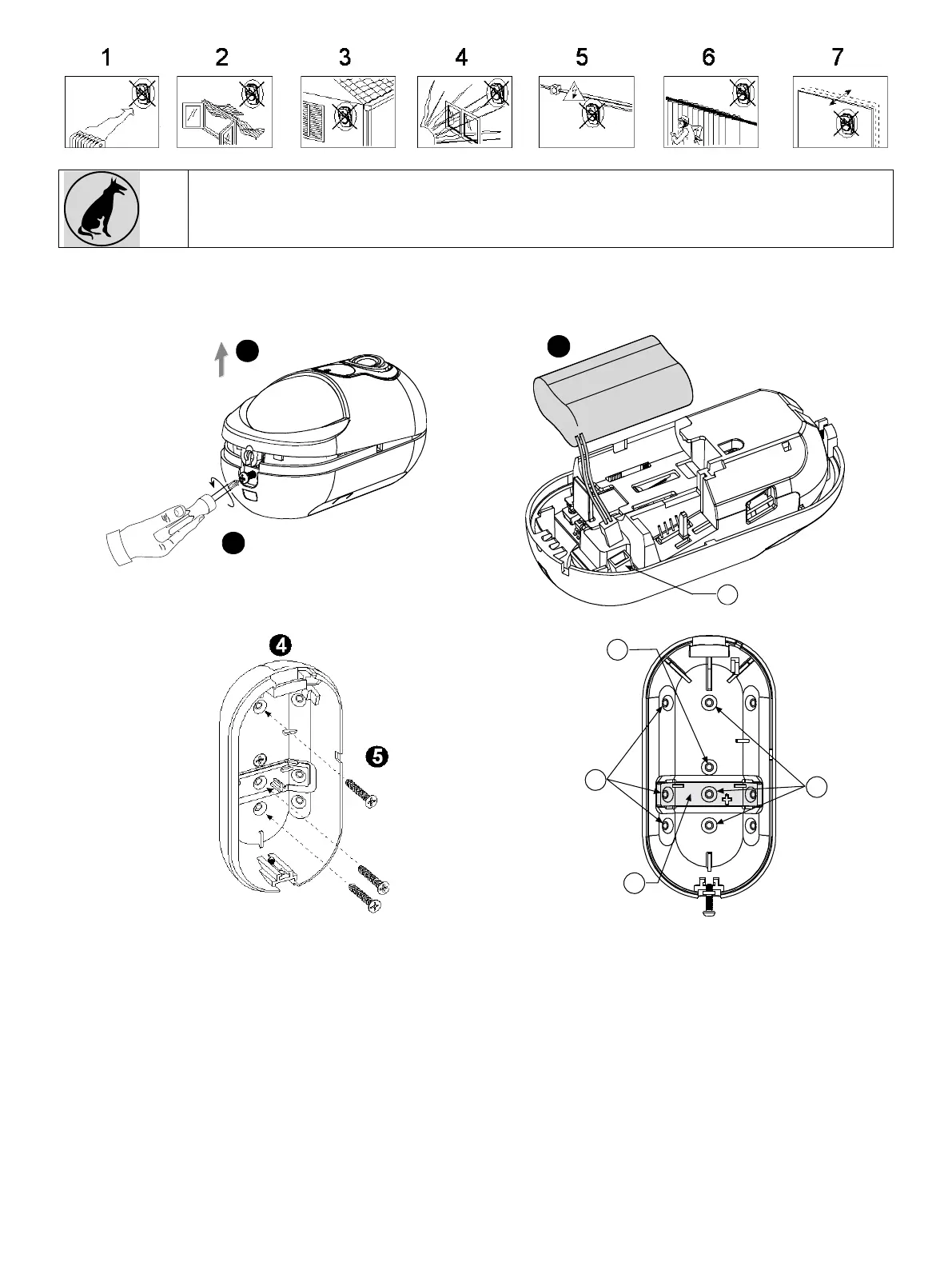

Figure 3a. Mounting on Wall
1. Release screw
2. Remove cover from base
3. Position the battery in the battery holder and insert the battery connector terminal into the battery connector
4. Press the base against the wall at the selected mounting position and mark the drilling points through the mounting holes.
5. Drill 2 holes or 3 holes (for back tamper) and attach the base to the wall using the screws.
A. Battery connector.
B. BR-1 Knockout
C. Mounting knockouts (for surface mounting)
D. Break-away base segment (shaded)
CAUTION! THE BACK TAMPER SWITCH WILL NOT PROTECT THE UNIT UNLESS THE BREAK-AWAY BASE SEGMENT IS
SECURED TO THE WALL WITH AT LEAST ONE SCREW.
Note: Back Tamper must be enabled for UL installations.
E. Mounting knockouts (3 of 6 – for corner mounting).
