DE5465 3
Detector 1 & 2 Total (Sum) Current: 100* mA max.
High
Current / Short Circuit Protection: All outputs are
protected (current limited).
* Total PowerMax+ output current (of INT & EXT sirens,
PGM output and detectors) cannot exceed 600 mA.
Total INT & EXT sirens current consumption cannot
exceed 550 mA. For UL installations, total output
current cannot exceed 550 mA.
Backup Battery (provides power for at least 24 hours),
according to the purchase option:
Option 1 (applicable for UL installations): 7.2V 2100 mAh,
rechargeable NiMH battery, p/n GP211ATH6XM2,
manufactured by GP, trickle charge 80 mA approx.
Option 2: 9.6V Nickel Cadmium or Nickel Metal
rechargeable battery pack, 650 to 1800 mAh.
Note: To use a non-Visonic battery pack, its battery snap
should have proper polarity!
Battery Test: Once every 10 seconds.
2.4 Communication
Built-in Modem: 300 baud, Bell 103 protocol
Data Transfer to Local Computer: Via RS232 serial port
Report Destinations: 2 central stations, 4 private
telephones, 1 pager.
Reporting Format Options: SIA, Pulse 4/2 1900/1400 Hz,
Pulse 4/2 1800/2300 Hz, Contact ID, Scancom.
Pulse Rate: 10, 20, 33 and 40 pps - programmable
Message to Private Phones: Tone or voice
Message to Pager: PIN No
.ÎAlarm Type ÎZone No.
2.5 Physical Properties
Operating Temp. Range: 32°F to 120°F (0°C to 49°C)
Storage Temp. Range: -4°F to 140°F (-20°C to 60°C)
Humidity: 85% relative humidity, @ 30°C (86°F)
Size: 9-13/16 x 7-1/2 x 1-3/4 in. (250 x 190 x 44 mm)
Weight: 880g (1.94 pounds) without batteries
Color: Ivory and charcoal gray
3. INSTALLATION
3.1 Unpacking the Equipment
Open the cardboard packing box and check whether all
items have been included. If you find out that an item is
missing, contact your vendor or dealer immediately.
3.2 Supplying Power to the Unit
Enrolling the transmitting devices’ ID codes in the Power-
Max+ memory will be easier if carried out before actual
installation, with all detectors and the control panel on a
work bench. It is therefore necessary to power up the
PowerMax+ temporarily from the external power trans-
former (see figure 3). Alternatively, you may power up
from the backup battery, as shown in figure 1.
Disregard any “trouble” indications that may appear
(due to lack of battery or lack of telephone line connection).

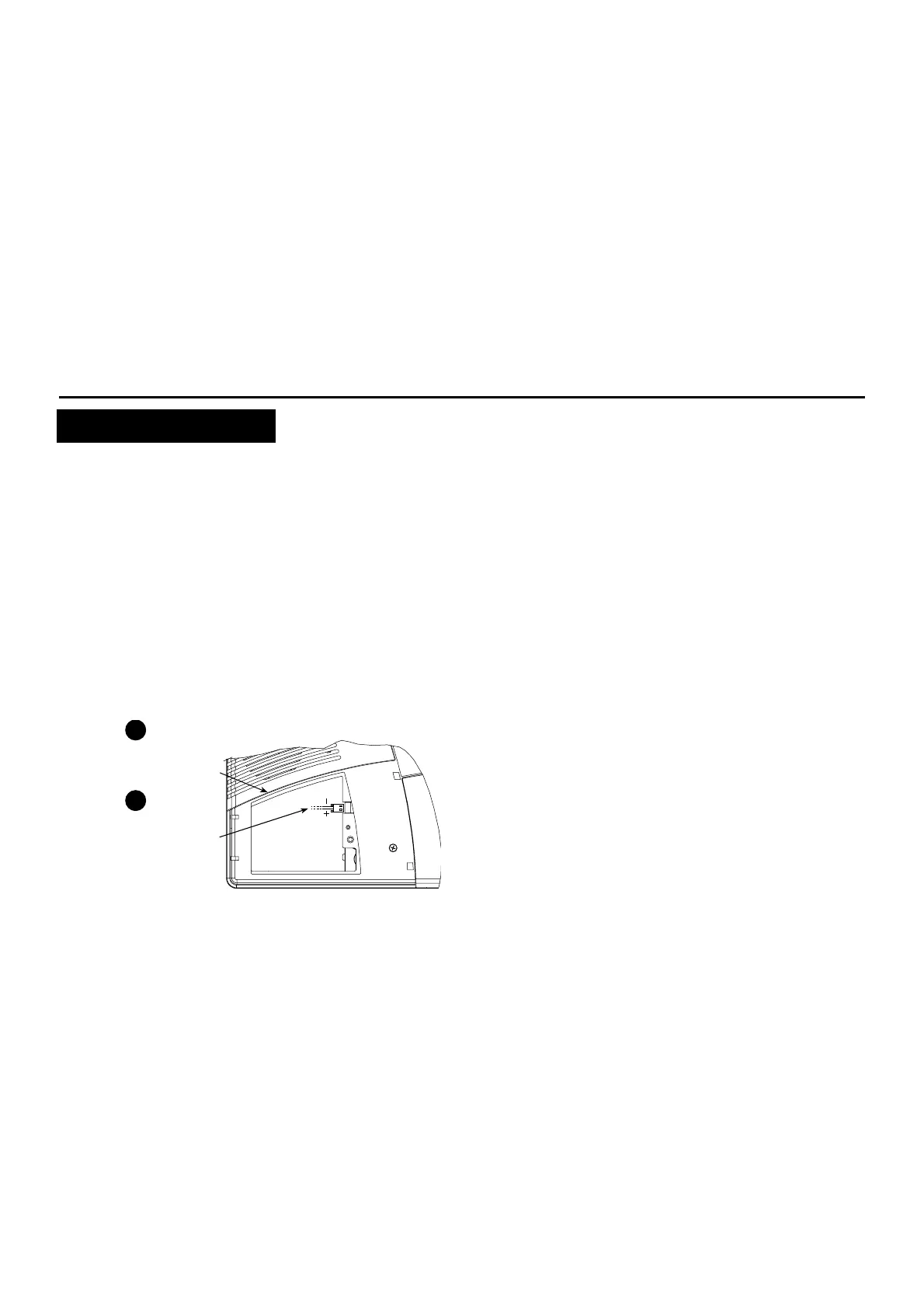

Remove battery area cover
(see fig. 4, step 3) and
remove battery compartment
cover (1 screw).
Connect rechargeable
battery pack (see
specifications) to the battery
connector. Afterwards
remount battery area and
battery compartment covers.
1
2
Figure 1 - Backup Battery Insertion
3.3 Programming
It pays off to plan ahead - use the tables in appendices A
and B at the end of this guide to register the intended
location of each detector, the holder and assignment of
each transmitter and the control plan for the X-10 units.
Gather up all transmitters and detectors used in the
system and mark each one in accordance with your
deployment plan.
Program the system now as instructed in the
PowerMax+ Programming Guide.
3.4 Mounting
PowerMax+ mounting process is shown in figure 2.
3.5 Wiring
PowerMax+ wiring is shown in figure 3.
Extract the screw terminal blocks one by one and make
the necessary connections. When done, plug each
terminal block onto its PCB mounted pins.
You will need 6-lead RJ-11 cord(s) for telephone line or
telephone line and telephone set.
