MGW Ace Decoder HEVC Decoding Appliance
User Manual, Version 1.0 10

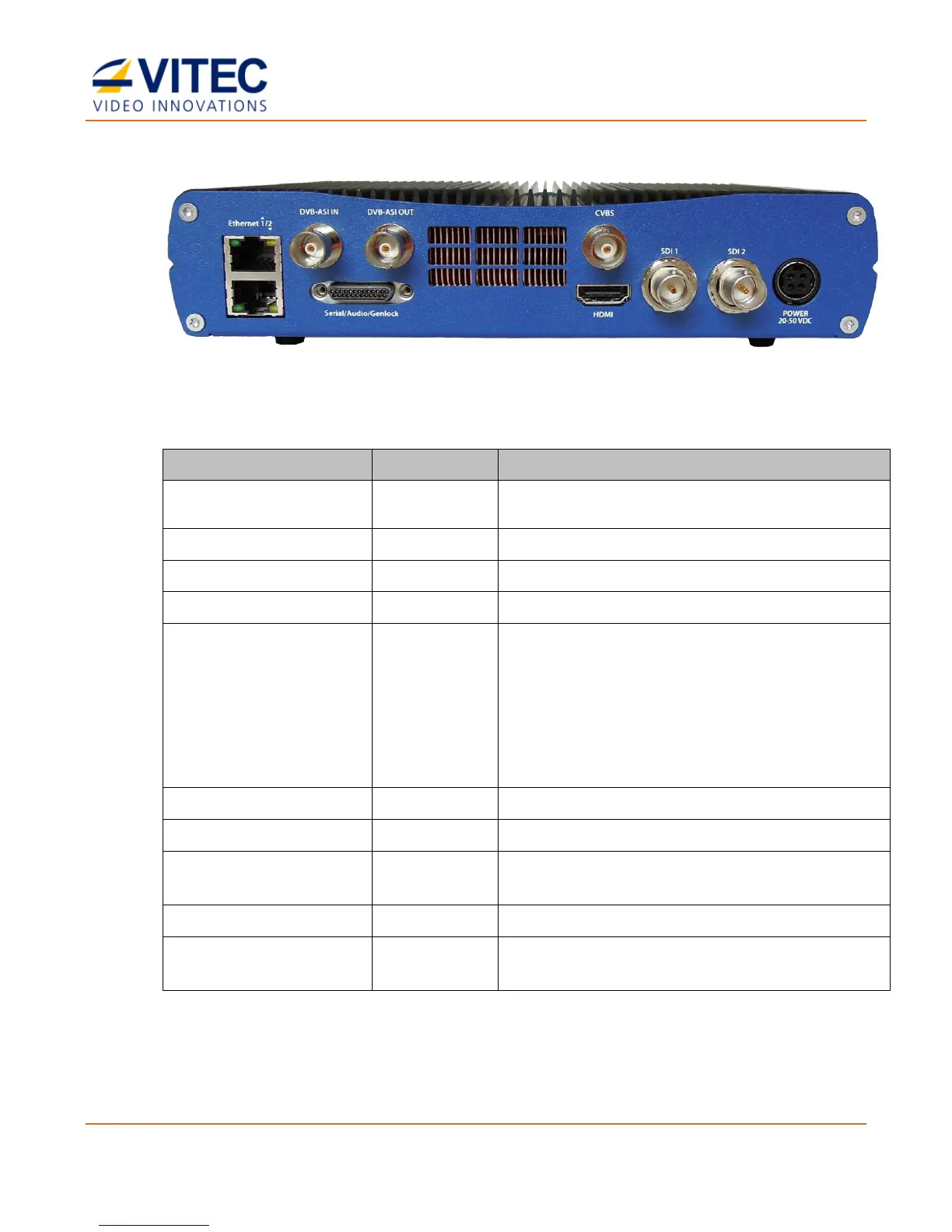

MGW Ace Decoder Rear Panel
Figure 2-2: MGW Ace Decoder Rear Panel
Connector Label
Connectors
Description
Ethernet 1
RJ-45
Gigabit Ethernet for streaming and management.
Ethernet 2
RJ-45
Gigabit Ethernet for streaming and management
DVB ASI IN
BNC
DVB ASI input (currently not in use).
DVB ASI OUT
BNC
DVB ASI output (currently not in use).
Serial/Audio/Genlock
Multi-pin
connector
Breakout cable for audio outputs:
Digital Audio AES x2
Balanced Analog Stereo Audio
Unbalanced Analog Stereo Audio
Genlock (future)
Serial for KLV/STANAG/CoT output (future)
CVBS
BNC
Composite output
SDI1
BNC
12G-SDI output (up to 4Kp60)
SDI2
BNC
SD-SDI output (downscale version of SDI1
output)
HDMI
HDMI Type A
HDMI2.0 output (up to 4Kp60)
POWER 20-50 VDC
Multi-pin
connector
Power input.
