1.6 - MECHANICAL SETTINGS
Unpacking / Installing mySelective.com
CHAPTER 1 9

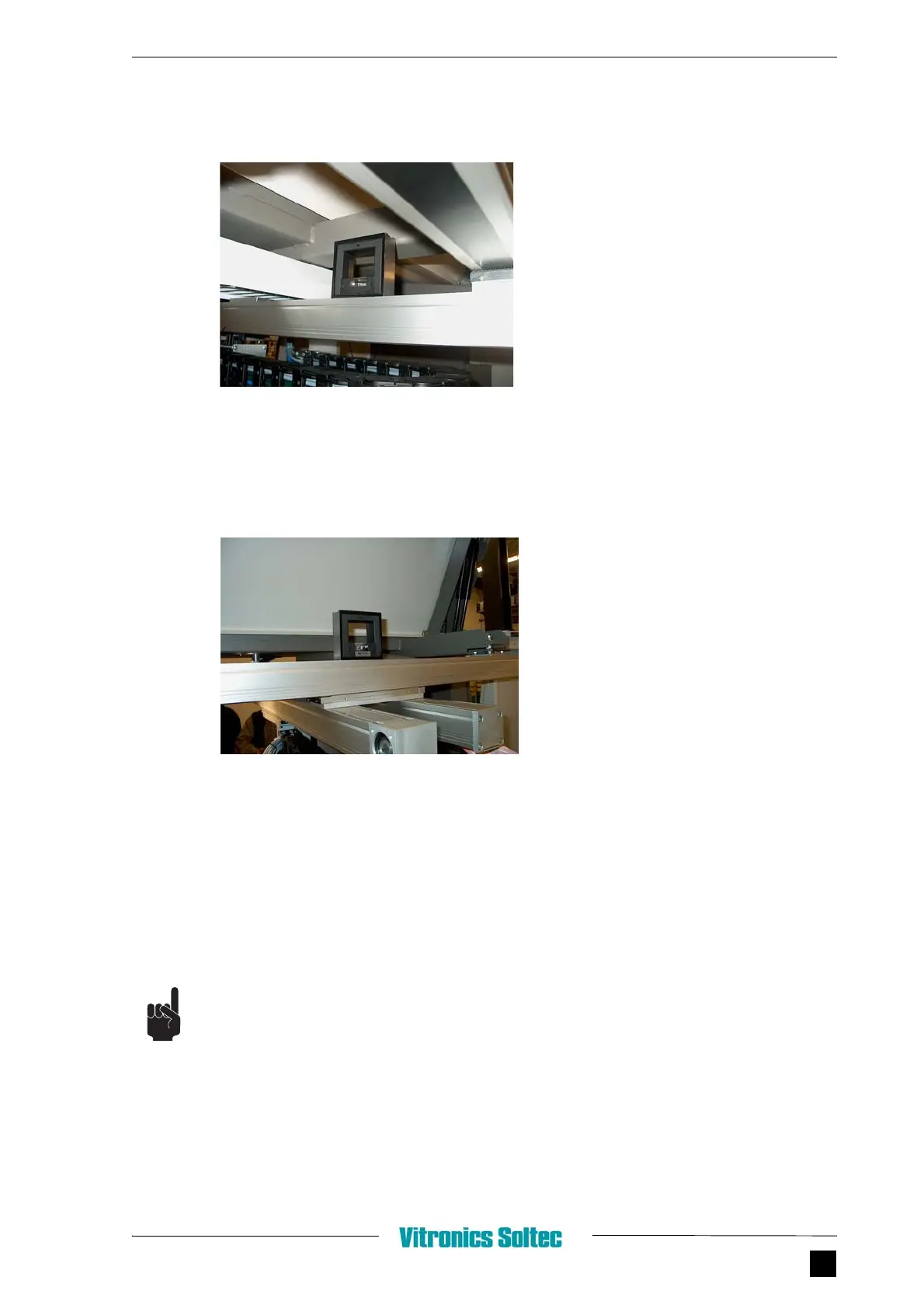

6. Place spiritlevel on Y-axis
FIGURE 1.9 Y-AXIS
7. Level the machine by adjusting the leveling pads.
8. Control backside X-axis.
FIGURE 1.10 BACKSIDE X-AXIS
9. When machine is leveled, tighten the nuts (A). See Figure 1.7.
Don’t forget to remove the spiritlevel after measuring!
After this procedure the machine is mechanically correct installed.
The machinepoints for camera position, conveyor- and fluxing-stations are factory set.
