10 CHAPTER 1
1.6.2 FILLING THE SOLDERPOT
There are two different ways to fill the solderpot:
1. Filling with granulated solder.
When granulated solder is used: Fill solderpot equally.
2. Filling with solderbars.
When filled with bars, its impossible to melt them on the heated sides of the solderpot. There-
fore the sumps must be removed.
Make sure the bars are placed against the heated sides of the solderpot.

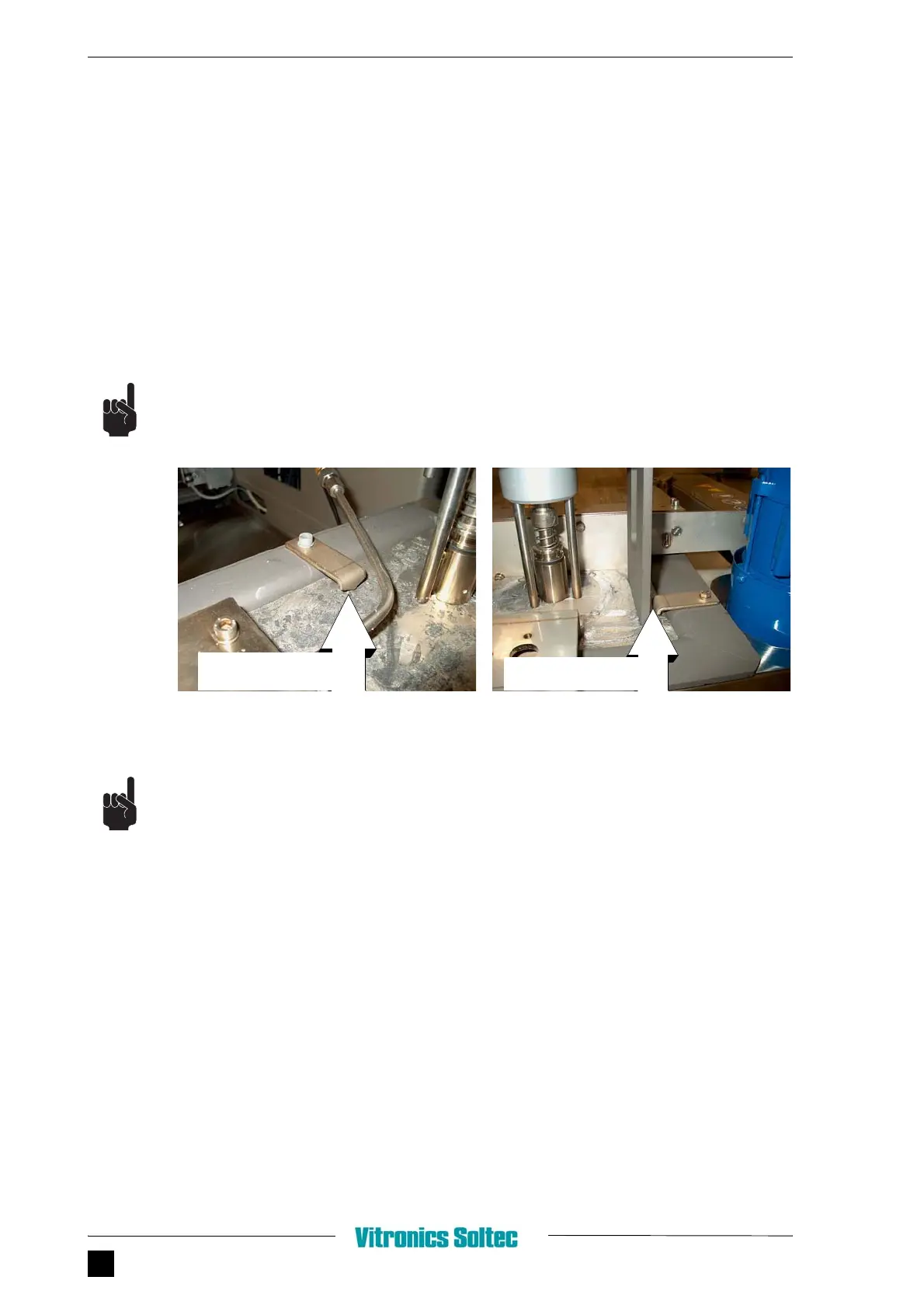

FIGURE 1.11 MAXIMUM SOLDERLEVEL
During heating up and filling the solderpot, it is advised to use in the direct area of the solderpot
an exhaust system.
Always wear protective clothing & glasses when working on the machine.
1.7 INSTALLATION SHEET
See next pages.
Max solderlevel
SelectWave
Max solderlevel
MultiWave
