Vitzro VITAC 200 - Product Dimensions and Installation Guide; Panel Installation Guide

19

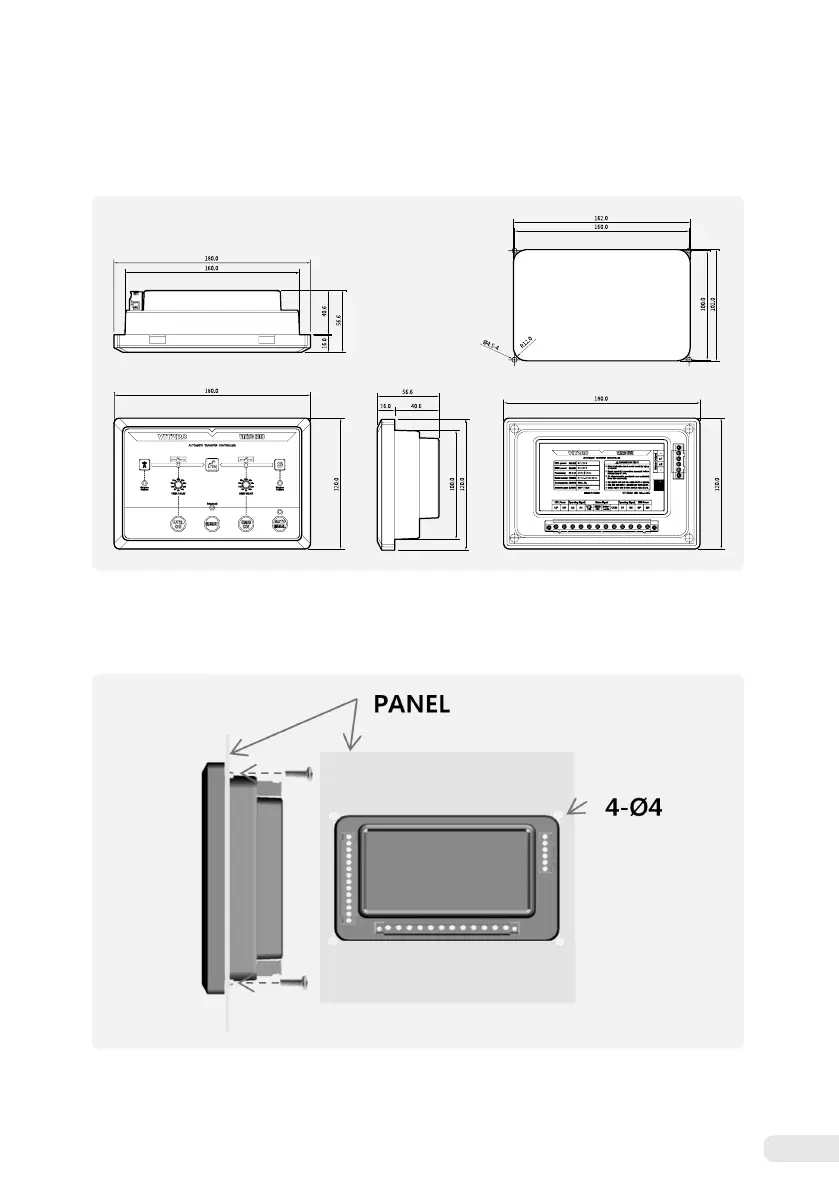

6. Dimension
Appearance and dimension : 180(W) x 120(H) x 56.6(D) (mm)
The following figure shows how to install the VITAC 200 and the installation conditions.
7. Installation
※
VITAC 200 penetrates into the panel when installed. M4×L12 bolts are used (based on 3t panel thickness).
