DLP Projector—User’s Manual
Views of Projector Parts

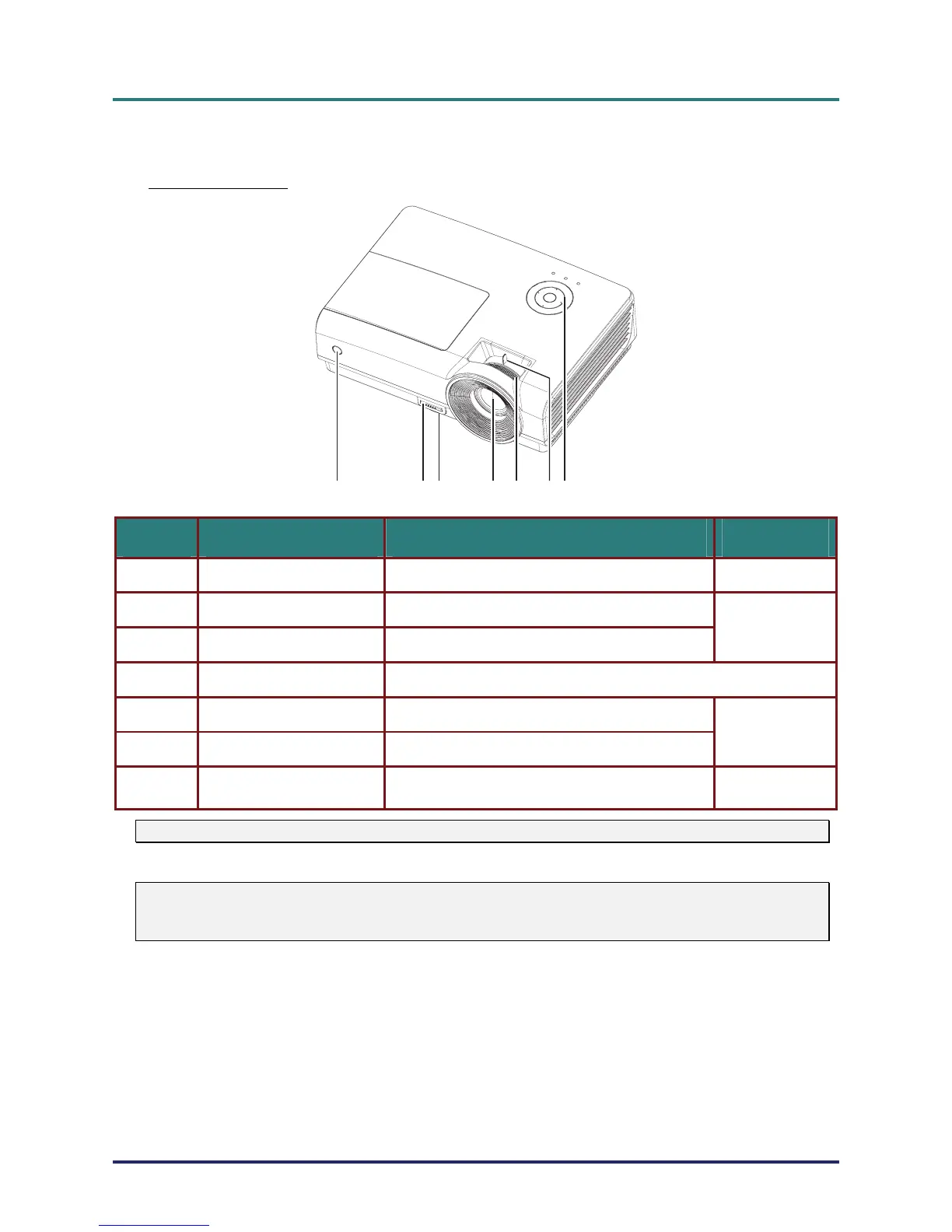

Front-right View
1
2
3
4
5
67
ITEM LABEL DESCRIPTION SEE PAGE:
61.
IR receiver Receive IR signal from remote control
2.
Height-adjuster button Push to release height adjuster
15
3.
Height adjuster Adjusts level of projector
4.
Lens Projection Lens
5.
Focus ring Focuses the projected image
16
6.
Zoom ring (*) Enlarges the projected image
See Top view—On-screen Display (OSD) buttons
and LEDs.
3
7.
Function keys
Note: (*)N
ot available in
D855ST.
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
– 2 –
