DLP Projector—User’s Manual
– 4 –

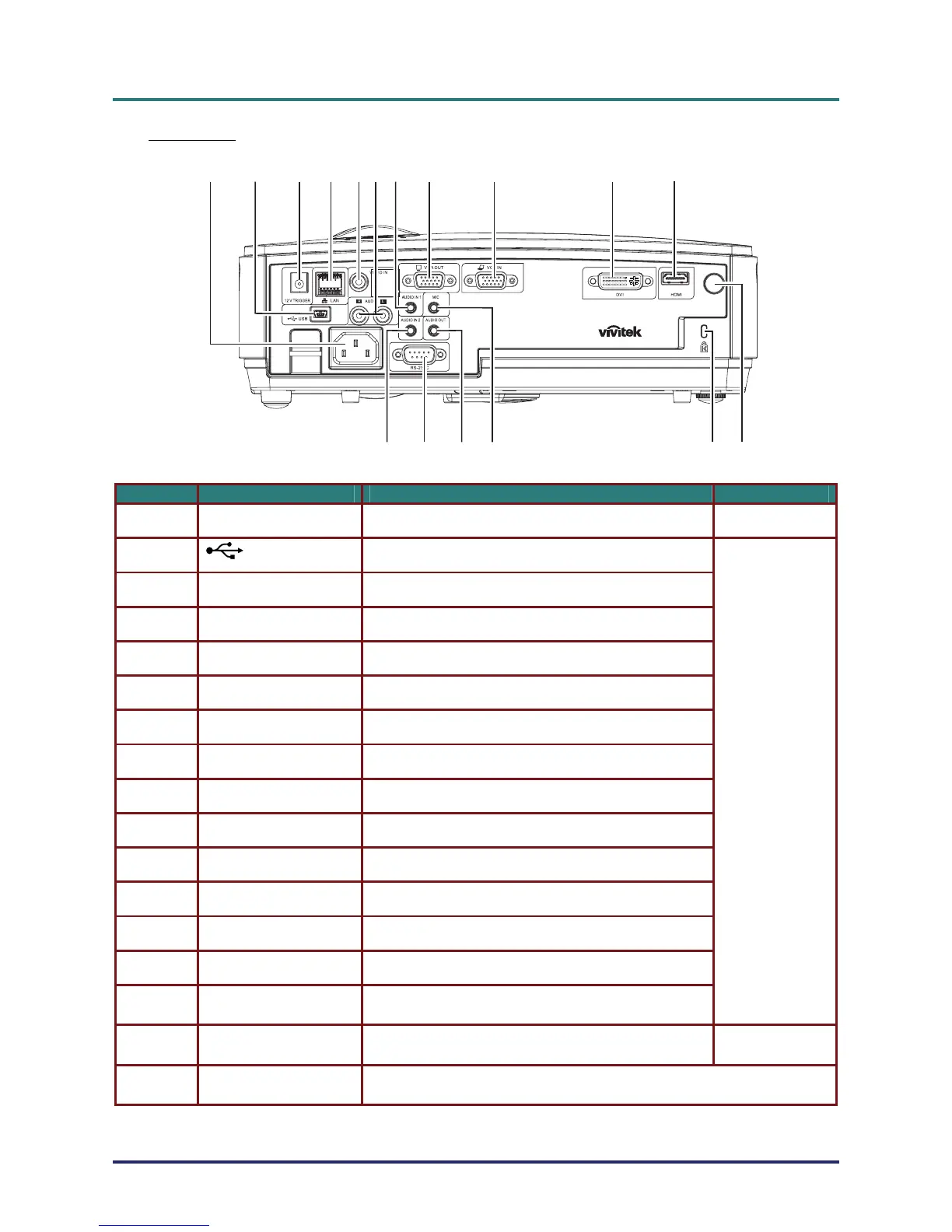

Rear view
1
2
3
4
567
8
9
10 11
12
13
14 15 16
17
ITEM LABEL DESCRIPTION SEE PAGE:
1. AC IN Connect the POWER CABLE 11
2. (USB) Connect the USB CABLE from a computer
3. 12V TRIGGER Connect the DC 12V OUT
4. LAN Connect a LAN CABLE from Ethernet
5. VIDEO IN Connect the COMPOSITE CABLE from a video device
6. AUDIO IN (L and R) Connect the AUDIO CABLES from a audio device
7. AUDIO IN – 1 Connect an AUDIO CABLE from the input device
8. VGA OUT Connect the RGB CABLE to a display
9. VGA IN Connect the RGB CABLE from a computer and components
10. DVI Connect the DVI CABLE to a display
11. HDMI
TM
Connect the HDMI
TM
CABLE from a HDMI
TM
device
12. AUDIO IN – 2 Connect an AUDIO CABLE from the input device
13. RS-232C Connect RS-232 serial port cable for remote control
14. AUDIO OUT Connect an AUDIO CABLE for audio loop through
15. MIC Connect the Microphone input device
10
16. Kensington Lock Secure to permanent object with a Kensington® Lock system 45
17. IR receiver Receive IR signal from remote control
To Next Page
