4

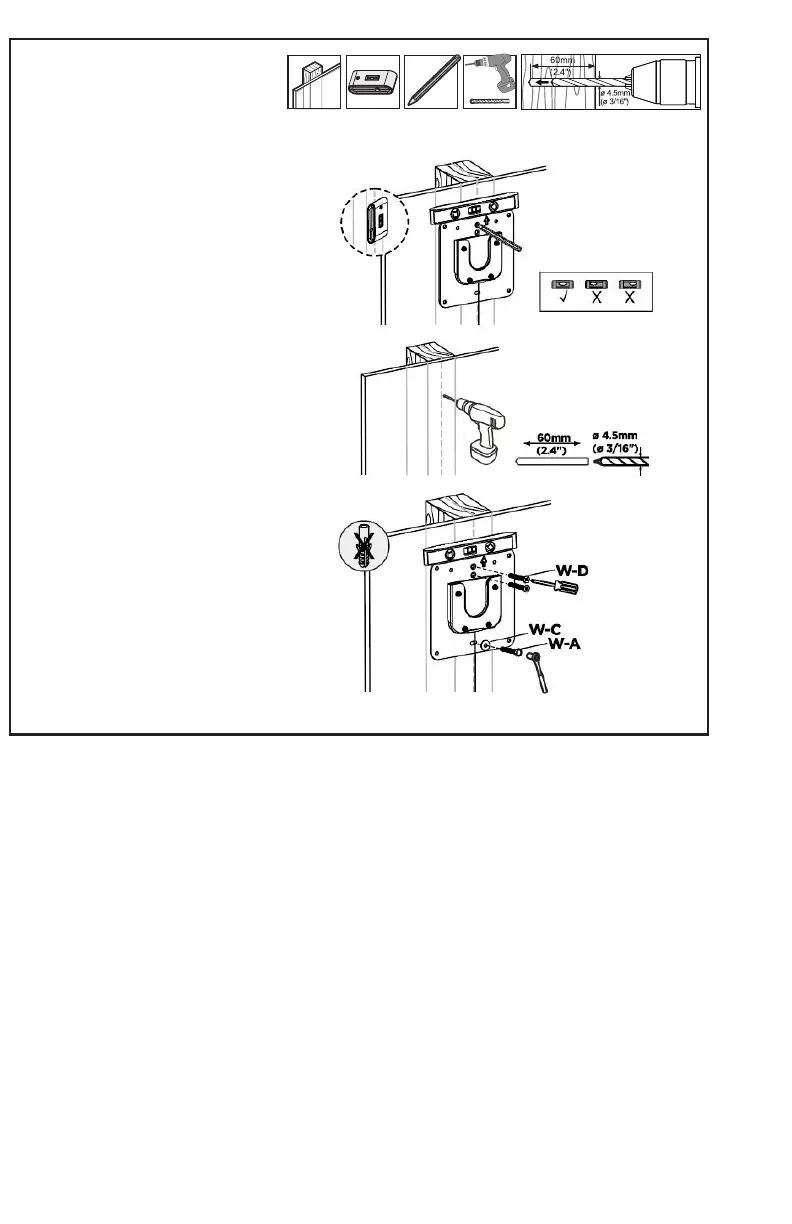

STEP 2
OPTION A: WOOD STUD WALL
Using the center holes on the mount,
mark drilling locations. Use of a
stud finder is highly recommended.
Drill 2.4” (60mm) deep holes using
a 3/16” (4.5mm) drill bit, and secure
the mount to the wall using flat head
screws (W-D) in upper two holes, and
hex head screw (W-A) with washer
(W-C) in the lower hole.
