Vivotek AM-105 - Package Contents and Revision History; Package Contents; Revision History; Compatible VIVOTEK Cameras

2

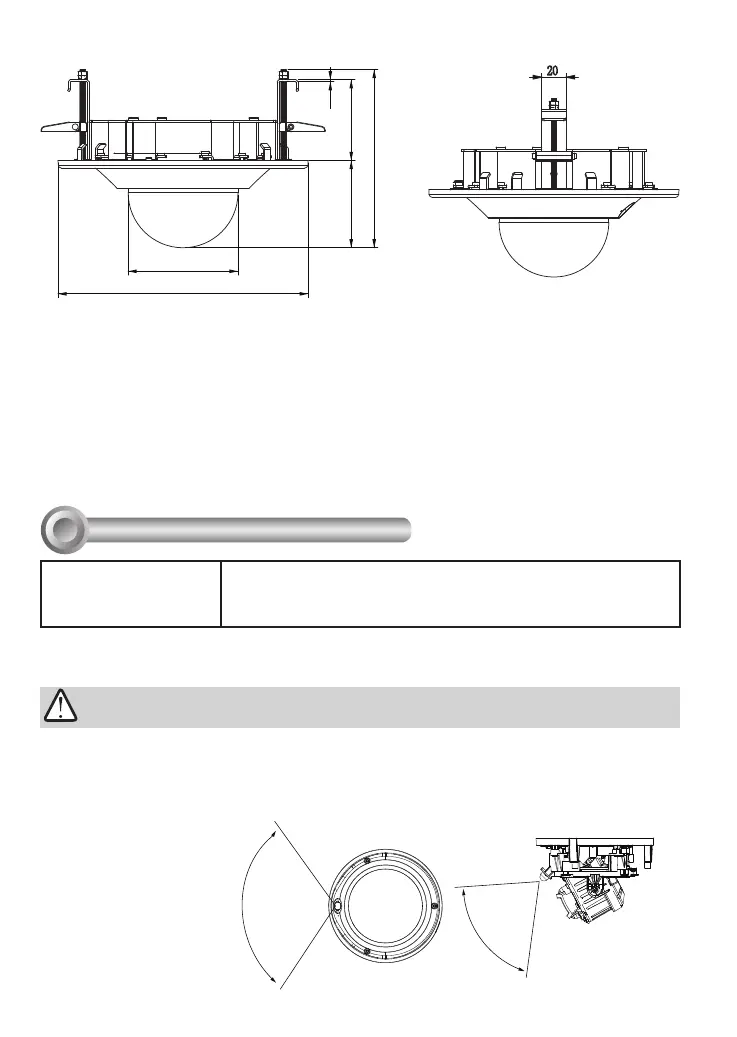

AM-105 Recessed-mount Bracket Mechanical Drawing
90
205
71,5
146,1
66,2
1,6
20
Ø
Ø
Compatible VIVOTEK Cameras
I
Fixed Dome series
FD816BA-HF2, FD816BA-HT, FD8182-F2, FD8182-T,
FD9171-HT, FD9181-HT, FD9165-HT, FD9167-H, FD9167-HT,
FD8177-HT, FD9187-H/-HT
You may also refer to VIVOTEK's website for the list of supported models. Support for other models can
be available through time.
77.3°
121°
5M
5M
Before installing your camera, make sure the built-in PIR (Passive Infrared Sensor) can be
directed toward the area of interest, where possible intrusion may occur. (The sensitivity
of PIR sensor depends on the object size and temperature differences between the object
and the background environment.)
Top View
Side View
IMPORTANT:
Package Contents
• Recessed-mount bracket
• Screws: 3x round head M4x8L; 3x round head
M3x8L .
• Alignment sticker
Revision History
• Rev. 1.0: Initial release.
• Rev. 1.1: Updated for new models–
FD816BA-
HF2, FD816BA-HT, FD8182-F2, FD8182-T, FD9171-
HT, FD9181-HT, FD9165-HT, FD9167-H, FD9167-HT,
FD8177-HT
• Rev. 1.2: Added FD9187-H, -HT
• Screwdriver: T10 stardriver
