Vivotek FD7132 Quick Installation Guide

EN - 6

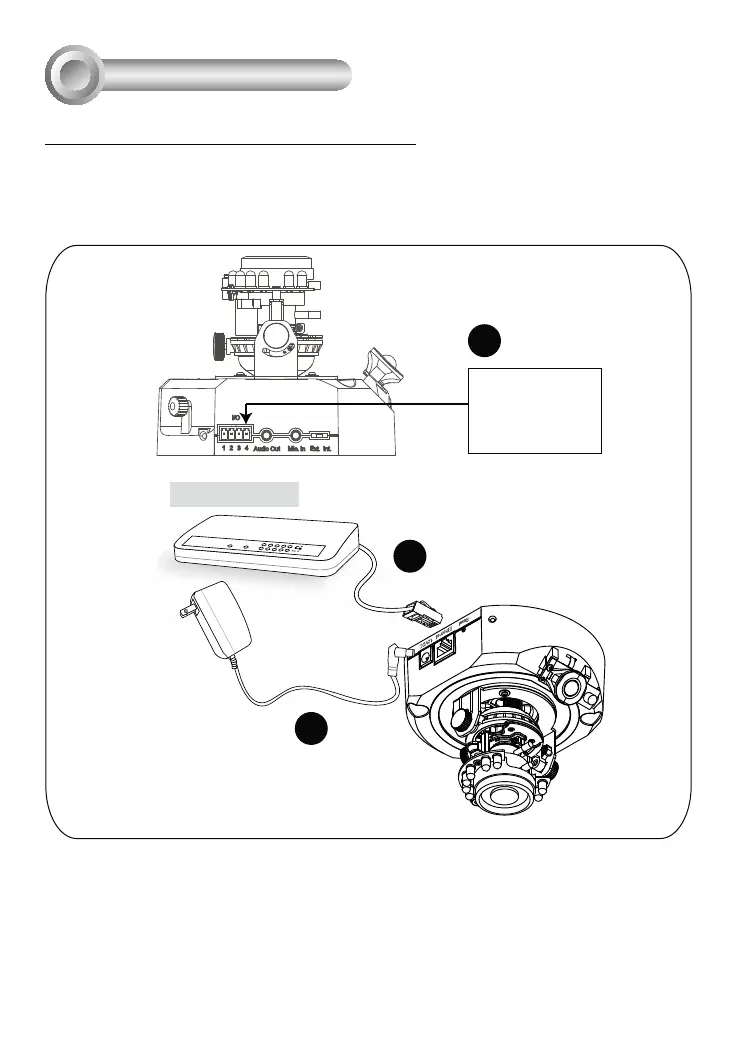

General Connection (without PoE)
1. If you have external devices such as sensors and alarms, make connections from gen-
eral I/O terminal block.
2. Connect the camera to a switch via a Ethernet cable.
3. Connect the supplied power cable from the camera to a power outlet.
POWER
COLLISION
LINK
RECEIV E
PARTITION
1
2
3
4
5
2
3
Ethernet switch
Network Deployment
4
1: Power
2: Digital output
3: Digital input
4: Ground
Audio Out Mic. In Ext. Int.
1 2 3 4
I/O
1
