VIVOTEK
14 - User's Manual

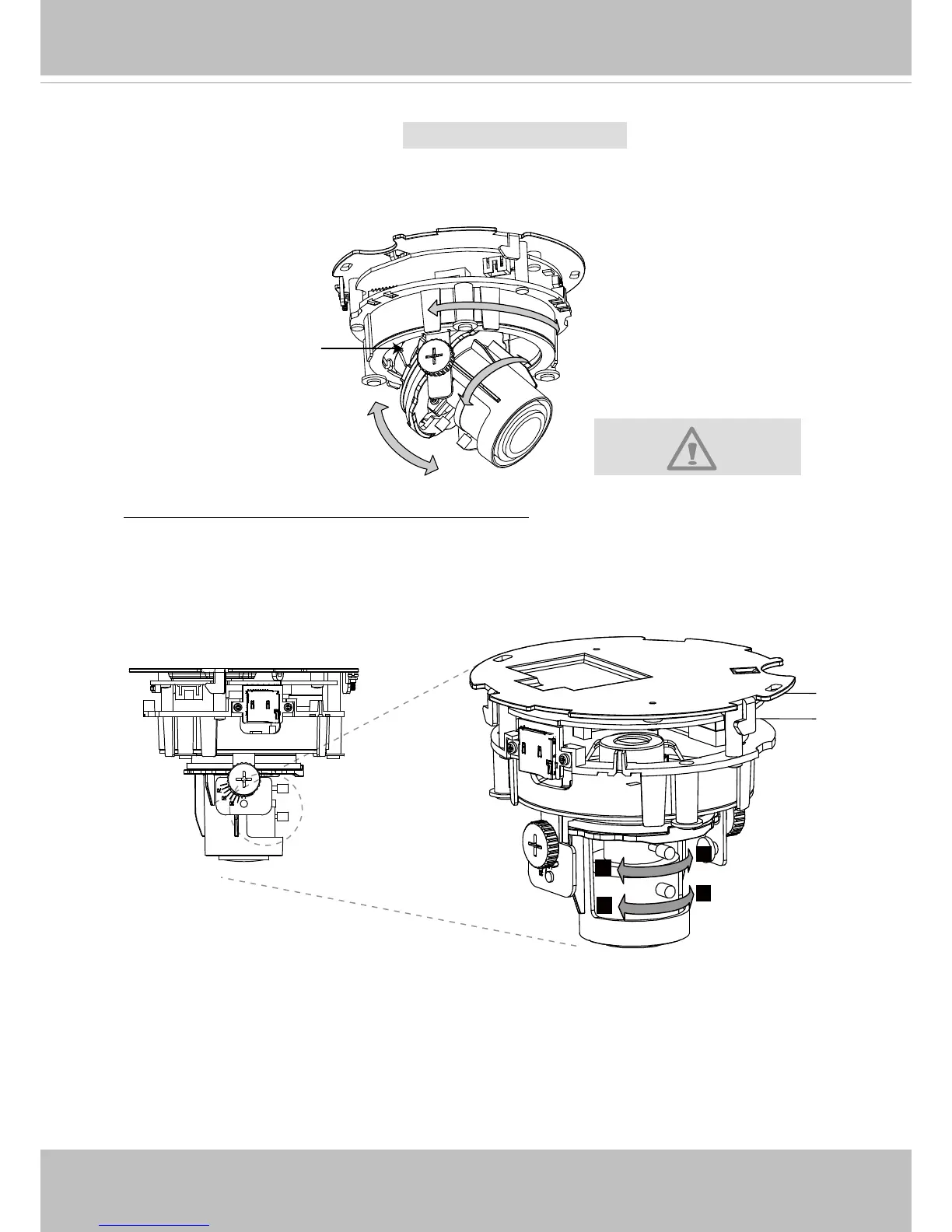

The sophisticated 3-axis mechanism design offers very exible, easy hardware installation
for either ceiling or wall mount.
3-axis Mechanism Design
Pan 350°
Rotate 340°
Tilt Adjustment Screw
DO NOT over rotate the lens.
Doing so will damage the
camera lens module.
Tilt 70°
W
T
8
N
To adjust the zoom factor and focus range
1. Loosen the zoom controller and then adjust zoom factor by moving the controller left
and right. Upon completion, tighten the zoom controller screw.
2. Loosen the focus controller and then adjust focus range by moving the controller left
and right. Upon completion, tighten the focus controller screw.
