Vivotek FD8131 User Manual

VIVOTEK
User's Manual - 9
Network Deployment

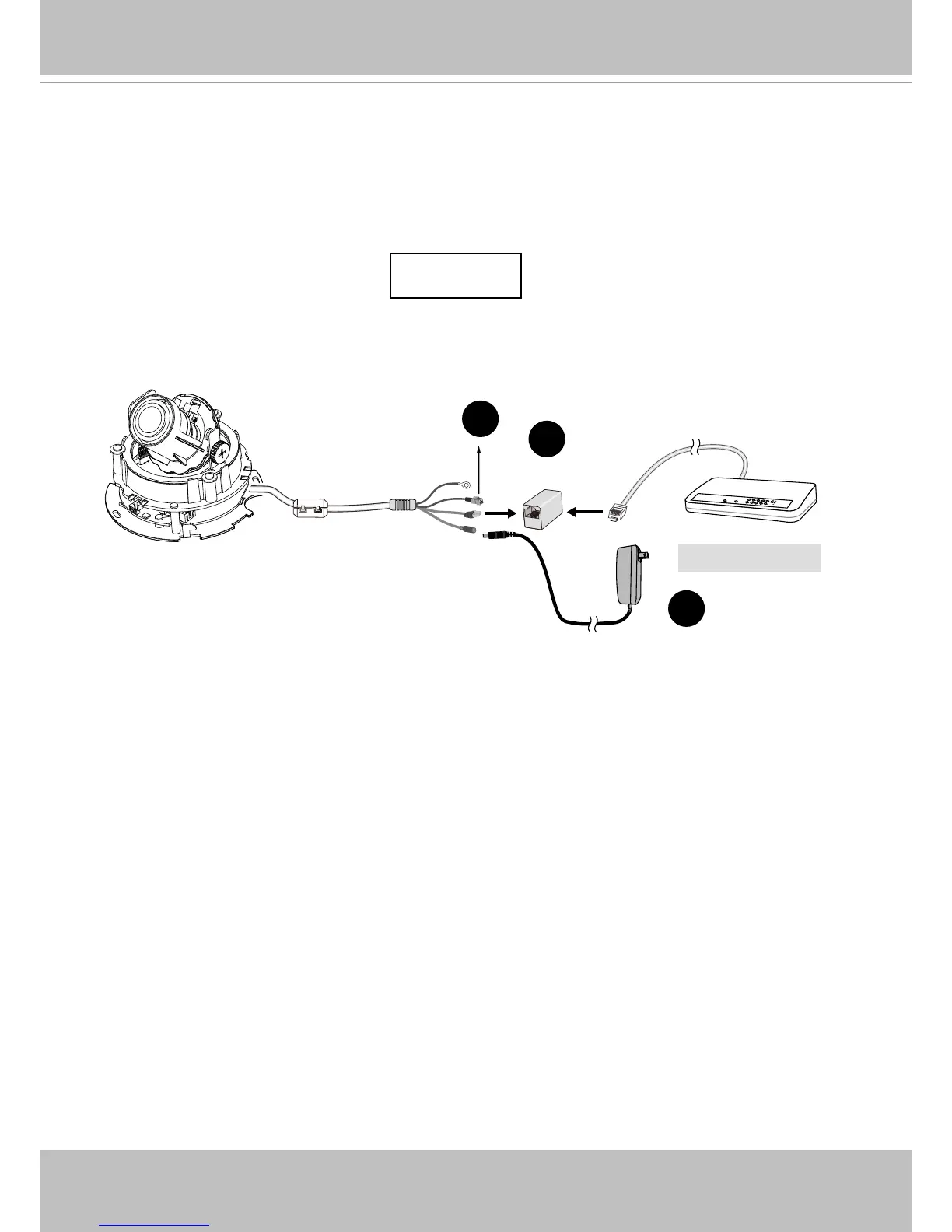

General Connection (without PoE)
This section explains how to congure the Network Camera to an Internet connection.
1. If you have external devices such as sensors and alarms, make the connection from the
general I/O terminal block.
2. Use the supplied RJ45 female/female coupler to connect the Network Camera to a switch.
3. Connect the power cable from the Network Camera to a power outlet. The DC adapter is
user-supllied.
+ : Digital input
- : Digital input
POW
ER
C
O
LL
I
S
ION
L
I
N
K
RE
CEIVE
PARTITIO
N
1
2
3
4
5
2
3
Ethernet Switch
1

Vivotek FD8131 Specifications

General

Brand	Vivotek
Model	FD8131
Category	Security Camera
Language	English
