Vivotek FD8134 User Manual

EN - 11
English

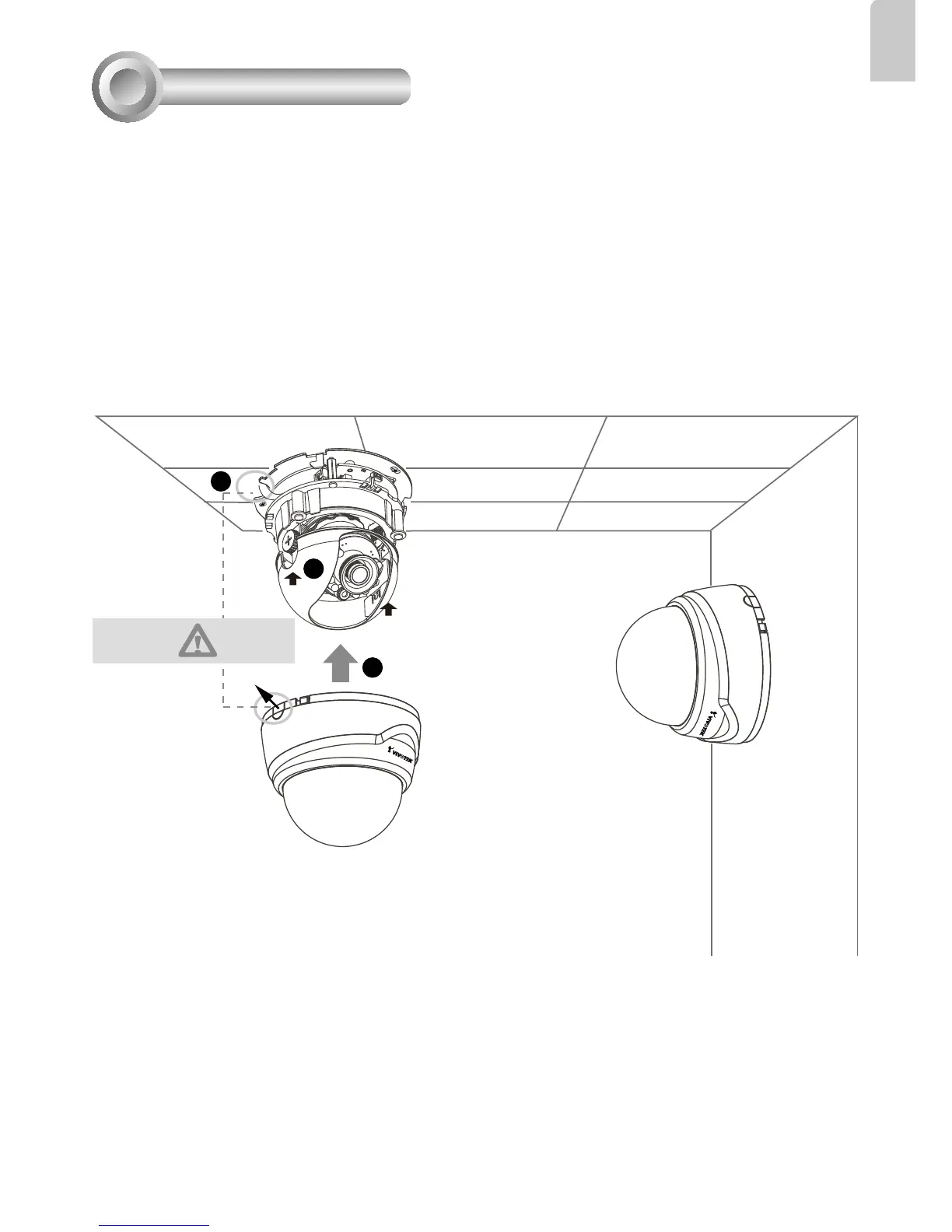

1. Align the inner side of the black cover with the notch on both sides of the lens, x the
black cover.
2. If you choose to the feed the cable through the ceiling/wall, arrange the cable neatly
through the cable hole. If you choose to feed the cable from the side, remove plate B.
3. Attach the dome cover to the camera as the direction shown below. With idiot-proof
mechanism design, the dome cover cannot be attatched if the angle does not t. You
will hear a crisp sound when the dome cover is assembled successfully.
4. Finally, make sure all parts of the camera are securely installed.
Completion
8
2
1
B
3
Be aware of the cable route!

Vivotek FD8134 Specifications

General

Minimum illumination	0.3 lx
Field of view (FOV) angle	56 °
Maximum resolution	1280 x 800 pixels
Video compression formats	H.264
Power over Ethernet (PoE)	Yes
Wi-Fi	No
