Vivotek FD8134 - Power over Ethernet (PoE)

EN - 7
English
POWER
COLLISION
LINK
RECEIV E
PARTITION
1
2
3
4
5

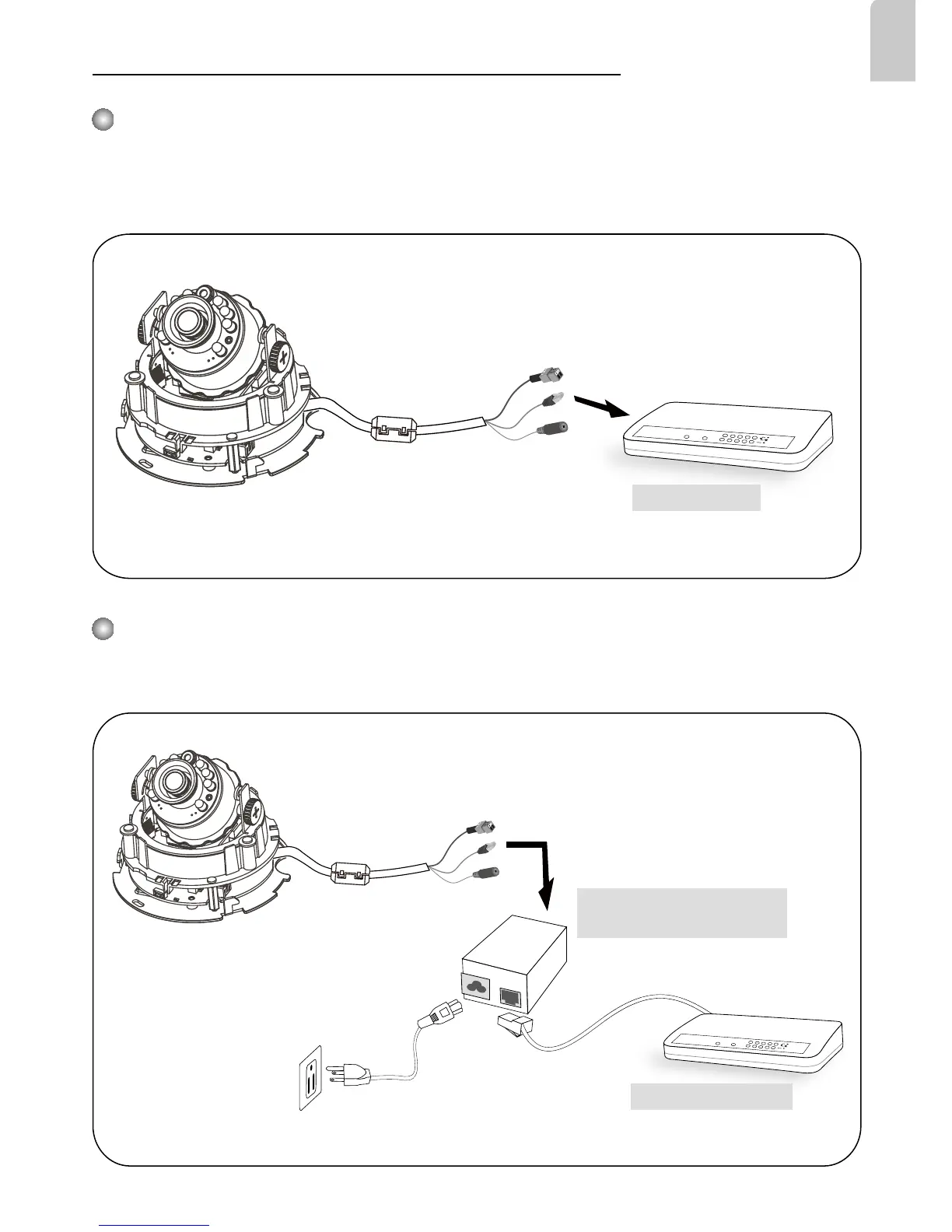

Power over Ethernet (PoE) (FD8134 only)
POW ER
COLLISION
LINK
RECEIV E
PARTITION
1
2
3
4
5
PoE Switch
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a
non-PoE switch.
PoE Power Injector
(optional)
When using a PoE-enabled switch
This Network Camera is PoE-compliant, allowing transmission of power and data via a
single Ethernet cable. Follow the below illustration to connect the Network Camera to a
PoE-enabled switch via Ethernet cable.
Non-PoE Switch
