Vivotek FD8135H Quick Installation Guide

EN - 4

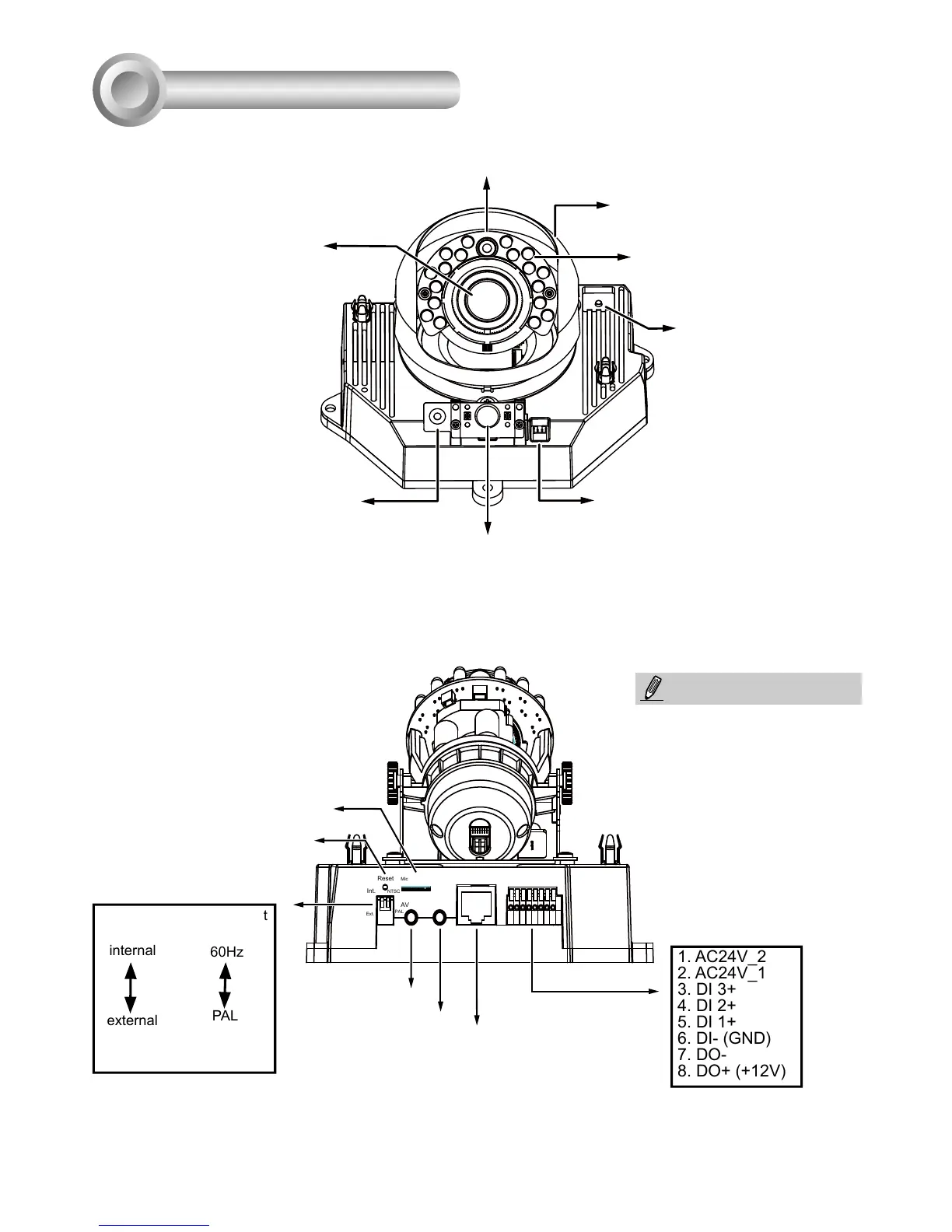

Physical Description
2
12 3 74 5 86
Ethernet
Micro SD Card
Audio InAV Out
Reset
Int.
NTSC
PAL
Ext.
Camera Front View
Camera Rear View
Light Sensor
Lens
Built-in
Microphone
PIR Sensor
Black Cover
IR LEDs
(18 units, effective up to 15m)
Reserved
Focus Assist
Button
General IO Terminal
Block
1. AC24V_2
2. AC24V_1
3. DI 3+
4. DI 2+
5. DI 1+
6. DI- (GND)
7. DO-
8. DO+ (+12V)
Microphone In
(pink)
Audio/Video Out
(green)
Jumpers
Microphone
Video Output
internal
external
NTSC
60Hz
PAL
50Hz
1 2
Reset Button
Micro SD/
SDHC Card
Slot
10/100BaseT
Ethernet
The max. output load from
pins #7 and 8 is 50mA.
NOTE:
